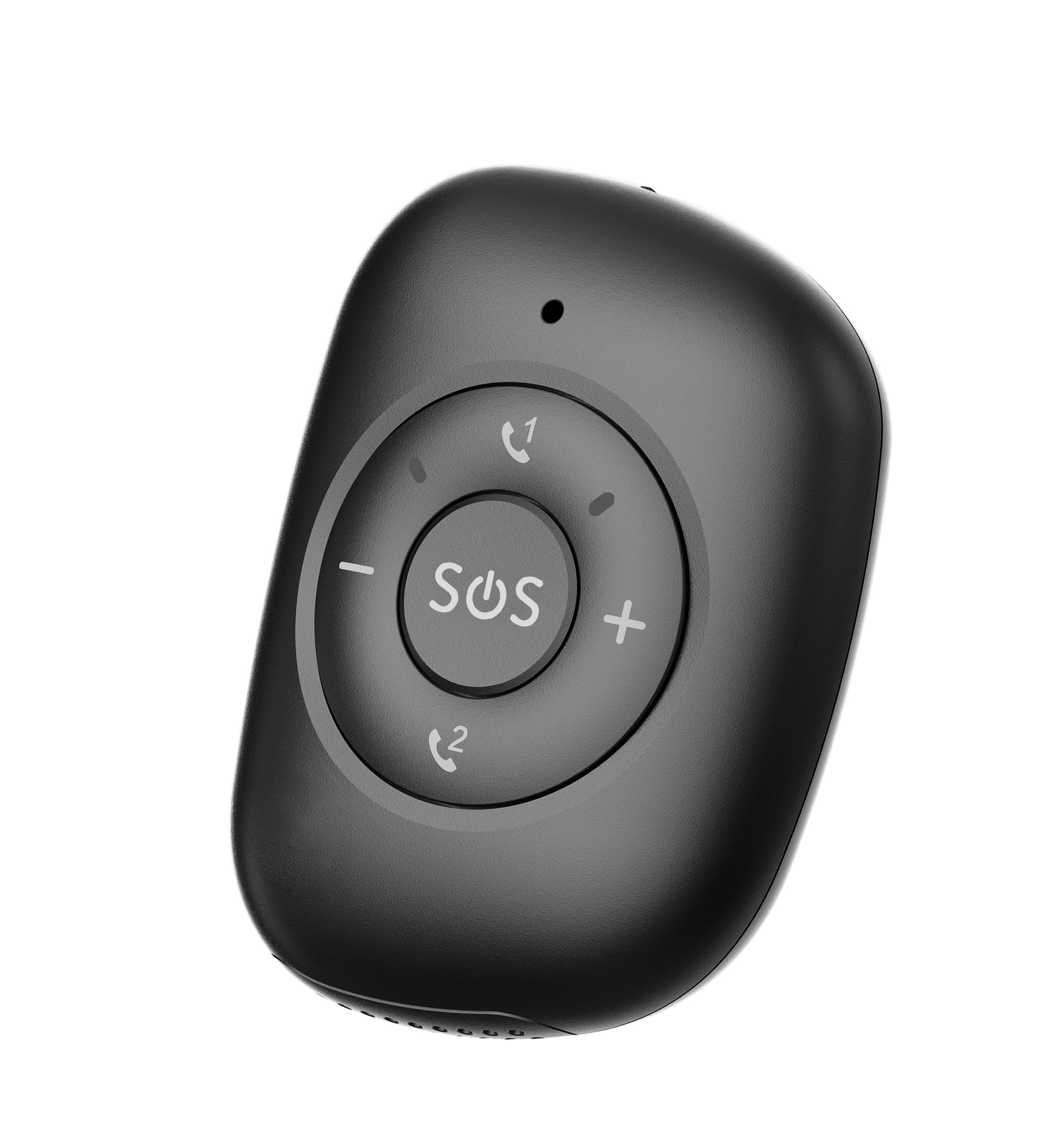

ReachFar V50

Reachfar V50 is a compact Personal Care GPS Pendant designed for seniors, children, and special-needs individuals. Operating on 4G-LTE networks, the device boasts a 1000mAh battery and an IP67 waterproof rating. It also features an SOS function, speed call, and voice volume adjustment, making it a minimalist yet essential tracking and monitoring tool.


Usage specifics
Parameters (46)
Commands (1)
ReachFar V50
Flespi parses telemetry data from your ReachFar V50 into a standardized JSON and lets you send commands to ReachFar V50 via API.

Here’s the like of JSON you get

{
    "ident": "352625333222111",
    "position.altitude": 273.61,
    "position.hdop": 0.7,
    "position.latitude": 49.069782,
    "position.longitude": 28.632826,
    "position.satellites": 18,
    "server.timestamp": 1650636570.426424,
    "timestamp": 1650636570.426424,
    "device.type.id": "ReachFar V50",
    "channel.id": 1111,
    "protocol.id": "reachfar"
    "engine.ignition.status": true
    ...
}

How to consume this nice JSON

The easiest way is to make a REST API request like this
curl -X GET  --header 'Authorization: FlespiToken XXX' 'https://flespi.io/gw/devices/<device id>/messages'

How to send commands to ReachFar V50?

You can send a specific command. Show all commands

You can also

Modify messages

Add or remove parameters, inject data from LBS and reverse-geocoding services, etc.
Learn what plugins can do

Aggregate data

Determine trips and stops, catch events, detect geofence ins/outs, and more.
Learn about flespi analytics capabilities
battery.level
number
percentage
Internal battery level
battery.low.alarm
boolean
Battery low alarm event
battery.low.status
boolean
Battery low status
channel.id
number
ID of channel that received a message
device.id
number
ID of device that received a message
device.imei
string
IMEI of the device
device.name
string
Name of device that received a message
device.type.id
number
ID of device type of device that received a message
fall.alarm.status
boolean
Fall alarm status
geofence.alarm
boolean
Geofence alarm event
geofence.status
boolean
Geofence entered status
gsm.cellid
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) base station ID
gsm.lac
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) location area code
gsm.mcc
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) country code
gsm.mnc
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) code
gsm.signal.level
number
percentage
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal strength level
gsm.sim.iccid
string
Integrated Circuit Card Id of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)
gsm.sim.imsi
string
IMSI of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)
gsm.timing.advance
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) timing advance
ident
string
Device unique identifier like serial number, IMEI, etc
message.type
string
Message type
payload.text
string
Text Payload received from device
peer
string
IP:port from which device connecting to the channel
position.accuracy
number
meters
Position data accuracy in meters
position.altitude
number
meters
Altitude value for position
position.direction
number
degrees
Heading angle at position detection moment
position.latitude
number
degrees
Latitude coordinate value
position.longitude
number
degrees
Longitude coordinate value
position.outdated
boolean
Position information is outdated
position.satellites
number
Quantity of satellites used to calculate coordinates for given position information
position.speed
number
km/h
Instant speed at position detection moment
position.valid
boolean
Is position information accurate and valid for given timestamp
protocol.id
number
ID of protocol
server.timestamp
number
seconds
Timestamp when server received a message
sos.alarm
boolean
SOS alarm triggerred
steps.count
number
The total number of steps for the day
timestamp
number
seconds
Message timestamp
turnover.number
number
Turnover times
vehicle.state
string
Vehicle state, such as moving, idling, parked etc
vehicle.state.bitmask
number
Vehicle state flags bitmask
vendor.code
string
Vendor identification string code
wifi.mac.address
string
WiFi MAC address
wifi.signal.strength
number
WiFi signal strength, RSSI
wifi.ssid
string
Wi-Fi SSID name
wristband.connected.status
boolean
Wristband connection status
wristband.takeoff.alarm
boolean
Wristband take off alarm
Properties
Custom command
custom
Send custom command to device
payload: Payload string
Restore factory settings
{"payload":"FACTORY"}
Data upload interval setting for 10 seconds
{"payload":"UPLOAD,10"}
