Lynx-fleet protocol
Carrier Lynx Fleet Push API receiver.
flespi parses the Lynx-fleet protocol messages into a JSON object with the
fields listed below in the Parameters tab.
Receive data from Carrier Lynx Fleet platform. Flespi accepts data from Lynx Push APIs – Truck Trailer International.
To receive data from your account at Lynx Fleet platform create a channel of lynx-fleet protocol at flespi.

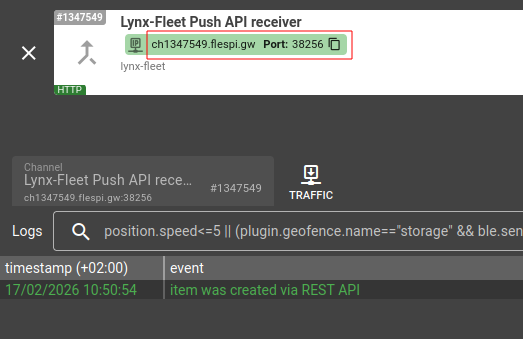

Get channel's domain:port and send it to your Carrier representative or to lynx-support@carrier.com to activate Push API.

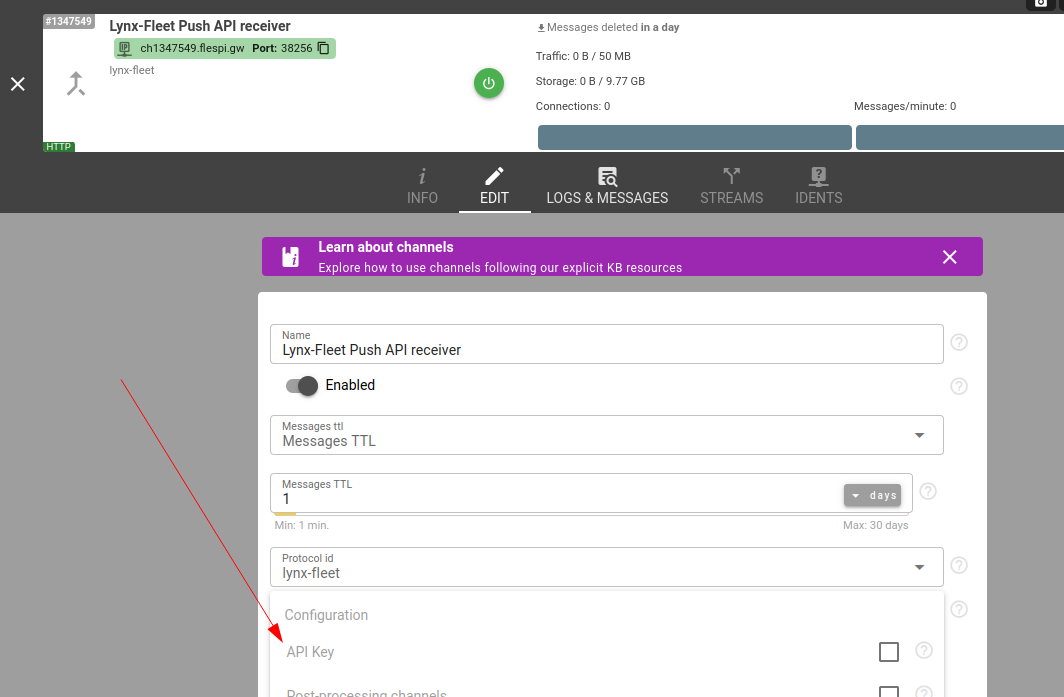

Once the data stream is enabled update the channel's configuration with API Key, it is sent by Lynx Fleet Push API in HTTP header x-lynx-api-key. You may see it in the traffic or request from Lynx Fleet support.
account.id
string
Account ID the device belongs to
assetInfo/tenantId
account.name
string
Account the device belongs to
assetInfo/tenantName
battery.voltage
number
volts
Internal battery voltage
statusInfo/deviceBatteryVoltage
ble.sensor.temperature.1
number
From temperatureInfo/bluetoothTemp1
temperatureInfo/bluetoothTemp1
ble.sensor.temperature.2
number
From temperatureInfo/bluetoothTemp2
temperatureInfo/bluetoothTemp2
ble.sensor.temperature.3
number
From temperatureInfo/bluetoothTemp3
temperatureInfo/bluetoothTemp3
ble.sensor.temperature.4
number
From temperatureInfo/bluetoothTemp4
temperatureInfo/bluetoothTemp4
ble.sensor.temperature.5
number
From temperatureInfo/bluetoothTemp5
temperatureInfo/bluetoothTemp5
ble.sensor.temperature.6
number
From temperatureInfo/bluetoothTemp6
temperatureInfo/bluetoothTemp6
channel.id
number
ID of channel that received a message
device.id
number
ID of device that received a message
device.name
string
Name of device that received a message
device.serial.number
string
Device serial number
assetInfo/deviceId
device.type.id
number
ID of device type of device that received a message
external.powersource.voltage
number
volts
External power voltage
statusInfo/deviceBatteryPowerSupply
freezer.alarm.code
string
Transport Refrigeration Unit alarm code
freezer.alarm.description
string
Transport Refrigeration Unit alarm description
freezer.alarm.response
string
Transport Refrigeration Unit alarm response type (e.g. Shut Down)
freezer.battery.current
number
amperes
Freezer battery DC current
statusInfo/batteryCurrent
freezer.battery.voltage
number
volts
Freezer battery voltage
statusInfo/batteryVoltage
freezer.control.system.type
string
Transport Refrigeration Unit control system type
assetInfo/truControlSystemType
freezer.datacold.sensor.temperature.1
number
From temperatureInfo/datacoldTemp1
temperatureInfo/datacoldTemp1
freezer.datacold.sensor.temperature.2
number
From temperatureInfo/datacoldTemp2
temperatureInfo/datacoldTemp2
freezer.datacold.sensor.temperature.3
number
From temperatureInfo/datacoldTemp3
temperatureInfo/datacoldTemp3
freezer.datacold.sensor.temperature.4
number
From temperatureInfo/datacoldTemp4
temperatureInfo/datacoldTemp4
freezer.datacold.sensor.temperature.5
number
From temperatureInfo/datacoldTemp5
temperatureInfo/datacoldTemp5
freezer.datacold.sensor.temperature.6
number
From temperatureInfo/datacoldTemp6
temperatureInfo/datacoldTemp6
freezer.electric.total
number
hours
Freezer electric total
statusInfo/switchOnHours
freezer.engine.control.mode
string
Freezer engine control mode
statusInfo/engineControlMode
freezer.engine.power.mode
string
Freezer engine power mode
statusInfo/enginePowerMode
freezer.engine.speed
string
Transport Refrigeration Unit Engine Speed (Low or High)
statusInfo/engineSpeed
freezer.engine.total
number
hours
Freezer engine total
statusInfo/engineRunHours
freezer.id
number
Unique identifier of the asset
assetInfo/assetId
freezer.model.number
string
Asset model number
assetInfo/truModelNumber
freezer.name
string
Asset name
assetInfo/assetName
freezer.power.status
boolean
Power Status
statusInfo/powerStatus
freezer.serial.number
string
Asset serial number
assetInfo/truSerialNumber
freezer.software.version
string
Transport Refrigeration Unit software version
assetInfo/truSoftwareVersion
freezer.standby.total
number
hours
The total accumulated hours that the Transport Refrigeration Unit has been running on stand by, or electric, power
statusInfo/standByHours
freezer.type
number
Freezer type
assetInfo/assetType
freezer.unit.state
number
From statusInfo/truStatus
statusInfo/truStatus
freezer.zone1.operating.mode
number
Freezer zone 1 operating mode
statusInfo/comp1OperatingMode
freezer.zone1.return.air.temperature
number
Freezer zone 1 return air temperature
temperatureInfo/returnAirTemp1
freezer.zone1.supply.air.temperature
number
Freezer zone 1 supply air temperature
temperatureInfo/supplyAirTemp1
freezer.zone1.temperature.setpoint
number
Freezer zone 1 temperature setpoint
temperatureInfo/setpointTemp1
freezer.zone2.operating.mode
number
Freezer zone 2 operating mode
statusInfo/comp2OperatingMode
freezer.zone2.return.air.temperature
number
Freezer zone 2 return air temperature
temperatureInfo/returnAirTemp2
freezer.zone2.supply.air.temperature
number
Freezer zone 2 supply air temperature
temperatureInfo/supplyAirTemp2
freezer.zone2.temperature.setpoint
number
Freezer zone 2 temperature setpoint
temperatureInfo/setpointTemp2
freezer.zone3.return.air.temperature
number
Freezer zone 3 return air temperature
temperatureInfo/returnAirTemp3
freezer.zone3.supply.air.temperature
number
Freezer zone 3 supply air temperature
temperatureInfo/supplyAirTemp3
freezer.zone3.temperature.setpoint
number
Freezer zone 3 temperature setpoint
temperatureInfo/setpointTemp3
ident
string
Device unique identifier like serial number, IMEI, etc
movement.status
boolean
Current movement state
assetInfo/status,
statusInfo/movementStatus
statusInfo/movementStatus
onewire.sensor.temperature.1
number
From temperatureInfo/oneWireTemp1
temperatureInfo/oneWireTemp1
onewire.sensor.temperature.2
number
From temperatureInfo/oneWireTemp2
temperatureInfo/oneWireTemp2
onewire.sensor.temperature.3
number
From temperatureInfo/oneWireTemp3
temperatureInfo/oneWireTemp3
onewire.sensor.temperature.4
number
From temperatureInfo/oneWireTemp4
temperatureInfo/oneWireTemp4
onewire.sensor.temperature.5
number
From temperatureInfo/oneWireTemp5
temperatureInfo/oneWireTemp5
onewire.sensor.temperature.6
number
From temperatureInfo/oneWireTemp6
temperatureInfo/oneWireTemp6
peer
string
IP:port from which device connecting to the channel
position.latitude
number
degrees
Latitude coordinate value
positionInfo/lat
position.longitude
number
degrees
Longitude coordinate value
positionInfo/long
position.speed
number
km/h
Instant speed at position detection moment
statusInfo/positionSpeed
protocol.id
number
ID of protocol
server.timestamp
number
seconds
Timestamp when server received a message
timestamp
number
seconds
Message timestamp
vehicle.plate.number
string
Vehicle plate number
assetInfo/licensePlateNumber
