Seeworld P2

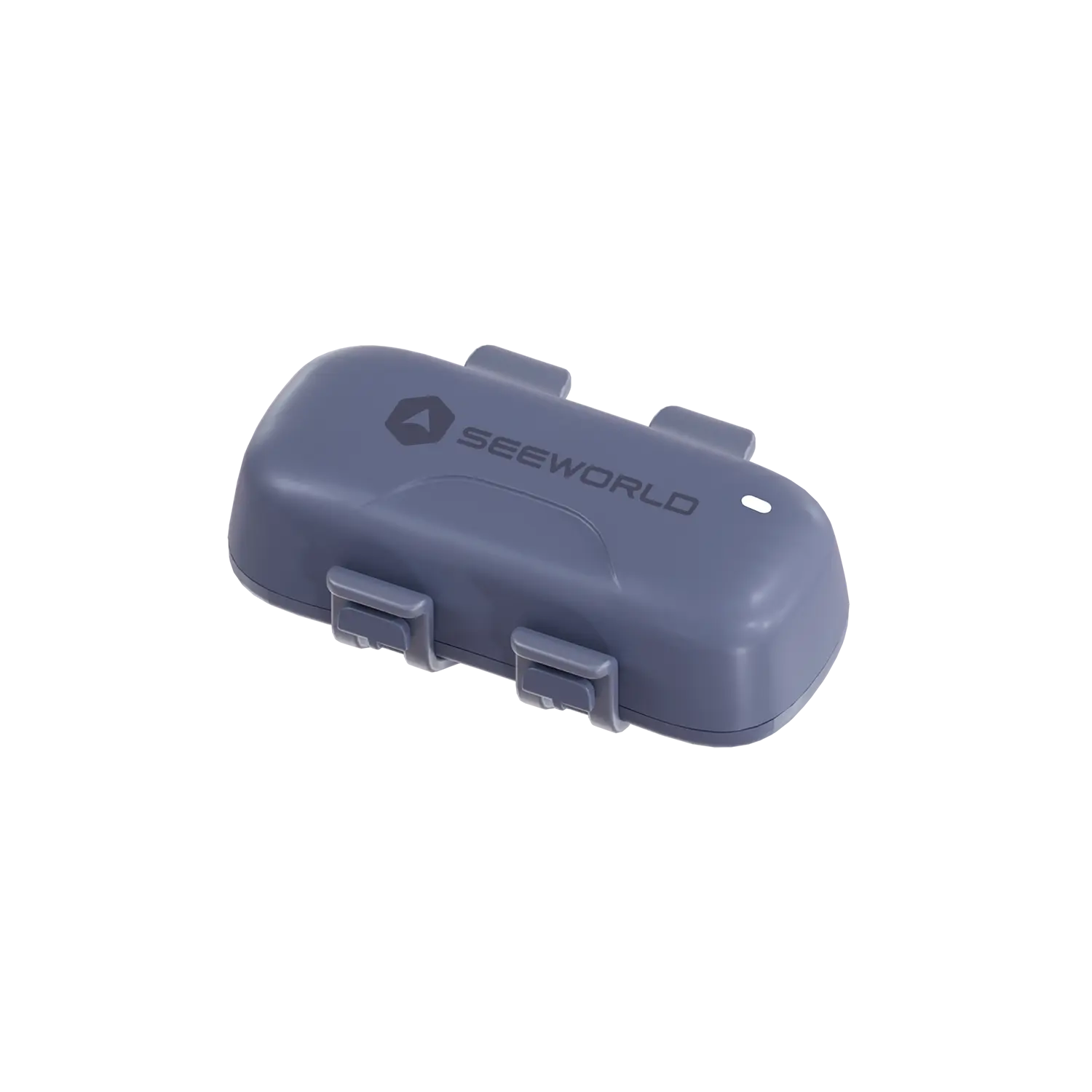

Seeworld P2 is a compact pet GPS and health tracker designed for cats and dogs weighing over 4 kg. Supporting 4G CAT 1 LTE and 2G networks, it delivers real-time location tracking using GPS, GLONASS, BDS, Wi-Fi, and LBS positioning technologies. The P2 features advanced health monitoring — tracking activity time, calorie burn, and sleep quality. Housed in an IP67-waterproof enclosure, the device weighs just 34g and is built to withstand outdoor conditions. Its built-in 800 mAh rechargeable battery provides up to 10 days of operation. Location history is stored for up to 180 days. The device works with the COOLPET mobile app (subscription required) and supports third-party software integration.

Protocol: seeworld Manufacturer: SEEWORLD Change log: seeworld

Usage specifics

Parameters (107)

Commands (2)

Here’s the like of JSON you get

{
    "ident": "352625333222111",
    "position.altitude": 273.61,
    "position.hdop": 0.7,
    "position.latitude": 49.069782,
    "position.longitude": 28.632826,
    "position.satellites": 18,
    "server.timestamp": 1650636570.426424,
    "timestamp": 1650636570.426424,
    "device.type.id": "Seeworld P2",
    "channel.id": 1111,
    "protocol.id": "seeworld"
    "engine.ignition.status": true
    ...
}

How to consume this nice JSON

The easiest way is to make a REST API request like this

curl -X GET  --header 'Authorization: FlespiToken XXX' 'https://flespi.io/gw/devices/<device id>/messages'

Explore REST API Show more ways to consume data How to connect my Seeworld P2 to flespi

How to send commands to Seeworld P2?

You can send a specific command. Show all commands

You can also

Modify messages

Add or remove parameters, inject data from LBS and reverse-geocoding services, etc.

Learn what plugins can do

Aggregate data

Determine trips and stops, catch events, detect geofence ins/outs, and more.

Learn about flespi analytics capabilities

Name

Type

Unit

Description

Sources

activity.time

number

minutes

The duration of activity

Message ID 0x0FA0

alarm.code

number

Protocol-specific alarm code number

Protocol Number 0x16

alarm.event

boolean

Alarm event triggered

Alarm 0x01 of Protocol Number 0x16

alarm.sign.bitmask

number

Alarm sign bitmask

Message ID 0x0200

battery.charging.status

boolean

Battery charging status

Extension ID: 0x00C5 of Additional info ID 0xEB,
Message ID 0x0FA0,
Protocol Number 0x12,
Protocol Number 0x13,
Protocol Number 0x16

battery.level

number

percentage

Internal battery level

Additional info ID 0xE1,
Extension ID: 0x00A8 of Additional info ID 0xEB,
Message ID 0x0FA0,
Protocol Number 0x13,
Protocol Number 0x16

battery.low.alarm

boolean

Battery low alarm event

Alarm 0x0E of Protocol Number 0x16,
Message ID 0x0200

beidou.position.satellites

number

Quantity of satellites from BEIDOU used to calculate coordinates for given position information

Additional info ID 0x33

beidou.satellites.status

boolean

BeiDou positioning system status

Message ID 0x0200

buzzer.alarm.status

boolean

Buzzer alarm status

Message ID 0x0FA0

camera.failure.alarm

boolean

Camera failure alarm event

Message ID 0x0200

can.central.lock.status

boolean

CAN central lock is locked

Message ID 0x0200

channel.id

number

ID of channel that received a message

crash.event

boolean

Crash event detected

Message ID 0x0200

cumulative.driving.alarm

boolean

Cumulative driving time in one day alarm event

Message ID 0x0200

custom

any

Any custom parameter

danger.alarm

boolean

Danger alarm event

Message ID 0x0200

defense.active.status

boolean

Defense activated status

Protocol Number 0x12,
Protocol Number 0x13,
Protocol Number 0x16

device.id

number

ID of device that received a message

device.imei

string

IMEI of the device

Message ID 0x0102,
Protocol Number 0x94

device.model

string

Device model ID string

Extension ID: 0x00A5 of Additional info ID 0xEB

device.name

string

Name of device that received a message

device.type.id

number

ID of device type of device that received a message

displacement.alarm

boolean

Displacement alarm event

Alarm 0x09 of Protocol Number 0x16

door.open.status

boolean

Door open status

Message ID 0x0200

dsm.fatigue.event

boolean

Driver fatigue event generated by Driver status monitoring system (DSM)

Message ID 0x0200

engine.blocked.status

boolean

Engine blocked status (fuel cutoff relay), true - engine is blocked, false - engine isn't blocked

Protocol Number 0x12,
Protocol Number 0x13,
Protocol Number 0x16

engine.ignition.on.duration

number

seconds

Duration when engine is on

Protocol Number 0x12

engine.ignition.status

boolean

Engine ignition or ACC status

Alarm 0xFE of Protocol Number 0x16,
Alarm 0xFF of Protocol Number 0x16,
Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x22

event.seqnum

number

Unique event sequence number

Message Sequence Number

external.powersource.voltage

number

volts

External power voltage

Protocol Number 0x12,
Protocol Number 0x13,
Protocol Number 0x16

firmware.version

string

Firmware version

Message ID 0x0102

fuel.level.alarm

boolean

Fuel level alarm triggered

Message ID 0x0200

galileo.satellites.status

boolean

Galileo positioning system status

Message ID 0x0200

geofence.alarm

boolean

Geofence alarm event

Message ID 0x0200

geofence.status

boolean

Geofence entered status

Alarm 0x04 of Protocol Number 0x16,
Alarm 0x05 of Protocol Number 0x16

glonass.satellites.status

boolean

Glonass positioning system status

Message ID 0x0200

gnss.antenna.disconnected.alarm

boolean

GNSS antenna disconnected or cut off alarm event

Message ID 0x0200

gnss.antenna.short.circuit.alarm

boolean

GNSS antenna short circuit alarm event

Message ID 0x0200

gnss.failure.alarm

boolean

GNSS receiver failure alarm event

Message ID 0x0200

gnss.realtime.status

boolean

True - GNSS realtime positioning, False - differential positioning

Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

gnss.status

boolean

GNSS receiver on/off status

Protocol Number 0x12,
Protocol Number 0x13,
Protocol Number 0x16

gps.position.satellites

number

Quantity of satellites from GPS used to calculate coordinates for given position information

Additional info ID 0x32

gps.satellites.status

boolean

GPS positioning system status

Message ID 0x0200

gsm.cellid

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) base station ID

Extension ID: 0x00A9 of Additional info ID 0xEB,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

gsm.jamming.event

boolean

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal jamming detected

Alarm 0xEF of Protocol Number 0x16

gsm.lac

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) location area code

Extension ID: 0x00A9 of Additional info ID 0xEB,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

gsm.mcc

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) country code

Extension ID: 0x00A9 of Additional info ID 0xEB,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

gsm.mnc

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) code

Extension ID: 0x00A9 of Additional info ID 0xEB,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

gsm.signal.dbm

number

dbm

Strength of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal

Extension ID: 0x00A9 of Additional info ID 0xEB

gsm.signal.level

number

percentage

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal strength level

Protocol Number 0x12,
Protocol Number 0x13,
Protocol Number 0x16

gsm.signal.quality

number

The quality (bit error rate) of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal

Additional info ID 0x30

gsm.sim.iccid

string

Integrated Circuit Card Id of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)

Additional info ID 0xCC,
Protocol Number 0x94

gsm.sim.imsi

string

IMSI of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)

Protocol Number 0x94

harsh.acceleration.event

boolean

Harsh acceleration detected

Alarm 0x26 of Protocol Number 0x16

harsh.braking.event

boolean

Harsh braking detected

Alarm 0x27 of Protocol Number 0x16

harsh.turn.event

boolean

Harsh turn event detected

Alarm 0x28 of Protocol Number 0x16

ic.card.module.failure.alarm

boolean

IC card module failure alarm event

Message ID 0x0200

ident

string

Device unique identifier like serial number, IMEI, etc

illegal.ignition.alarm

boolean

Illegal ignition alarm event

Message ID 0x0200

illegal.movement.alarm

boolean

Illegal movement alarm event

Message ID 0x0200

internal.battery.voltage

number

volts

Internal battery voltage

Extension ID: 0x002D of Additional info ID 0xEB

lcd.failure.alarm

boolean

LCD display failure alarm event

Message ID 0x0200

light.alarm

boolean

Light alarm active/not active status

Alarm 6 of Protocol Number 0x16

light.status

boolean

Light status

Message ID 0x0FA0

media

boolean

Message contain media file

media.image

object

Image file in media storage

media.video

object

Video file in media storage

message.buffered.status

boolean

Black box message

Protocol Number 0x22

movement.status

boolean

Current movement state

Message ID 0x0FA0

overspeeding.event

boolean

Overspeeding detected

Alarm 0x06 of Protocol Number 0x16,
Message ID 0x0200

peer

string

IP:port from which device connecting to the channel

position.altitude

number

meters

Altitude value for position

Additional info ID 0xCD,
Message ID 0x0200

position.direction

number

degrees

Heading angle at position detection moment

Message ID 0x0200

position.latitude

number

degrees

Latitude coordinate value

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

position.longitude

number

degrees

Longitude coordinate value

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

position.satellites

number

Quantity of satellites used to calculate coordinates for given position information

Additional info ID 0x31

position.speed

number

km/h

Instant speed at position detection moment

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

position.valid

boolean

Is position information accurate and valid for given timestamp

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

power.cut.alarm

boolean

External power cut-off alarm event

Alarm 0x02 of Protocol Number 0x16,
Message ID 0x0200

protocol.id

number

ID of protocol

protocol.number

number

Protocol number

report.code

string

Report code

report.reason

number

Transmission reason code

Protocol Number 0x22

rollover.event

boolean

Roll over event detected

Message ID 0x0200

route.alarm

boolean

Route alarm event

Message ID 0x0200

route.deviation.alarm

boolean

Route deviation alarm event

Message ID 0x0200

route.time.alarm

boolean

Route time alarm event

Message ID 0x0200

sensor.humidity

number

percentage

Humidity sensor value, i.e. relative air humidity level

Protocol Number 0x22

sensor.temperature

number

celsius

Temperature sensor value

Protocol Number 0x22

server.timestamp

number

seconds

Timestamp when server received a message

sos.alarm

boolean

SOS alarm triggerred

Message ID 0x0200

status.bitmask

number

Status bitmask

Message ID 0x0200

steps.count

number

The total number of steps for the day

Message ID 0x0FA0

theft.alarm

boolean

Theft alarm

Message ID 0x0200

time.limit.alarm

boolean

Time limit expired alarm event

Message ID 0x0200

timestamp

number

seconds

Message timestamp

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22

timestamp.key

number

Message timestamp in seconds with message sequence number appended as the value fractional part. Used to distinguish between several messages that have the same timestamp.

Message ID 0x0200,
Message ID 0x0201,
Message ID 0x0704,
Message ID 0x0FA0

total.trip.duration

number

seconds

Total trips duration

Protocol Number 0x22

tts.module.failure.alarm

boolean

Text-to-speech module failure alarm event

Message ID 0x0200

unauthorized.alarm

boolean
