Howen Hero-ME41-02

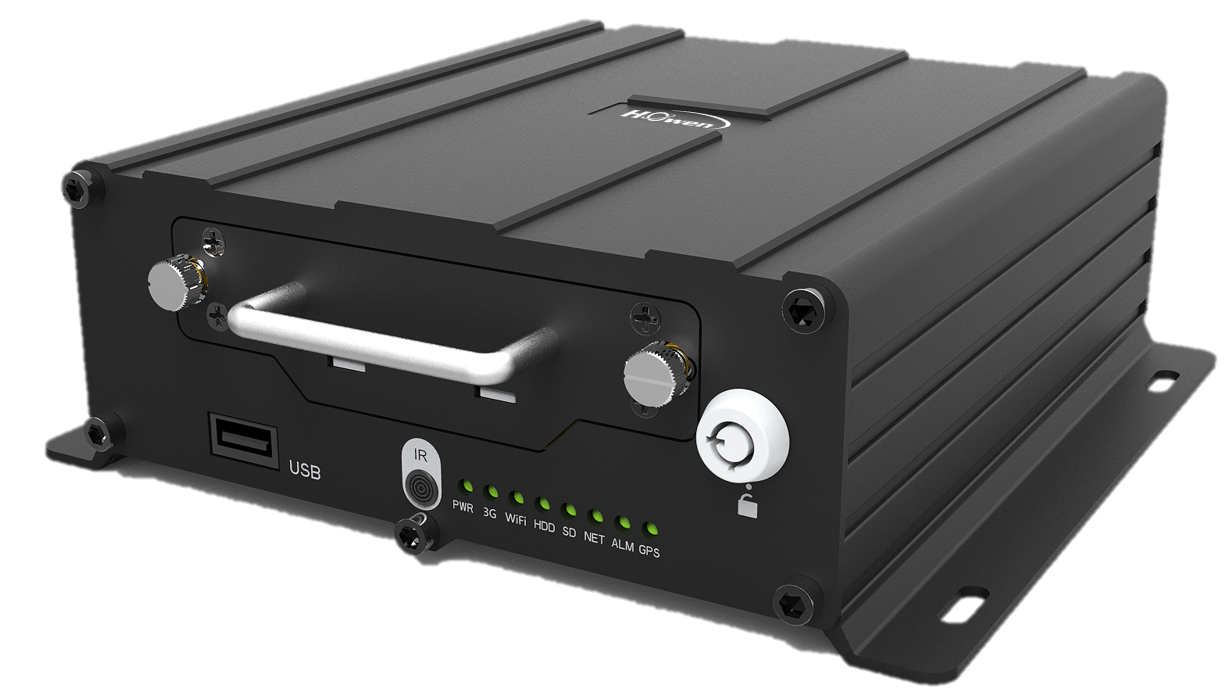

Howen Hero-ME41-02 is a 2-channel AHD SD card MDVR. The device features compact design, 2ch 1080P input, H.265/H.264, CVBS video output, 2 x RS232 port, 2 channel audio input, Wi-Fi dongle support, 1 x SIM card slot, 1 x SD card slot, max. 512GB, I/O, HA/HB, Speed alarm, etc, built-in 4G / GPS / G-sensor, 8-36V power supply.

Usage specifics
Parameters (157)
Settings (9)
Commands (7)
Howen Hero-ME41-02
Flespi parses telemetry data from your Howen Hero-ME41-02 into a standardized JSON and lets you send commands to Howen Hero-ME41-02 via API.

Here’s the like of JSON you get

{
    "ident": "352625333222111",
    "position.altitude": 273.61,
    "position.hdop": 0.7,
    "position.latitude": 49.069782,
    "position.longitude": 28.632826,
    "position.satellites": 18,
    "server.timestamp": 1650636570.426424,
    "timestamp": 1650636570.426424,
    "device.type.id": "Howen Hero-ME41-02",
    "channel.id": 1111,
    "protocol.id": "howen"
    "engine.ignition.status": true
    ...
}

How to consume this nice JSON

The easiest way is to make a REST API request like this
curl -X GET  --header 'Authorization: FlespiToken XXX' 'https://flespi.io/gw/devices/<device id>/messages'

How to send commands to Howen Hero-ME41-02?

You can send a specific command. Show all commands
You can use pre-defined settings to send instructions more conveniently. Show all settings

You can also

Modify messages

Add or remove parameters, inject data from LBS and reverse-geocoding services, etc.
Learn what plugins can do

Aggregate data

Determine trips and stops, catch events, detect geofence ins/outs, and more.
Learn about flespi analytics capabilities
absolute.acceleration
number
g
Module of accelerometer vector
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
absolute.prev.acceleration
number
g
Previous value of module of accelerometer vector
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
acceleration.alarm.avg.speed
number
Acceleration Alarm avg speed, Average speed value in a period
Service Data Event Type 12 of Message Type 0x1051
acceleration.alarm.cur.speed
number
Acceleration Alarm cur speed, Current speed value
Service Data Event Type 12 of Message Type 0x1051
acceleration.alarm.max.speed
number
Acceleration Alarm max speed, Maximum speed value during the alarm
Service Data Event Type 12 of Message Type 0x1051
acceleration.alarm.min.speed
number
Acceleration Alarm min speed, Minimum speed value during the alarm
Service Data Event Type 12 of Message Type 0x1051
acceleration.alarm.pre.speed
number
Acceleration Alarm pre speed, The speed value of one second before
Service Data Event Type 12 of Message Type 0x1051
acceleration.alarm.type
number
Acceleration Alarm Type
Service Data Event Type 12 of Message Type 0x1051
acceleration.alarm.type.name
string
Acceleration Alarm Type Name
Service Data Event Type 12 of Message Type 0x1051
accelerometer.module.status.enum
number
Protocol-specific Accelerometer module (G-sensor) status, 0-unknown, 1-normal, 2-abnormal, 3-not exist
Content Status bit3 of Message Type 0x1041
ai.alarm.id
string
DMS & ADAS: Alarm ID
Service Data Event Type 30 of Message Type 0x1051
ai.alarm.identification.name
string
DMS & ADAS: Identification name
Service Data Event Type 30 of Message Type 0x1051
ai.alarm.type
number
DMS & ADAS: AI Alarm Type
Service Data Event Type 30 of Message Type 0x1051
ai.alarm.type.name
string
DMS & ADAS: AI Alarm Type Name
Service Data Event Type 30 of Message Type 0x1051
ain
number
volts
Voltage on the analog input
Content Status bit13 of Message Type 0x1041
alarm.event
boolean
Alarm event triggered
Message Type 0x1051
alarm.id
string
Alarm ID
Message Type 0x1051
avg.acceleration
number
g
Average accelerometer value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
avg.temperature
number
celsius
Average temperature value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
bluetooth.connected.status
boolean
Bluetooth connection status
Content Status bit15 of Message Type 0x1041
brake.status
boolean
Brake status
Content Status bit2 of Message Type 0x1041
can.front.left.door.status
boolean
CAN front left door is opened
Content Status bit2 of Message Type 0x1041
can.front.right.door.status
boolean
CAN front right door is opened
Content Status bit2 of Message Type 0x1041
can.middle.left.door.status
boolean
CAN middle left door is opened
Content Status bit2 of Message Type 0x1041
can.middle.right.door.status
boolean
CAN middle right door is opened
Content Status bit2 of Message Type 0x1041
can.rear.left.door.status
boolean
CAN rear left door is opened
Content Status bit2 of Message Type 0x1041
can.rear.right.door.status
boolean
CAN rear right door is opened
Content Status bit2 of Message Type 0x1041
channel.id
number
ID of channel that received a message
device.id
number
ID of device that received a message
device.name
string
Name of device that received a message
device.temperature
number
celsius
Temperature of device
Content Status 2 bit1 of Message Type 0x1041,
Content Status bit9 of Message Type 0x1041
device.type.id
number
ID of device type of device that received a message
disk.capacity
number
MB
Disk capacity
Content Status bit7 of Message Type 0x1041
disk.id
number
Disk id
Content Status bit7 of Message Type 0x1041
disk.size
number
MB
Disk size
Content Status bit7 of Message Type 0x1041
disk.state
string
Disk state
Content Status bit7 of Message Type 0x1041
disk.type
string
Disk type
Content Status bit7 of Message Type 0x1041
door.alarm
boolean
Door alarm event
Service Data Event Type 15 of Message Type 0x1051
door.alarm.channel
number
Triggered channel of inputs for door alarm, starting from 1
Service Data Event Type 15 of Message Type 0x1051
door.alarm.place
string
Door alarm place, "front", "middle" or "back"
Service Data Event Type 15 of Message Type 0x1051
door.open.status
boolean
Door open status
Service Data Event Type 15 of Message Type 0x1051
driver.id
string
Driver identification card id
Content Status bit14 of Message Type 0x1041,
Message Type 0x1051
driver.name
string
Driver name
Content Status bit14 of Message Type 0x1041,
Message Type 0x1051
emergency.alarm
boolean
Emergency alarm event triggered
Content Status bit8 of Message Type 0x1041
engine.ignition.status
boolean
Engine ignition or ACC status
Content Status bit2 of Message Type 0x1041
engine.temperature
number
celsius
Engine temperature
Content Status bit9 of Message Type 0x1041
error.code
number
Operation error code
Message Type 0x1091
error.reason
string
Operation error reason
Message Type 0x1091
event.end.timestamp
number
seconds
Timestamp of the event end
Message Type 0x1051
event.enum
number
Protocol-specific event code
event.start.timestamp
number
seconds
Timestamp of the event start
Message Type 0x1051
event.type
number
Event Type
Message Type 0x1051
event.type.code
string
Event Type Code
Message Type 0x1051
external.powersource.voltage
number
volts
External power voltage
Service Data Event Type 28 of Message Type 0x1051
file.event.type
number
Event of file generated
Message Type 0x1092,
Service Data Event Type 1280 of Message Type 0x1051,
Service Data Event Type 1281 of Message Type 0x1051,
Service Data Event Type 1282 of Message Type 0x1051
file.event.type.name
string
Name of event of file generated
Message Type 0x1092,
Service Data Event Type 1280 of Message Type 0x1051,
Service Data Event Type 1281 of Message Type 0x1051,
Service Data Event Type 1282 of Message Type 0x1051
file.name
string
File name to be processed
Message Type 0x1020,
Message Type 0x1091,
Message Type 0x1092,
Service Data Event Type 1280 of Message Type 0x1051,
Service Data Event Type 1281 of Message Type 0x1051,
Service Data Event Type 1282 of Message Type 0x1051
file.type
string
File Type Code
Message Type 0x1091,
Message Type 0x1092,
Service Data Event Type 1280 of Message Type 0x1051,
Service Data Event Type 1281 of Message Type 0x1051,
Service Data Event Type 1282 of Message Type 0x1051
ftp.action
string
FTP action: upload/download
Message Type 0x1091
fuel.level.alarm
boolean
Fuel level alarm triggered
Content Status bit8 of Message Type 0x1041
geofence.in.alarm
boolean
Geofence in alarm event
Content Status bit8 of Message Type 0x1041
geofence.out.alarm
boolean
Geofence out alarm event
Content Status bit8 of Message Type 0x1041
gnss.state.enum
number
Protocol-specific GNSS state code. May contain information about GNSS fix status, sleep status, ON/OFF, Overcurrent/protect state.
Content Status bit3 of Message Type 0x1041
gsm.network.type
string
The type of the Mobile network the device is currently registered to
Content Status bit5 of Message Type 0x1041
gsm.signal.level
number
percentage
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal strength level
Content Status bit5 of Message Type 0x1041
gsm.status.enum
number
Protocol-specific Mobile network (GSM, 3G, 4G, LTE, 5G, ...) module status, 0-unknown, 1-normal, 2-abnormal, 3-not exist
Content Status bit3 of Message Type 0x1041
harsh.acceleration.event
boolean
Harsh acceleration detected
Service Data Event Type 24 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 24 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 24 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 24 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 24 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 24 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 24 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 24 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 24 of Service Data Event Type 9 of Message Type 0x1051
harsh.braking.event
boolean
Harsh braking detected
Service Data Event Type 25 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 25 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 25 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 25 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 25 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 25 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 25 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 25 of Service Data Event Type 9 of Message Type 0x1051
high.temperature.alarm
boolean
High temperature alarm
Service Data Event Type 9 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 9 of Message Type 0x1051
ibutton.code
string
Hexadecimal code of connected iButton
Content Status bit11 of Message Type 0x1041
ident
string
Device unique identifier like serial number, IMEI, etc
idle.event
boolean
Idle detected
Service Data Event Type 32 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 9 of Message Type 0x1051
idle.status.duration
number
seconds
Duration of vehicle being in the last idling state
Service Data Event Type 32 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 32 of Service Data Event Type 9 of Message Type 0x1051
impact.acceleration
number
g
Impact accelerometer value
Content Status bit1 of Message Type 0x1041
input.output.alarm.event
boolean
Input/output port binding alarm event triggered
Content Status bit8 of Message Type 0x1041
inside.vehicle.humidity
number
percentage
Humidity sensor inside vehicle value, i.e. relative air humidity level
Content Status bit9 of Message Type 0x1041
inside.vehicle.temperature
number
celsius
Temperature inside vehicle
Content Status bit9 of Message Type 0x1041
line.enter.alarm
boolean
Line enter alarm
Content Status bit8 of Message Type 0x1041
line.exit.alarm
boolean
Line exit alarm
Content Status bit8 of Message Type 0x1041
low.speed.event
boolean
Low speed detected
Content Status bit8 of Message Type 0x1041,
Service Data Event Type 26 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 26 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 26 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 26 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 26 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 26 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 26 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 26 of Service Data Event Type 9 of Message Type 0x1051,
Service Data Event Type 6 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 6 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 6 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 6 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 6 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 6 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 6 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 6 of Service Data Event Type 9 of Message Type 0x1051
low.temperature.alarm
boolean
Low temperature alarm
Service Data Event Type 8 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 9 of Message Type 0x1051
max.acceleration
number
g
Maximum accelerometer value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
max.temperature
number
celsius
Max temperature value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
media
boolean
Message contain media file
media.image
object
Image file in media storage
media.video
object
Video file in media storage
message.buffered.status
boolean
Black box message
Service Data Event Type 22 of Message Type 0x1051
min.acceleration
number
g
Minimum accelerometer value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
min.temperature
number
celsius
Min temperature value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
motion.alarm
boolean
Motion alarm
Content Status bit8 of Message Type 0x1041
move.backward.status
boolean
Move backward status
Content Status bit2 of Message Type 0x1041
move.forward.status
boolean
Move forward status
Content Status bit2 of Message Type 0x1041
network.ip.address
string
IP address of the network
Content Status bit6 of Message Type 0x1041
network.ip.gateway
string
IP address of the network gateway
Content Status bit6 of Message Type 0x1041
network.ip.mask
string
IP subnet mask
Content Status bit6 of Message Type 0x1041
outside.vehicle.humidity
number
percentage
Humidity sensor outside vehicle value, i.e. relative air humidity level
Content Status bit9 of Message Type 0x1041
outside.vehicle.temperature
number
celsius
Temperature outside vehicle
Content Status bit9 of Message Type 0x1041
overspeeding.event
boolean
Overspeeding detected
Content Status bit8 of Message Type 0x1041,
Service Data Event Type 27 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 27 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 27 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 27 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 27 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 27 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 27 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 27 of Service Data Event Type 9 of Message Type 0x1051,
Service Data Event Type 7 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 7 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 7 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 7 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 7 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 7 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 7 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 7 of Service Data Event Type 9 of Message Type 0x1051
overtime.parking.alarm
boolean
Over time Parking
Content Status bit8 of Message Type 0x1041,
Service Data Event Type 11 of Message Type 0x1051
parking.time
number
seconds
Parking time
Service Data Event Type 11 of Message Type 0x1051
peer
string
IP:port from which device connecting to the channel
position.accuracy
number
meters
Position data accuracy in meters
Content Status bit0 of Message Type 0x1041
position.altitude
number
meters
Altitude value for position
Content Status bit0 of Message Type 0x1041
position.avg.speed
number
km/h
Average speed value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
position.direction
number
degrees
Heading angle at position detection moment
Content Status bit0 of Message Type 0x1041
position.fix.enum
number
Protocol-specific position fix type
Content Status bit0 of Message Type 0x1041
position.latitude
number
degrees
Latitude coordinate value
Content Status bit0 of Message Type 0x1041
position.longitude
number
degrees
Longitude coordinate value
Content Status bit0 of Message Type 0x1041
position.max.speed
number
km/h
Maximum speed value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
position.min.speed
number
km/h
Minimum speed value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
position.prev.speed
number
km/h
Previous value of the speed
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
position.satellites
number
Quantity of satellites used to calculate coordinates for given position information
Content Status bit0 of Message Type 0x1041
position.speed
number
km/h
Instant speed at position detection moment
Content Status bit0 of Message Type 0x1041,
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
position.speed.source
string
Speed source
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
position.timestamp
number
seconds
Timestamp when coordinates where calculated
Content Status bit0 of Message Type 0x1041
position.valid
boolean
Is position information accurate and valid for given timestamp
Content Status bit0 of Message Type 0x1041
protocol.id
number
ID of protocol
recording.status
boolean
Recording status
Content Status bit3 of Message Type 0x1041
sensor.prev.temperature
number
celsius
Previous value of the temperature sensor
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
sensor.temperature
number
celsius
Temperature sensor value
Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Message Type 0x1051
server.timestamp
number
seconds
Timestamp when server received a message
storage.abnormal.enum
number
Storage Abnormal Status
Service Data Event Type 16 of Message Type 0x1051
storage.abnormal.enum.name
string
Storage Abnormal Status Name
Service Data Event Type 16 of Message Type 0x1051
storage.name
string
Storage Name
Service Data Event Type 16 of Message Type 0x1051
swipe.card.id
string
Swipe Card ID or Number
Service Data Event Type 22 of Message Type 0x1051
swipe.card.status
boolean
Swipe Card status, onboard/offboard or login/logout
Service Data Event Type 22 of Message Type 0x1051
swipe.card.technology
string
Swipe Card technology
Service Data Event Type 22 of Message Type 0x1051
swipe.card.type
string
Swipe Card type, Driver or Student
Service Data Event Type 22 of Message Type 0x1051
temperature.alarm
boolean
Temperature value is outside of predefined range
Service Data Event Type 8 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 8 of Service Data Event Type 9 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 24 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 25 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 26 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 27 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 32 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 6 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 7 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 8 of Message Type 0x1051,
Service Data Event Type 9 of Service Data Event Type 9 of Message Type 0x1051
tilt.acceleration
number
g
Tilt accelerometer value
Content Status bit1 of Message Type 0x1041
timestamp
number
seconds
Message timestamp
Message Type 0x0011,
Message Type 0x1041,
Message Type 0x1051
today.vehicle.mileage
number
km
Total calculated mileage for today
Content Status bit10 of Message Type 0x1041
trip.average.speed
number
km/h
Average speed of the trip
Service Data Event Type 41 of Message Type 0x1051,
Service Data Event Type 43 of Message Type 0x1051,
Service Data Event Type 768 of Message Type 0x1051
trip.driver.id
string
Driver identification card id for the trip
Service Data Event Type 41 of Message Type 0x1051,
Service Data Event Type 43 of Message Type 0x1051,
Service Data Event Type 768 of Message Type 0x1051
trip.duration
number
seconds
Trip duration
Service Data Event Type 41 of Message Type 0x1051,
Service Data Event Type 43 of Message Type 0x1051,
Service Data Event Type 768 of Message Type 0x1051
trip.max.speed
number
km/h
Maximum speed of the trip
Service Data Event Type 41 of Message Type 0x1051,
Service Data Event Type 43 of Message Type 0x1051,
Service Data Event Type 768 of Message Type 0x1051
trip.mileage
number
km
Distance driven since engine start
Service Data Event Type 41 of Message Type 0x1051,
Service Data Event Type 43 of Message Type 0x1051,
Service Data Event Type 768 of Message Type 0x1051
trip.start.latitude
number
degrees
Trip start latitude coordinate value
Service Data Event Type 41 of Message Type 0x1051,
Service Data Event Type 43 of Message Type 0x1051,
Service Data Event Type 768 of Message Type 0x1051
trip.start.longitude
number
degrees
Trip start longitude coordinate value
Service Data Event Type 41 of Message Type 0x1051,
Service Data Event Type 43 of Message Type 0x1051,
Service Data Event Type 768 of Message Type 0x1051
turn.left.status
boolean
Turn left status
Content Status bit2 of Message Type 0x1041
turn.right.status
boolean
Turn right status
Content Status bit2 of Message Type 0x1041
upgrade.status.name
string
Upgrade status
Message Type 0x1052
upgrade.type
string
Upgrade type
Message Type 0x1052
vehicle.mileage
number
km
Total calculated mileage
Content Status bit10 of Message Type 0x1041
vibration.alarm
boolean
Vibration alarm event
Content Status bit8 of Message Type 0x1041
video.blind.alarm
boolean
Video blind alarm event per channel
Content Status bit8 of Message Type 0x1041
video.channel
number
Video channel number
Message Type 0x0011,
Message Type 0x1020,
Service Data Event Type 1 of Message Type 0x1051,
Service Data Event Type 1280 of Message Type 0x1051,
Service Data Event Type 1281 of Message Type 0x1051,
Service Data Event Type 1282 of Message Type 0x1051,
Service Data Event Type 2 of Message Type 0x1051,
Service Data Event Type 4 of Message Type 0x1051,
Service Data Event Type 5 of Message Type 0x1051
video.duration
number
seconds
Video file duration
Service Data Event Type 1280 of Message Type 0x1051,
Service Data Event Type 1281 of Message Type 0x1051,
Service Data Event Type 1282 of Message Type 0x1051
video.loss.alarm
boolean
Video loss alarm event per channel
Content Status bit8 of Message Type 0x1041
voltage.alarm.enum
number
Voltage Alarm Status
Service Data Event Type 28 of Message Type 0x1051
voltage.alarm.enum.name
string
Voltage Alarm Status Name
Service Data Event Type 28 of Message Type 0x1051
wifi.module.status.enum
number
Protocol-specific Wi-Fi module status, 0-unknown, 1-normal, 2-abnormal, 3-not exist
Content Status bit3 of Message Type 0x1041
wifi.signal.level
number
percentage
WiFi signal level, percentage
Content Status bit6 of Message Type 0x1041
wifi.ssid
string
Wi-Fi SSID name
Content Status bit6 of Message Type 0x1041
x.acceleration
number
g
Accelerometer value X
Content Status bit1 of Message Type 0x1041
y.acceleration
number
g
Accelerometer value Y
Content Status bit1 of Message Type 0x1041
z.acceleration
number
g
Accelerometer value Z
Content Status bit1 of Message Type 0x1041
Properties
Clock
clock
Clock setup
switch: Calibration mode
timezone: Time zone
Mobile Network
dialup
Mobile Network Configuration
apn: APN
type: Type
user: User Name
bakApn: Backup APN
passwd: Password
switch: Switch
SmsService: Service number
servercode: Server Code
Device Info
info
Device Information
version: Version
device_model: Device model
Video main stream
main_stream
chn0: Channel 1
chn1: Channel 2
chn2: Channel 3
chn3: Channel 4
chn4: Channel 5
chn5: Channel 6
chn6: Channel 7
chn7: Channel 8
Restart Device
restart
Restart Device
Send Short Message
send_short_message
Send Short Message
message: Message
Central Server
server
Central Server setup
server0: Server 1
server1: Server 2
server2: Server 3
server3: Server 4
Video sub stream
sub_stream
chn0: Channel 1
chn1: Channel 2
chn2: Channel 3
chn3: Channel 4
chn4: Channel 5
chn5: Channel 6
chn6: Channel 7
chn7: Channel 8
Video parameters
video_params
RecMode: Recording Mode
SysNorm: Color standard
AOVolume: Audio output volume
PackTime: Pack Time
AutoCover: Video overwrite
CameraType: Camera type
EncodeType: Encode type
DisplayType: Display type
SubEncodeType: Sub encode type
Properties
Custom Command
custom
Custom Command
payload: Payload
message_type: Message Type
Custom SMS command
custom_sms
Send custom command to device via SMS
command: Command in text
Restart device
{"command":"*REBOOT;"}
Playback video
playback_video
Start video playback from device
from: Time from
audio: Audio
speed: Upload speed
frames: Video frames
channel: Camera channel
duration: Duration
Request video
request_video
Request video file upload from device
from: Time from
audio: Audio
speed: Upload speed
frames: Video frames
channel: Camera channel
duration: Duration
Start videostream
start_videostream
Start videostream
audio: Audio
channel: Camera channel
streamtype: Stream type
mediastream: Mediastream type
Take a photo
take_photo
Take a photo
channel: Camera channel
Video timeline
video_timeline
Request timeline with intervals of available video data
to: Timeline to
from: Timeline from
filter_channels: Channels filter
