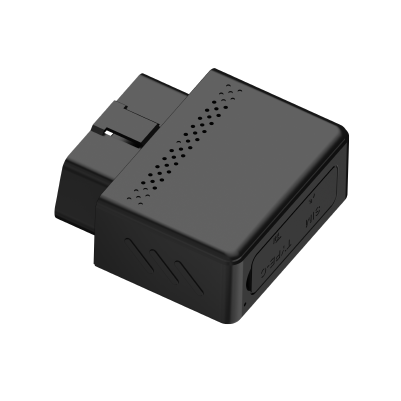

The VL512 is a vehicle 4G LTE OBDII tracker with 2G GSM fallback perfect for fleet management. It provides effortless installation, GPS+BDS positioning, multiple alerts for vehicle monitoring, and a remote listen-in feature. The device supports LTE Cat 1 + GSM networks, withstands extreme temperatures, and has a compact design with a built-in industrial-grade battery.
Protocol: concox Manufacturer: Jimi IoT (Concox) Change log: concox
Usage specifics
Parameters (298)
Commands (1)
Jimi IoT (Concox) JM-VL512
Flespi parses telemetry data from your Jimi IoT (Concox) JM-VL512 into a standardized JSON and lets you send commands to Jimi IoT (Concox) JM-VL512 via API.

Here’s the like of JSON you get

{
    "ident": "352625333222111",
    "position.altitude": 273.61,
    "position.hdop": 0.7,
    "position.latitude": 49.069782,
    "position.longitude": 28.632826,
    "position.satellites": 18,
    "server.timestamp": 1650636570.426424,
    "timestamp": 1650636570.426424,
    "device.type.id": "Jimi IoT (Concox) JM-VL512",
    "channel.id": 1111,
    "protocol.id": "concox"
    "engine.ignition.status": true
    ...
}

How to consume this nice JSON

The easiest way is to make a REST API request like this
curl -X GET  --header 'Authorization: FlespiToken XXX' 'https://flespi.io/gw/devices/<device id>/messages'
Explore REST API Show more ways to consume dataHow to connect my Jimi IoT (Concox) JM-VL512 to flespi

How to send commands to Jimi IoT (Concox) JM-VL512?

You can send a specific command. Show all commands

You can also

Modify messages

Add or remove parameters, inject data from LBS and reverse-geocoding services, etc.
Learn what plugins can do

Aggregate data

Determine trips and stops, catch events, detect geofence ins/outs, and more.
Learn about flespi analytics capabilities
Name
Type
Unit
Description
Sources
abnormal.alarm
boolean
Abnormal alarm
Protocol Number 0x33
abnormal.tier.pressure.alarm
boolean
Abnormal tire pressure alarm
Message ID 0x0900
abrupt.lane.switch.alarm
boolean
Abrupt lane switch alarm event
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
acc.off.alarm
boolean
ACC OFF alarm event
Extension ID 0xE8 of Message ID 0x0200
acc.on.alarm
boolean
ACC ON alarm event
Extension ID 0xE8 of Message ID 0x0200
ain
number
volts
Voltage on the analog input
Extension ID 0x2B of Message ID 0x0200,
Protocol Number 0xF2
airplane.mode.alarm
boolean
Airplane mode enabled alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
alarm.button.pressed.event
boolean
Button to upload alarm message to the platform was pressed
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
alarm.code
number
Protocol-specific alarm code number
Message ID 0x0900,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
alarm.code.description
string
Description of the alarm code
Message ID 0x0900
alarm.event
boolean
Alarm event triggered
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
antitheft.event
boolean
Antitheft event triggered
Extension ID 0xE8 of Message ID 0x0200
automatic.cruise.status
boolean
Automatic cruise
Protocol Number 0x98
average.fuel.consumption
number
liters/100km
Average fuel consumption
Message ID 0x0900
battery.charging.current
number
Indicates the charging current.
Protocol Number 0xF1
battery.charging.status
boolean
Battery charging status
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x23,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x36,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5,
Protocol Number 0xF1
battery.current
number
amperes
Battery current
Protocol Number 0x98
battery.fault.status
boolean
Battery fault status
Protocol Number 0x98
battery.level
number
percentage
Internal battery level
Extension ID 0xE4 of Message ID 0x0200,
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0300,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x23,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x98,
Protocol Number 0xA4,
Protocol Number 0xA5
battery.low.alarm
boolean
Battery low alarm event
Message ID 0x0200,
Message ID 0x0801,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x33,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
battery.low.status
boolean
Battery low status
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x33,
Protocol Number 0x70
battery.state
string
Battery state
Protocol Number 0x36
battery.temperature
number
celsius
Battery temperature
Protocol Number 0x98,
Protocol Number 0xF1
battery.voltage
number
volts
Internal battery voltage
Extension ID 0xE4 of Message ID 0x0200,
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0300,
Protocol Number 0x23,
Protocol Number 0x70,
Protocol Number 0x8E,
Protocol Number 0x94 with Information Type 0x06,
Protocol Number 0x98
beidou.position.satellites
number
Quantity of satellites from BEIDOU used to calculate coordinates for given position information
Protocol Number 0x94 with Information Type 0x09
beidou.satellites.status
boolean
BeiDou positioning system status
Message ID 0x0200,
Message ID 0x0801,
Message ID 0x0900
ble.beacons
array
Array with all detected BLE beacons data objects. Each object contain list of associated parameters sent by appropriate beacon. Standard parameter names used: *id* - beacon identification string. Usually it is beacon's UUID or MAC-address *local_name* - Beacons's Local Name *rssi* - BLE signal level. Units = dBm *battery.voltage* - Beacon's battery voltage. Units = volts *battery.level* - Beacon's battery level. Units = percentage *temperature* - Beacon's temperature. Units = celsius
Protocol Number 0xF1
bluetooth.connected.status
boolean
Bluetooth connection status
Protocol Number 0xF1
bluetooth.key
string
Bluetooth key
Protocol Number 0x94 with Information Type 0x23
bluetooth.mac.address
string
Bluetooth MAC address
Protocol Number 0x94 with Information Type 0x21
bluetooth.peripheral.state
number
Indicates the connection status of Bluetooth peripherals
Protocol Number 0xF1
boot.reason
number
Boot reason
Protocol Number 0x70
brake.handle.fault.status
boolean
Brake handle fault status
Protocol Number 0x98
braking.status
boolean
Braking status
Protocol Number 0x98
camera.failure.alarm
boolean
Camera failure alarm event
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0200,
Message ID 0x0801
can.accelerator.pedal.position
number
percentage
Accelerator pedal position read from CAN, index 1 - sensor D, index 2 - sensor E, etc
Message ID 0x0900
can.air.condition.status
boolean
CAN air conditioning is on
Extension ID 0x25 of Message ID 0x0200,
Message ID 0x0900
can.average.speed
number
km/h
Vehicle average speed, read from CAN
Protocol Number 0x8E
can.battery.voltage
number
volts
Battery voltage read from CAN
Message ID 0x0900
can.brake.pedal.status
boolean
Footbrake pedal is depressed status, read from CAN
Protocol Number 0x8E
can.central.lock.status
boolean
CAN central lock is locked
Message ID 0x0200,
Message ID 0x0801,
Protocol Number 0x8E
can.dtc
array
Diagnostic trouble code array read from CAN
Message ID 0x0900
can.dtc.number
number
Number of diagnostic trouble codes
Message ID 0x0900
can.engine.coolant.temperature
number
celsius
Engine coolant temperature read from CAN
Message ID 0x0900
can.engine.ignition.status
boolean
CAN engine ignition status
Protocol Number 0x8E
can.engine.oil.pressure
number
kPa
CAN Engine oil pressure
Message ID 0x0900
can.engine.oil.temperature
number
celsius
Engine oil temperature read from CAN
Message ID 0x0900
can.engine.rpm
number
rpm
Engine RPM read from CAN
Message ID 0x0900,
Protocol Number 0x8E
can.engine.run.time
number
seconds
Run time since engine start read from CAN
Message ID 0x0900
can.engine.status
boolean
Engine is running status, read from CAN
Protocol Number 0x8E
can.front.left.door.status
boolean
CAN front left door is opened
Protocol Number 0x8E
can.front.right.door.status
boolean
CAN front right door is opened
Protocol Number 0x8E
can.fuel.consumed
number
liters
Fuel volume totally consumed by vehicle read from CAN
Message ID 0x0900
can.fuel.consumption
number
liters/h
Engine fuel rate read from CAN
Message ID 0x0900
can.fuel.consumption.distance
number
liters/100km
Fuel consumption read from CAN
Message ID 0x0900,
Protocol Number 0x8E
can.fuel.level
number
percentage
Fuel level in tank read from CAN
Message ID 0x0900
can.fuel.temperature
number
celsius
Fuel temperature read from CAN
Message ID 0x0900
can.fuel.volume
number
liters
CAN fuel volume
Message ID 0x0900,
Protocol Number 0x8E
can.handbrake.indicator.status
boolean
Status of handbrake system indicator, read from CAN
Message ID 0x0900
can.handbrake.status
boolean
CAN handbrake is pulled up
Protocol Number 0x8E
can.high.beam.status
boolean
CAN high beams are on
Extension ID 0x25 of Message ID 0x0200
can.hood.status
boolean
CAN hood is opened
Protocol Number 0x8E
can.intake.air.temperature
number
celsius
Intake air temperature
Message ID 0x0900
can.intake.map
number
kPa
Intake manifold absolute pressure
Message ID 0x0900
can.left.front.tire.pressure.status
boolean
Left front tire pressure is normal
Protocol Number 0x8E
can.left.rear.tire.pressure.status
boolean
Left rear tire pressure is normal
Protocol Number 0x8E
can.left.turn.light.status
boolean
Left turn light is ON status, read from CAN
Protocol Number 0x8E
can.low.beam.status
boolean
CAN low beams are on
Extension ID 0x25 of Message ID 0x0200
can.maf.air.flow.rate
number
g/sec
MAF air flow rate read from CAN
Message ID 0x0900
can.neutral.gear.status
boolean
CAN neutral gear is on
Extension ID 0x25 of Message ID 0x0200
can.pedal.brake.status
boolean
CAN brake pedal pressed
Extension ID 0x25 of Message ID 0x0200,
Message ID 0x0900
can.pedal.clutch.status
boolean
CAN clutch pedal pressed
Extension ID 0x25 of Message ID 0x0200
can.rear.fog.lights.status
boolean
CAN rear fog lights are on
Extension ID 0x25 of Message ID 0x0200
can.rear.left.door.status
boolean
CAN rear left door is opened
Protocol Number 0x8E
can.rear.right.door.status
boolean
CAN rear right door is opened
Protocol Number 0x8E
can.relative.throttle.position
number
percentage
Relative throttle position read from CAN
Message ID 0x0900
can.remaining.fuel.level
number
percentage
Remaining Fuel from CAN
Message ID 0x0900
can.reverse.gear.status
boolean
CAN reverse gear is on
Extension ID 0x25 of Message ID 0x0200
can.right.front.tire.pressure.status
boolean
Right front tire pressure is normal
Protocol Number 0x8E
can.right.rear.tire.pressure.status
boolean
Right rear tire pressure is normal
Protocol Number 0x8E
can.right.turn.light.status
boolean
Right turn light is ON status, read from CAN
Protocol Number 0x8E
can.small.light.status
boolean
Small light is ON status, read from CAN
Protocol Number 0x8E
can.throttle.position
number
percentage
Absolute throttle position for corresponding throttle position sensor read from CAN
Message ID 0x0900
can.trunk.status
boolean
CAN trunk is opened
Protocol Number 0x8E
can.vehicle.mileage
number
km
Total vehicle mileage read from CAN
Message ID 0x0900,
Protocol Number 0x8E
can.vehicle.speed
number
km/h
Vehicle speed read from CAN
Message ID 0x0900
channel.id
number
ID of channel that received a message
charger.insert.event
boolean
Charger is inserted alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
charging.status
boolean
Charging status
Protocol Number 0x23,
Protocol Number 0x98
collision.factor
number
Collision factor
Protocol Number 0x39
controller.fault.status
boolean
controller fault status
Protocol Number 0x98
counter.trips
number
Travel Number. Accumulated after each travel ends
Message ID 0x0900
cover.open.alarm
boolean
Open cover alarm
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
crash.event
boolean
Crash event detected
Message ID 0x0200,
Message ID 0x0801,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
cruise.control.status
boolean
Cruise control status
Protocol Number 0x98
cumulative.driving.alarm
boolean
Cumulative driving time in one day alarm event
Message ID 0x0200,
Message ID 0x0801
danger.alarm
boolean
Danger alarm event
Message ID 0x0200,
Message ID 0x0801
dashboard.controller.fault.status
boolean
Dashboard controller fault status
Protocol Number 0x98
defense.active.status
boolean
Defense activated status
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x23,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x36,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5,
Protocol Number 0xF1
device.id
number
ID of device that received a message
device.model
string
Device model ID string
Message ID 0x0100
device.name
string
Name of device that received a message
device.type.id
number
ID of device type of device that received a message
din
number
Digital inputs bitmask
Protocol Number 0x94 with Information Type 0x05
disassemble.alarm
boolean
Disassemble alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
displacement.alarm
boolean
Displacement alarm event
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
door.alarm
boolean
Door alarm event
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
door.open.status
boolean
Door open status
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0200,
Message ID 0x0801,
Protocol Number 0x70
driver.message
string
Driver text message content
Message ID 0x0300
engine.blocked.status
boolean
Engine blocked status (fuel cutoff relay), true - engine is blocked, false - engine isn't blocked
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x23,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x36,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
engine.ignition.status
boolean
Engine ignition or ACC status
Message ID 0x0200,
Message ID 0x0801,
Message ID 0x0900,
Protocol Number 0x12,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x22,
Protocol Number 0x23,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x36,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x8E,
Protocol Number 0x95,
Protocol Number 0xA0,
Protocol Number 0xA4,
Protocol Number 0xA5,
Protocol Number 0xF1
error.type
number
Protocol-specific error identification number
Protocol Number 0x70
event.enum
number
Protocol-specific event code
Extension ID 0x64 of Message ID 0x0200,
Extension ID 0x65 of Message ID 0x0200,
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x70
event.seqnum
number
Unique event sequence number
Protocol Number 0x70
external.battery.low.alarm
boolean
External battery low alarm event
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
external.battery.protection.low.alarm
boolean
External battery low protection alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
external.battery.voltage
number
volts
External battery voltage
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x95
external.powersource.status
boolean
External power source connection status
Extension ID 0xE4 of Message ID 0x0200,
Extension ID 0xE8 of Message ID 0x0200
external.powersource.voltage
number
volts
External power voltage
Extension ID 0xE4 of Message ID 0x0200,
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x94 with Information Type 0x00,
Protocol Number 0xF1
fall.alarm
boolean
Fall alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x33,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
fatigue.alarm
boolean
Driver fatigue alarm
Message ID 0x0900
fatigue.driving.alarm
boolean
Fatigue driving alarm event
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0200,
Message ID 0x0801
fatigue.driving.status
boolean
Fatigue driving
Protocol Number 0x95
file.md5
number
MD5 summ of auploaded image returted by image server
Protocol Number 0x30
file.timestamp
number
Timestamp of file creation
Protocol Number 0x30
file.type.enum
number
Uploaded file type: 1 - photo, 2 - video
Protocol Number 0x30
file.upload.status
boolean
Image upload result: true - success, false - failure
Protocol Number 0x30
fuel.level
number
percentage
Fuel level percentage
Protocol Number 0xF2
fuel.level.alarm
boolean
Fuel level alarm triggered
Message ID 0x0200,
Message ID 0x0801
fuel.volume
number
liters
Fuel volume
Extension ID 0x02 of Message ID 0x0200
galileo.satellites.status
boolean
Galileo positioning system status
Message ID 0x0200,
Message ID 0x0801,
Message ID 0x0900
geofence.alarm
boolean
Geofence alarm event
Message ID 0x0200,
Message ID 0x0801
geofence.id
number
Geofence ID
Protocol Number 0x27,
Protocol Number 0x70,
Protocol Number 0xA4
geofence.status
boolean
Geofence entered status
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x33,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
glonass.satellites.status
boolean
Glonass positioning system status
Message ID 0x0200,
Message ID 0x0801,
Message ID 0x0900
gnss.antenna.disconnected.alarm
boolean
GNSS antenna disconnected or cut off alarm event
Message ID 0x0200,
Message ID 0x0801
gnss.antenna.short.circuit.alarm
boolean
GNSS antenna short circuit alarm event
Message ID 0x0200,
Message ID 0x0801
gnss.failure.alarm
boolean
GNSS receiver failure alarm event
Message ID 0x0200,
Message ID 0x0801
gnss.first.fix.event
boolean
GNSS first fix event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
gnss.realtime.status
boolean
True - GNSS realtime positioning, False - differential positioning
Protocol Number 0x10,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x8E,
Protocol Number 0x95,
Protocol Number 0x9C,
Protocol Number 0xA0,
Protocol Number 0xA4,
Protocol Number 0xC3
gnss.satellites
number
Number of GNSS satellites
Protocol Number 0x70
gnss.signal.status
boolean
True - GNSS signal is present, False - GNSS signal is lost
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
gnss.status
boolean
GNSS receiver on/off status
Message ID 0x0300,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x23,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x36,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
gps.position.satellites
number
Quantity of satellites from GPS used to calculate coordinates for given position information
Protocol Number 0x94 with Information Type 0x09
gps.satellites.status
boolean
GPS positioning system status
Message ID 0x0200,
Message ID 0x0801,
Message ID 0x0900
gsm.cellid
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) base station ID
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x11,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x18,
Protocol Number 0x19,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x28,
Protocol Number 0x2C,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0xA0,
Protocol Number 0xA1,
Protocol Number 0xA2,
Protocol Number 0xA4,
Protocol Number 0xA5
gsm.lac
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) location area code
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x11,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x18,
Protocol Number 0x19,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x28,
Protocol Number 0x2C,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0xA0,
Protocol Number 0xA1,
Protocol Number 0xA2,
Protocol Number 0xA4,
Protocol Number 0xA5
gsm.mcc
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) country code
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x11,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x18,
Protocol Number 0x19,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x28,
Protocol Number 0x2C,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0xA0,
Protocol Number 0xA1,
Protocol Number 0xA2,
Protocol Number 0xA4,
Protocol Number 0xA5
gsm.mnc
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) code
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x11,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x18,
Protocol Number 0x19,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x28,
Protocol Number 0x2C,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0xA0,
Protocol Number 0xA1,
Protocol Number 0xA2,
Protocol Number 0xA4,
Protocol Number 0xA5
gsm.operator.code
string
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) operator code, which is MCC joined with MNC
Message ID 0x0300
gsm.signal.dbm
number
dbm
Strength of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x18,
Protocol Number 0x28,
Protocol Number 0x2C,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0xA1,
Protocol Number 0xA2
gsm.signal.level
number
percentage
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal strength level
Extension ID 0xE4 of Message ID 0x0200,
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x23,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x36,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
gsm.signal.quality
number
The quality (bit error rate) of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal
Extension ID 0x30 of Message ID 0x0200
gsm.sim.iccid
string
Integrated Circuit Card Id of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)
Message ID 0x0100,
Message ID 0x0300,
Protocol Number 0x94 with Information Type 0x0A
gsm.sim.imsi
string
IMSI of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)
Message ID 0x0300,
Protocol Number 0x94 with Information Type 0x0A
gsm.tac
number
Tracking are code in the Mobile network (LTE)
Protocol Number 0x70
gsm.timing.advance
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) timing advance
Protocol Number 0x28,
Protocol Number 0x2C,
Protocol Number 0xA1,
Protocol Number 0xA2
harsh.acceleration.alarm
boolean
Harsh acceleration alarm
Message ID 0x0900
harsh.acceleration.event
boolean
Harsh acceleration detected
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
harsh.braking.alarm
boolean
Harsh braking alarm
Message ID 0x0900
harsh.braking.event
boolean
Harsh braking detected
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
harsh.cornering.event
boolean
Harsh cornering detected
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x95
harsh.turn.left.event
boolean
Harsh left turn detected
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
harsh.turn.right.event
boolean
Harsh right turn detected,
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
headlight.status
boolean
Headlights status
Protocol Number 0x98
high.coolant.temperature.alarm
boolean
High coolant temperature alarm
Message ID 0x0900
high.fuel.temperature.alarm
boolean
High fuel temperature alarm
Message ID 0x0900
high.oil.pressure.alarm
boolean
High motor oil pressure alarm
Message ID 0x0900
high.oil.temperature.alarm
boolean
High motor oil temperature alarm
Message ID 0x0900
high.voltage.alarm
boolean
High voltage alarm
Message ID 0x0900
ibutton.authorized.status
boolean
iButton authorized status
Protocol Number 0x95
ic.card.module.failure.alarm
boolean
IC card module failure alarm event
Message ID 0x0200,
Message ID 0x0801
ident
string
Device unique identifier like serial number, IMEI, etc
idle.status
boolean
Vehicle is in idling state
Protocol Number 0xF1
ignition.off.reminder.alarm
boolean
Ignition off reminder alarm
Message ID 0x0900
ignition.on.reminder.alarm
boolean
Ignition on reminder alarm
Message ID 0x0900
illegal.ignition.alarm
boolean
Illegal ignition alarm event
Message ID 0x0200,
Message ID 0x0801
illegal.movement.alarm
boolean
Illegal movement alarm event
Message ID 0x0200,
Message ID 0x0801
illegal.start.alarm
boolean
Illegal start alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
ins.state
number
Inertial navigation system state bitmask
Protocol Number 0x37,
Protocol Number 0x38
internal.battery.low.alarm
boolean
Internal battery low alarm event
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
iot.module.fault.status
boolean
IOT module fault status
Protocol Number 0x98
language
string
Language used on the device
Protocol Number 0x10,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x23,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x28,
Protocol Number 0x36,
Protocol Number 0x39,
Protocol Number 0xA1,
Protocol Number 0xA4,
Protocol Number 0xA5
lcd.failure.alarm
boolean
LCD display failure alarm event
Message ID 0x0200,
Message ID 0x0801
light.status
boolean
Light status
Protocol Number 0x98
lock.status
boolean
Lock status
Protocol Number 0x23,
Protocol Number 0x33,
Protocol Number 0x70
long.preheating.alarm
boolean
Excessively long preheating duration alarm
Message ID 0x0900
low.coolant.temperature.alarm
boolean
Low coolant temperature alarm
Message ID 0x0900
low.fuel.alarm
boolean
Low fuel alarm
Message ID 0x0900
low.voltage.alarm
boolean
Low voltage alarm
Message ID 0x0900
media
boolean
Message contain media file
media.image
object
Image file in media storage
media.video
object
Video file in media storage
message.buffered.status
boolean
Black box message
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0200,
Message ID 0x0801,
Protocol Number 0x22,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x70,
Protocol Number 0xA0
mileage
number
km
Mileage
Protocol Number 0x98
modem.hardware.version
string
Firmware hardware of the modem
Message ID 0x0300
motor.fault.status
boolean
Motor fault status
Protocol Number 0x98
motor.status
boolean
Motor status: false - idle, true - power output
Protocol Number 0x98
movement.event
boolean
Movement detected
Protocol Number 0x95
movement.status
boolean
Current movement state
Protocol Number 0xF1
operating.mode.enum
number
Protocol-specific device operating mode
Protocol Number 0x98,
Protocol Number 0xF1
overspeeding.event
boolean
Overspeeding detected
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0200,
Message ID 0x0801,
Message ID 0x0900,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
payload.hex
string
HEX Payload received from device
Protocol Number 0x9B
payload.text
string
Text Payload received from device
Protocol Number 0x9C,
Protocol Number 0xAA
peer
string
IP:port from which device connecting to the channel
plug.alarm
boolean
Terminal plug-in alarm
Message ID 0x0900
position.altitude
number
meters
Altitude value for position
Message ID 0x0200,
Message ID 0x0801,
Protocol Number 0x70
position.direction
number
degrees
Heading angle at position detection moment
Message ID 0x0200,
Message ID 0x0300,
Message ID 0x0801,
Protocol Number 0x10,
Protocol Number 0x95
position.hdop
number
Horizontal dilution of precision
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x70
position.latitude
number
degrees
Latitude coordinate value
Message ID 0x0200,
Message ID 0x0300,
Message ID 0x0801,
Message ID 0x0900,
Protocol Number 0x10,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0x8E,
Protocol Number 0x95,
Protocol Number 0x9C,
Protocol Number 0xA0,
Protocol Number 0xA4,
Protocol Number 0xC3
position.longitude
number
degrees
Longitude coordinate value
Message ID 0x0200,
Message ID 0x0300,
Message ID 0x0801,
Message ID 0x0900,
Protocol Number 0x10,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0x8E,
Protocol Number 0x95,
Protocol Number 0x9C,
Protocol Number 0xA0,
Protocol Number 0xA4,
Protocol Number 0xC3
position.satellites
number
Quantity of satellites used to calculate coordinates for given position information
Extension ID 0x31 of Message ID 0x0200,
Protocol Number 0x10,
Protocol Number 0x70
position.speed
number
km/h
Instant speed at position detection moment
Message ID 0x0200,
Message ID 0x0300,
Message ID 0x0801,
Message ID 0x0900,
Protocol Number 0x10,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0x8E,
Protocol Number 0x95,
Protocol Number 0x98,
Protocol Number 0xA0,
Protocol Number 0xA4
position.timestamp
number
seconds
Timestamp when coordinates where calculated
Message ID 0x0300,
Protocol Number 0x70
position.valid
boolean
Is position information accurate and valid for given timestamp
Message ID 0x0200,
Message ID 0x0801,
Message ID 0x0900,
Protocol Number 0x10,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x23,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0x8E,
Protocol Number 0x95,
Protocol Number 0x9C,
Protocol Number 0xA0,
Protocol Number 0xA4,
Protocol Number 0xC3
power.cut.alarm
boolean
External power cut-off alarm event
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0200,
Message ID 0x0801,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
power.status
boolean
True - power is ON, False - power is OFF
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
protocol.id
number
ID of protocol
protocol.number
number
Protocol number
pseudo.base.station.alarm
boolean
Pseudo base station alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
pull.alarm
boolean
Pull alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
rear.light.state
number
Rear light state: 0 - off, 1 - solid, 2 - blink, 3 - breathing
Protocol Number 0x98
remaining.range
number
km
Current remaining range
Protocol Number 0x98
remote.lock.status
boolean
Remote lock status
Protocol Number 0x23,
Protocol Number 0x36
report.code
string
Report code
Message ID 0x0104,
Message ID 0x0200,
Message ID 0x0300,
Message ID 0x0704,
Message ID 0x0900,
Message ID 0x1205,
Message ID 0x6006
report.reason
number
Transmission reason code
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x22,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0xA0
rfid.code
string
Hexadecimal code of connected RFID
Protocol Number 0x94 with Information Type 0x1B,
Protocol Number 0x9B
rollover.event
boolean
Roll over event detected
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0200,
Message ID 0x0801,
Message ID 0x0900
route.alarm
boolean
Route alarm event
Message ID 0x0200,
Message ID 0x0801
route.deviation.alarm
boolean
Route deviation alarm event
Message ID 0x0200,
Message ID 0x0801
route.time.alarm
boolean
Route time alarm event
Message ID 0x0200,
Message ID 0x0801
rtc.timestamp
number
seconds
RTC (real-time clock, device time) timestamp
Protocol Number 0x70
sd.status
boolean
SD status presence
Extension ID 0xE8 of Message ID 0x0200
sensor.humidity
number
percentage
Humidity sensor value, i.e. relative air humidity level
Protocol Number 0x94 with Information Type 0x1E
sensor.temperature
number
celsius
Temperature sensor value
Protocol Number 0x94 with Information Type 0x1E,
Protocol Number 0x9B
server.timestamp
number
seconds
Timestamp when server received a message
severe.vehicle.collision.alarm
boolean
Severe vehicle collision alarm
Message ID 0x0900
sharp.turn.alarm
boolean
Sharp turn alarm event
Message ID 0x0900,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
shutdown.alarm
boolean
Shutdown alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x33,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
sim.change.event
boolean
SIM card is changed event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
sleep.mode.alarm
boolean
Sleep mode alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
sleep.mode.enum
number
Protocol-specific value indicating device sleep mode state
Extension ID 0x2A of Message ID 0x0200
sleep.mode.status
boolean
Device is in sleep mode
Extension ID 0xE8 of Message ID 0x0200
software.version
string
Software version string
Message ID 0x0300
sos.alarm
boolean
SOS alarm triggerred
Extension ID 0xE8 of Message ID 0x0200,
Message ID 0x0200,
Message ID 0x0801
sound.control.alarm
boolean
Sound control alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
taillight.state.enum
number
Taillight state: 0 - off, 1 - taillight, 2 - brake light
Protocol Number 0x98
tamper.alarm
boolean
Tamper alarm event
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x33,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
tamper.button.status
boolean
Tamper button status, false - installed, true - removed
Protocol Number 0x70
temperature.alarm
boolean
Temperature value is outside of predefined range
Extension ID 0xE8 of Message ID 0x0200
theft.alarm
boolean
Theft alarm
Message ID 0x0200,
Message ID 0x0801,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
throttle.handle.fault.status
boolean
Throttle handle fault status
Protocol Number 0x98
throttle.status
boolean
Throttle status
Protocol Number 0x98
tilt.alarm
boolean
Tilting alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
time.limit.alarm
boolean
Time limit expired alarm event
Message ID 0x0200,
Message ID 0x0801
timestamp
number
seconds
Message timestamp
Message ID 0x0200,
Message ID 0x0300,
Message ID 0x0801,
Message ID 0x0900,
Message ID 0x1212,
Protocol Number 0x10,
Protocol Number 0x11,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x18,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x28,
Protocol Number 0x2C,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0x8E,
Protocol Number 0x95,
Protocol Number 0x9C,
Protocol Number 0xA0,
Protocol Number 0xA1,
Protocol Number 0xA2,
Protocol Number 0xA4,
Protocol Number 0xC3,
Protocol Number 0xF1,
Protocol Number 0xF2
total.mileage
number
km
Total mileage
Message ID 0x0900,
Protocol Number 0x98
towing.event
boolean
Towing event detected
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
traffic.daily
number
KB
Daily traffic data
Extension ID 0xE8 of Message ID 0x0200
trip.fuel.consumed
number
liters
Fuel consumed in the last trip
Message ID 0x0900
trip.id
number
Trip ID increasing every engine-ON event
Message ID 0x0900
trip.idle.number
number
Idling events count for the given trip
Message ID 0x0900
trip.mileage
number
km
Distance driven since engine start
Message ID 0x0900,
Protocol Number 0x94 with Information Type 0xA6
trip.overrun.idle.time
number
seconds
accumulated excess idle time while traveling
Message ID 0x0900
trip.start.latitude
number
degrees
Trip start latitude coordinate value
Message ID 0x0900,
Protocol Number 0x94 with Information Type 0xA6
trip.start.longitude
number
degrees
Trip start longitude coordinate value
Message ID 0x0900,
Protocol Number 0x94 with Information Type 0xA6
trip.start.timestamp
number
seconds
Timestamp value upon trip start
Message ID 0x0900,
Protocol Number 0x94 with Information Type 0xA6
trip.status
boolean
Trip status, true if trip started, false - if stopped
Message ID 0x0900
trip.stop.latitude
number
degrees
Trip stop latitude coordinate value
Message ID 0x0900,
Protocol Number 0x94 with Information Type 0xA6
trip.stop.longitude
number
degrees
Trip stop longitude coordinate value
Message ID 0x0900,
Protocol Number 0x94 with Information Type 0xA6
trip.stop.timestamp
number
seconds
Timestamp value upon trip end
Message ID 0x0900,
Protocol Number 0x94 with Information Type 0xA6
tts.module.failure.alarm
boolean
Text-to-speech module failure alarm event
Message ID 0x0200,
Message ID 0x0801
turn.left.status
boolean
Turn left status
Extension ID 0x25 of Message ID 0x0200
turn.right.status
boolean
Turn right status
Extension ID 0x25 of Message ID 0x0200
ubi.event.data
array
Data associated with UBI event
ubi.event.end.status
boolean
UBI event ended status
Protocol Number 0x9C
unauthorized.alarm
boolean
Unauthorized access alarm event
Message ID 0x0200,
Message ID 0x0801
unlock.abnormal.alarm
boolean
Abnormal unlocking alarm event
Protocol Number 0x33
unlock.failure.alarm
boolean
Unlocking failure alarm event
Protocol Number 0x33
unplug.alarm
boolean
device unplugged alarm
Message ID 0x0900
vehicle.angle.abnormal.alarm
boolean
Vehicle angle is abnormal alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
vehicle.collision.alarm
boolean
Ordinary vehicle collision alarm
Message ID 0x0900
vehicle.mileage
number
km
Total calculated mileage
Extension ID 0x01 of Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x22,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x37,
Protocol Number 0x38,
Protocol Number 0x70,
Protocol Number 0x94 with Information Type 0x06,
Protocol Number 0xA0
vehicle.oil.circuit.status
boolean
Vehicle Oil circuit status
Message ID 0x0200,
Message ID 0x0801
vehicle.plate.number
string
Vehicle plate number
Message ID 0x0100
vehicle.rolling.alarm
boolean
Vehicle is rolling alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
vehicle.stability.alarm
boolean
Vehicle stability alarm event
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x39,
Protocol Number 0xA4,
Protocol Number 0xA5
vehicle.type
number
Vehicle type. Protocol specific numeric value
Message ID 0x0900
vehicle.vin
string
VIN of vehicle
Message ID 0x0100,
Message ID 0x0900
vibration.alarm
boolean
Vibration alarm event
Extension ID 0xE8 of Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x19,
Protocol Number 0x26,
Protocol Number 0x27,
Protocol Number 0x33,
Protocol Number 0x39,
Protocol Number 0x70,
Protocol Number 0x8E,
Protocol Number 0x95,
Protocol Number 0xA4,
Protocol Number 0xA5
vibration.count
number
The number of vibrations
Protocol Number 0x94 with Information Type 0x11
video.blind.alarm
boolean
Video blind alarm event per channel
Extension ID 0x14 of Message ID 0x0200,
Extension ID 0x16 of Message ID 0x0200
video.loss.alarm
boolean
Video loss alarm event per channel
Extension ID 0x14 of Message ID 0x0200,
Extension ID 0x15 of Message ID 0x0200
visible.satellites
number
Quantity of visible satellites by GNSS receiver
Protocol Number 0x70
voltage.fault.status
boolean
Voltage fault status
Protocol Number 0x98
vss.failure.alarm
boolean
Vehicle security system failure alarm event
Message ID 0x0200,
Message ID 0x0801
wifi.mac.address
string
WiFi MAC address
Protocol Number 0x2C,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x70,
Protocol Number 0xA2,
Protocol Number 0xC3
wifi.signal.strength
number
WiFi signal strength, RSSI
Protocol Number 0x2C,
Protocol Number 0x32,
Protocol Number 0x33,
Protocol Number 0x70,
Protocol Number 0xA2,
Protocol Number 0xC3
Title
Name
Description
Properties
Custom Command
custom
Send custom command to device
Cut OFF petrol
{"payload":"RELAY,1#"}
Turn ON WiFi on the terminal
{"message_id":"8103","message_body":"F01A01"}

More devices from Jimi IoT (Concox) (69)

Device
Protocol
Manufacturer
Tags
Jimi IoT (Concox) AT1
concox
Jimi IoT (Concox)
asset
battery
ip67
magnetic
Jimi IoT (Concox) AT2
concox
Jimi IoT (Concox)
asset
battery
magnetic
wearable
Jimi IoT (Concox) AT3
concox
Jimi IoT (Concox)
asset
battery
magnetic
Jimi IoT (Concox) AT4
concox
Jimi IoT (Concox)
asset
battery
magnetic
Jimi IoT (Concox) AT4U
concox
Jimi IoT (Concox)
asset
battery
magnetic
Jimi IoT (Concox) AT5
concox
Jimi IoT (Concox)
asset
battery
solar
Jimi IoT (Concox) AT6
concox
Jimi IoT (Concox)
asset
battery
magnetic
Jimi IoT (Concox) BL10
concox
Jimi IoT (Concox)
battery
bicycle
lock
micromobility
solar
Jimi IoT (Concox) BL10S
concox
Jimi IoT (Concox)
battery
bicycle
lock
micromobility
solar
Jimi IoT (Concox) BL11
concox
Jimi IoT (Concox)
battery
bicycle
bluetooth
ip66
lock
lte
micromobility
solar
