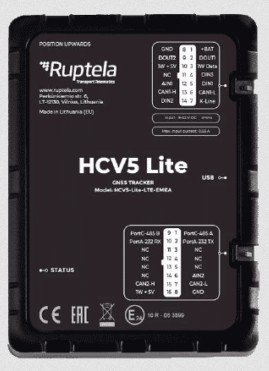

Ruptela HCV5 Lite is a versatile GPS tracker designed for heavy and light commercial vehicles. It boasts advanced features like onboard computer data (CAN) reading, driver behavior monitoring, remote tachograph data retrieval, fuel management, and Bluetooth 5.1 connectivity. With a dual GPS antenna design and Swiss-made U-blox GNSS module, the device ensures precise tracking even in challenging conditions. It supports 2G, 4G - LTE CAT-M1 connectivity and comes equipped with tamper detection, jamming alerts, and an ergonomic screwless design for easy installation. Also, it includes an internal 1050mAh backup battery and covers a wide temperature range.
Make your Ruptela HCV5 Lite devices a part of any infrastructure by connecting them via flespi telematics hub. Manage the device settings using flespi device management platform. Learn how to configure Ruptela HCV5 Lite with flespi.
Protocol: ruptela Manufacturer: Ruptela Change log: ruptela
Usage specifics
Parameters (395)
Settings (13)
Commands (3)
Ruptela HCV5 Lite
Flespi parses telemetry data from your Ruptela HCV5 Lite into a standardized JSON and lets you send commands to Ruptela HCV5 Lite via API.

Here’s the like of JSON you get

{
    "ident": "352625333222111",
    "position.altitude": 273.61,
    "position.hdop": 0.7,
    "position.latitude": 49.069782,
    "position.longitude": 28.632826,
    "position.satellites": 18,
    "server.timestamp": 1650636570.426424,
    "timestamp": 1650636570.426424,
    "device.type.id": "Ruptela HCV5 Lite",
    "channel.id": 1111,
    "protocol.id": "ruptela"
    "engine.ignition.status": true
    ...
}

How to consume this nice JSON

The easiest way is to make a REST API request like this
curl -X GET  --header 'Authorization: FlespiToken XXX' 'https://flespi.io/gw/devices/<device id>/messages'
Explore REST API Show more ways to consume dataHow to connect my Ruptela HCV5 Lite to flespi

How to send commands to Ruptela HCV5 Lite?

You can send a specific command. Show all commands
You can use pre-defined settings to send instructions more conveniently. Show all settings

You can also

Modify messages

Add or remove parameters, inject data from LBS and reverse-geocoding services, etc.
Learn what plugins can do

Aggregate data

Determine trips and stops, catch events, detect geofence ins/outs, and more.
Learn about flespi analytics capabilities
Name
Type
Unit
Description
Sources
accident.din
number
Accident digital input state
Command ID 0x01 with IO ID 109...112,
Command ID 0x44 with IO ID 109...112
accident.extreme.braking.status
boolean
Accident extreme braking state
Command ID 0x01 with IO ID 199,
Command ID 0x44 with IO ID 199
accident.harsh.acceleration.status
boolean
Accident harsh acceleration state
Command ID 0x01 with IO ID 201,
Command ID 0x44 with IO ID 201
accident.harsh.breaking.status
boolean
Accident harsh braking state
Command ID 0x01 with IO ID 200,
Command ID 0x44 with IO ID 200
accident.overspeeding.status
boolean
Accident overspeeding state
Command ID 0x01 with IO ID 198,
Command ID 0x44 with IO ID 198
adas.alert.id
number
ID of the alert generated by Advanced driver-assistance system (ADAS)
Command ID 0x01 with IO ID 716,
Command ID 0x01 with IO ID 717,
Command ID 0x44 with IO ID 716,
Command ID 0x44 with IO ID 717
adas.fatigue.alert
number
ADAS fatigue alert type: 0 - no alert, 1 - fatigue alert, 2 - distraction alert, 3 - no portrait alert
Command ID 0x01 with IO ID 716,
Command ID 0x44 with IO ID 716
adas.snapshots.count
number
Number of fatigue sensor snapshots done since the last record was generated
Command ID 0x01 with IO ID 718,
Command ID 0x44 with IO ID 718
adas.snapshot.source
number
Source ID of fatigue snapshot file
Command ID 0x01 with IO ID 717,
Command ID 0x44 with IO ID 717
adas.snapshot.timestamp
number
Fatigue snapshot file timestamp when the picture was taken
Command ID 0x01 with IO ID 717,
Command ID 0x44 with IO ID 717
ain
number
volts
Voltage on the analog input
Command ID 0x01 with IO ID 20...21,
Command ID 0x01 with IO ID 22,
Command ID 0x01 with IO ID 23,
Command ID 0x44 with IO ID 20...21,
Command ID 0x44 with IO ID 22,
Command ID 0x44 with IO ID 23
ain.event
boolean
AIN event
Command ID 0x01 with IO ID 151,
Command ID 0x44 with IO ID 151
alarm.panic.status
boolean
Panic alarm event occurred
Command ID 0x01 with IO ID 558,
Command ID 0x44 with IO ID 558
antihijack.bitmask
number
Antihijack status bitmask
Command ID 0x01 with IO ID 850,
Command ID 0x44 with IO ID 850
auto.geofence.alert
boolean
Auto-geofence alert
Command ID 0x01 with IO ID 739,
Command ID 0x44 with IO ID 739
average.x.acceleration
number
g
Harsh acceleration event average accelerometer value on X-axis
Command ID 0x01 with IO ID 755,
Command ID 0x44 with IO ID 755
average.y.acceleration
number
g
Harsh acceleration event average accelerometer value on Y-axis
Command ID 0x01 with IO ID 756,
Command ID 0x44 with IO ID 756
average.z.acceleration
number
g
Harsh acceleration event average accelerometer value on Z-axis
Command ID 0x01 with IO ID 757,
Command ID 0x44 with IO ID 757
battery.current
number
amperes
Battery current
Command ID 0x01 with IO ID 170,
Command ID 0x44 with IO ID 170
battery.health
number
percentage
Battery health level (SoH)
Command ID 0x01 with IO ID 950,
Command ID 0x44 with IO ID 950
battery.voltage
number
volts
Internal battery voltage
Command ID 0x01 with IO ID 30,
Command ID 0x44 with IO ID 30
ble.asset.battery.level
number
percentage
BLE (Bluetooth Low Energy) asset battery level
Command ID 0x01 with IO ID 764...768,
Command ID 0x44 with IO ID 764...768
ble.asset.battery.voltage
number
volts
BLE (Bluetooth Low Energy) asset battery voltage
Command ID 0x01 with IO ID 769...773,
Command ID 0x44 with IO ID 769...773
ble.beacons
array
Array with all detected BLE beacons data objects. Each object contain list of associated parameters sent by appropriate beacon. Standard parameter names used: *id* - beacon identification string. Usually it is beacon's UUID or MAC-address *local_name* - Beacons's Local Name *rssi* - BLE signal level. Units = dBm *battery.voltage* - Beacon's battery voltage. Units = volts *battery.level* - Beacon's battery level. Units = percentage *temperature* - Beacon's temperature. Units = celsius
Command ID 0x26
ble.sensor.humidity
number
percentage
BLE (Bluetooth Low Energy) sensor Humidity value
Command ID 0x01 with IO ID 605...609,
Command ID 0x44 with IO ID 605...609
ble.sensor.status
boolean
BLE (Bluetooth Low Energy) sensor status, active - true, inactive - false
Command ID 0x01 with IO ID 774...778,
Command ID 0x44 with IO ID 774...778
ble.sensor.temperature
number
celsius
BLE (Bluetooth Low Energy) sensor Temperature value
Command ID 0x01 with IO ID 600...604,
Command ID 0x44 with IO ID 600...604
ble.sensor.value
number
BLE (Bluetooth Low Energy) sensor value, depends on actual sensor type
Command ID 0x01 with IO ID 779...783,
Command ID 0x44 with IO ID 779...783
calibration.matrix.index
number
Calibration matrix index, indexed parameter
Command ID 0x23
can.air.suspension.control
number
Air suspension control bitmap from CAN bus
Command ID 0x01 with IO ID 401,
Command ID 0x44 with IO ID 401
can.alternator.error
boolean
Alternator error, read from CAN, indexed parameter, possible indexes from 1 to 4
Command ID 0x01 with IO ID 400,
Command ID 0x44 with IO ID 400
can.alternator.status
boolean
Alternator charging status read from CAN, false - not charging, true - charging, indexed parameter, possible indexes from 1 to 4
Command ID 0x01 with IO ID 400,
Command ID 0x44 with IO ID 400
can.ambient.air.temperature
number
celsius
CAN ambient air temperature
Command ID 0x01 with IO ID 89,
Command ID 0x01 with IO ID 927,
Command ID 0x01 with IO ID 97,
Command ID 0x44 with IO ID 89,
Command ID 0x44 with IO ID 927,
Command ID 0x44 with IO ID 97
can.axle.weight
number
kg
Weight on the axle read from CAN
Command ID 0x01 with IO ID 41,
Command ID 0x01 with IO ID 52...55,
Command ID 0x44 with IO ID 41,
Command ID 0x44 with IO ID 52...55
can.brake.pedal.level
number
percentage
Brake pedal push level read from CAN
Command ID 0x01 with IO ID 482,
Command ID 0x44 with IO ID 482
can.central.lock.status
boolean
CAN central lock is locked
Command ID 0x01 with IO ID 538,
Command ID 0x44 with IO ID 538
can.configuration.bitmask
number
CAN interface configuration bitmask
Command ID 0x01 with IO ID 574,
Command ID 0x44 with IO ID 574
can.cruise.status
boolean
CAN cruise control is active
Command ID 0x01 with IO ID 37,
Command ID 0x44 with IO ID 37
can.diagnostic.support.enum
number
CAN diagnostics supported bitmask
Command ID 0x01 with IO ID 11,
Command ID 0x44 with IO ID 11
can.diagnostic.troublecode.mil.bitmask
number
Diagnostic Trouble Code and Malfunction Indicator Lamp bitmask read from CAN
Command ID 0x01 with IO ID 93,
Command ID 0x44 with IO ID 93
can.diesel.exhaust.fluid.level
number
percentage
Aftertreatment diesel exhaust fluid level read from CAN
Command ID 0x01 with IO ID 357,
Command ID 0x44 with IO ID 357
can.dtc
array
Diagnostic trouble code array read from CAN
Command ID 0x09
can.dtc.indication.lights
number
DTC indication lights read from CAN
Command ID 0x01 with IO ID 626,
Command ID 0x44 with IO ID 626
can.engine.braking.factor
number
Engine braking factor value, read from CAN
Command ID 0x01 with IO ID 31,
Command ID 0x44 with IO ID 31
can.engine.coolant.temperature
number
celsius
Engine coolant temperature read from CAN
Command ID 0x01 with IO ID 926,
Command ID 0x01 with IO ID 96,
Command ID 0x44 with IO ID 926,
Command ID 0x44 with IO ID 96
can.engine.fuel.rate
number
liters/h
Engine fuel rate read from CAN
Command ID 0x01 with IO ID 100,
Command ID 0x01 with IO ID 116,
Command ID 0x44 with IO ID 100,
Command ID 0x44 with IO ID 116
can.engine.ignition.status
boolean
CAN engine ignition status
Command ID 0x01 with IO ID 522,
Command ID 0x44 with IO ID 522
can.engine.load.level
number
percentage
Calculated engine load level read from CAN
Command ID 0x01 with IO ID 101,
Command ID 0x01 with IO ID 39,
Command ID 0x01 with IO ID 519,
Command ID 0x44 with IO ID 101,
Command ID 0x44 with IO ID 39,
Command ID 0x44 with IO ID 519
can.engine.motorhours
number
hours
Total engine motorhours (engine work time) read from CAN
Command ID 0x01 with IO ID 203,
Command ID 0x44 with IO ID 203
can.engine.rpm
number
rpm
Engine RPM read from CAN
Command ID 0x01 with IO ID 197,
Command ID 0x01 with IO ID 920,
Command ID 0x01 with IO ID 94,
Command ID 0x44 with IO ID 197,
Command ID 0x44 with IO ID 920,
Command ID 0x44 with IO ID 94
can.engine.run.time
number
seconds
Run time since engine start read from CAN
Command ID 0x01 with IO ID 107,
Command ID 0x44 with IO ID 107
can.engine.temperature
number
celsius
Engine temperature read from CAN
Command ID 0x01 with IO ID 115,
Command ID 0x44 with IO ID 115
can.first.driver.card.id
number
CAN first driver ID
Command ID 0x01 with IO ID 126,
Command ID 0x01 with IO ID 127,
Command ID 0x44 with IO ID 126,
Command ID 0x44 with IO ID 127
can.fms.axle.location.enum
number
CAN axle location according FMS standard
Command ID 0x01 with IO ID 219,
Command ID 0x44 with IO ID 219
can.fms.software.version.bitmask
number
CAN FMS software version supported bitmask
Command ID 0x01 with IO ID 12,
Command ID 0x44 with IO ID 12
can.fms.tire.location.enum
number
CAN tire location according FMS standard
Command ID 0x01 with IO ID 40,
Command ID 0x44 with IO ID 40
can.front.left.door.status
boolean
CAN front left door is opened
Command ID 0x01 with IO ID 518,
Command ID 0x44 with IO ID 518
can.front.right.door.status
boolean
CAN front right door is opened
Command ID 0x01 with IO ID 518,
Command ID 0x44 with IO ID 518
can.fuel.consumed
number
liters
Fuel volume totally consumed by vehicle read from CAN
Command ID 0x01 with IO ID 208,
Command ID 0x01 with IO ID 408,
Command ID 0x01 with IO ID 754,
Command ID 0x44 with IO ID 208,
Command ID 0x44 with IO ID 408,
Command ID 0x44 with IO ID 754
can.fuel.consumed.high.resolution
number
liters
Fuel volume totally consumed by vehicle calculated with high resolution (HRLFC), read from CAN
Command ID 0x01 with IO ID 92,
Command ID 0x44 with IO ID 92
can.fuel.consumption
number
liters/h
Engine fuel rate read from CAN
Command ID 0x01 with IO ID 925,
Command ID 0x44 with IO ID 925
can.fuel.consumption.distance
number
liters/100km
Fuel consumption read from CAN
Command ID 0x01 with IO ID 407,
Command ID 0x44 with IO ID 407
can.fuel.economy
number
km/liters
CAN instantaneous fuel economy
Command ID 0x01 with IO ID 90,
Command ID 0x44 with IO ID 90
can.fuel.level
number
percentage
Fuel level in tank read from CAN
Command ID 0x01 with IO ID 207,
Command ID 0x01 with IO ID 481,
Command ID 0x01 with IO ID 530,
Command ID 0x01 with IO ID 923,
Command ID 0x01 with IO ID 98,
Command ID 0x44 with IO ID 207,
Command ID 0x44 with IO ID 481,
Command ID 0x44 with IO ID 530,
Command ID 0x44 with IO ID 923,
Command ID 0x44 with IO ID 98
can.fuel.type.enum
number
Fuel type read from CAN
Command ID 0x01 with IO ID 483,
Command ID 0x01 with IO ID 99,
Command ID 0x44 with IO ID 483,
Command ID 0x44 with IO ID 99
can.fuel.volume
number
liters
CAN fuel volume
Command ID 0x01 with IO ID 205,
Command ID 0x01 with IO ID 642,
Command ID 0x01 with IO ID 924,
Command ID 0x44 with IO ID 205,
Command ID 0x44 with IO ID 642,
Command ID 0x44 with IO ID 924
can.gas.fuel.consumed
number
kg
Natural gas fuel amount totally consumed by vehicle read from CAN
Command ID 0x01 with IO ID 484,
Command ID 0x44 with IO ID 484
can.gross.combination.vehicle.weight
number
kg
Gross combination vehicle weight read from CAN
Command ID 0x01 with IO ID 358,
Command ID 0x44 with IO ID 358
can.handbrake.status
boolean
CAN handbrake is pulled up
Command ID 0x01 with IO ID 362,
Command ID 0x44 with IO ID 362
can.hood.status
boolean
CAN hood is opened
Command ID 0x01 with IO ID 518,
Command ID 0x44 with IO ID 518
can.intake.air.temperature
number
celsius
Intake air temperature
Command ID 0x01 with IO ID 587,
Command ID 0x44 with IO ID 587
can.j1939.cargo.weight
number
kg
CAN J1939 cargo weight
Command ID 0x01 with IO ID 214,
Command ID 0x44 with IO ID 214
can.j1939.trailer.weight
number
kg
CAN J1939 trailer weight
Command ID 0x01 with IO ID 202,
Command ID 0x44 with IO ID 202
can.lvc.module.control.bitmask
number
LVC control state flags
Command ID 0x01 with IO ID 573,
Command ID 0x44 with IO ID 573
can.maintenance.before.engine.hours
number
hours
Engine hours before the next maintenance, read from CAN
Command ID 0x01 with IO ID 520,
Command ID 0x44 with IO ID 520
can.maintenance.before.mileage
number
km
Mileage before next maintenance read from CAN
Command ID 0x01 with IO ID 204,
Command ID 0x44 with IO ID 204
can.manufacturer.enum
number
Manufacturer code read from CAN
Command ID 0x01 with IO ID 644,
Command ID 0x44 with IO ID 644
can.mil.mileage
number
km
Distance traveled while malfunction indicator lamp is activated, read from CAN
Command ID 0x01 with IO ID 102,
Command ID 0x44 with IO ID 102
can.movement.status
boolean
CAN tacho vehicle motion
Command ID 0x01 with IO ID 13,
Command ID 0x44 with IO ID 13
can.one.powersource.takeoff.enum
number
CAN at least one PTO engaged
Command ID 0x01 with IO ID 91,
Command ID 0x44 with IO ID 91
can.pedal.brake.status
boolean
CAN brake pedal pressed
Command ID 0x01 with IO ID 36,
Command ID 0x44 with IO ID 36
can.pedal.clutch.status
boolean
CAN clutch pedal pressed
Command ID 0x01 with IO ID 35,
Command ID 0x44 with IO ID 35
can.powersource.takeoff.enum
number
CAN power takeoff bitmask
Command ID 0x01 with IO ID 38,
Command ID 0x44 with IO ID 38
can.rear.left.door.status
boolean
CAN rear left door is opened
Command ID 0x01 with IO ID 518,
Command ID 0x44 with IO ID 518
can.rear.right.door.status
boolean
CAN rear right door is opened
Command ID 0x01 with IO ID 518,
Command ID 0x44 with IO ID 518
can.request.support.enum
number
CAN requests supported bitmask
Command ID 0x01 with IO ID 10,
Command ID 0x44 with IO ID 10
can.retarder.selection
number
percentage
Retarder selection read from CAN
Command ID 0x01 with IO ID 361,
Command ID 0x44 with IO ID 361
can.retarder.torque.load
number
percentage
Retarder torque load percentage read from CAN
Command ID 0x01 with IO ID 360,
Command ID 0x44 with IO ID 360
can.retarder.torque.mode
number
Retarder torque mode read from CAN
Command ID 0x01 with IO ID 359,
Command ID 0x44 with IO ID 359
can.secondary.driver.card.id
number
CAN second driver ID
Command ID 0x01 with IO ID 128,
Command ID 0x01 with IO ID 129,
Command ID 0x44 with IO ID 128,
Command ID 0x44 with IO ID 129
can.secondary.fuel.level
number
percentage
CAN engine fuel level secondary
Command ID 0x01 with IO ID 209,
Command ID 0x44 with IO ID 209
can.service.brake.air.pressure
number
kPa
Service brake air pressure circuit
Command ID 0x01 with IO ID 355,
Command ID 0x01 with IO ID 356,
Command ID 0x44 with IO ID 355,
Command ID 0x44 with IO ID 356
can.system.event.enum
number
CAN system event enum
Command ID 0x01 with IO ID 42,
Command ID 0x44 with IO ID 42
can.tacho.driver.activity.enum
number
CAN tacho driver activity state
Command ID 0x01 with IO ID 215,
Command ID 0x01 with IO ID 216,
Command ID 0x44 with IO ID 215,
Command ID 0x44 with IO ID 216
can.tacho.driver.card.enum
number
CAN tacho driver card status enum
Command ID 0x01 with IO ID 15,
Command ID 0x01 with IO ID 17,
Command ID 0x44 with IO ID 15,
Command ID 0x44 with IO ID 17
can.tacho.driver.time.enum
number
CAN tacho driver 1 time related status
Command ID 0x01 with IO ID 14,
Command ID 0x01 with IO ID 16,
Command ID 0x44 with IO ID 14,
Command ID 0x44 with IO ID 16
can.tacho.handling.info.status
boolean
CAN tacho handling information
Command ID 0x01 with IO ID 43,
Command ID 0x44 with IO ID 43
can.tacho.overspeeding.event
boolean
CAN tacho vehicle overspeed
Command ID 0x01 with IO ID 218,
Command ID 0x44 with IO ID 218
can.tacho.performance.enum
number
CAN tachograph performance
Command ID 0x01 with IO ID 217,
Command ID 0x44 with IO ID 217
can.tacho.position.speed
number
km/h
CAN tachograph vehicle speed
Command ID 0x01 with IO ID 213,
Command ID 0x44 with IO ID 213
can.tacho.reverse.movement.status
boolean
CAN tacho direction indicator
Command ID 0x01 with IO ID 44,
Command ID 0x44 with IO ID 44
can.throttle.pedal.level
number
percentage
Throttle pedal push level read from CAN
Command ID 0x01 with IO ID 103,
Command ID 0x01 with IO ID 206,
Command ID 0x01 with IO ID 928,
Command ID 0x44 with IO ID 103,
Command ID 0x44 with IO ID 206,
Command ID 0x44 with IO ID 928
can.trunk.status
boolean
CAN trunk is opened
Command ID 0x01 with IO ID 518,
Command ID 0x44 with IO ID 518
can.vehicle.battery.capacity
number
Wh
Vehicle battery capacity get from CAN bus
Command ID 0x01 with IO ID 521,
Command ID 0x44 with IO ID 521
can.vehicle.battery.charging.status
boolean
Vehicle battery charging status get from CAN Bus
Command ID 0x01 with IO ID 517,
Command ID 0x44 with IO ID 517
can.vehicle.battery.level
number
percentage
CAN-bus reported vehicle battery level for EV or HEV
Command ID 0x01 with IO ID 515,
Command ID 0x01 with IO ID 722,
Command ID 0x44 with IO ID 515,
Command ID 0x44 with IO ID 722
can.vehicle.id
string
CAN vehicle ID
Command ID 0x01 with IO ID 123,
Command ID 0x01 with IO ID 124,
Command ID 0x01 with IO ID 125,
Command ID 0x44 with IO ID 123,
Command ID 0x44 with IO ID 124,
Command ID 0x44 with IO ID 125
can.vehicle.mileage
number
km
Total vehicle mileage read from CAN
Command ID 0x01 with IO ID 645,
Command ID 0x01 with IO ID 922,
Command ID 0x44 with IO ID 645,
Command ID 0x44 with IO ID 922
can.vehicle.mileage.high.resolution
number
km
Total vehicle mileage calculated with high resolution (VDHR), read from CAN
Command ID 0x01 with IO ID 114,
Command ID 0x44 with IO ID 114
can.vehicle.remaining.distance
number
km
Remaining electrical vehicle driving distance in kilometers read from CAN
Command ID 0x01 with IO ID 516,
Command ID 0x01 with IO ID 723,
Command ID 0x44 with IO ID 516,
Command ID 0x44 with IO ID 723
can.vehicle.speed
number
km/h
Vehicle speed read from CAN
Command ID 0x01 with IO ID 921,
Command ID 0x01 with IO ID 95,
Command ID 0x44 with IO ID 921,
Command ID 0x44 with IO ID 95
can.wheel.speed
number
km/h
Vehicle wheel based speed, read from CAN
Command ID 0x01 with IO ID 210,
Command ID 0x44 with IO ID 210
channel.id
number
ID of channel that received a message
config.engine.ignition.status
boolean
Custom configured engine ignition status
Command ID 0x01 with IO ID 409,
Command ID 0x44 with IO ID 409
counter.din.cumulative.hours
number
hours
Digital input hour counter. The seconds are cumulated and not reset on new record.
Command ID 0x01 with IO ID 577...580,
Command ID 0x44 with IO ID 577...580
counter.din.hours
number
hours
Digital input hour counter. The counter is reset on every new record.
Command ID 0x01 with IO ID 45...48,
Command ID 0x44 with IO ID 45...48
counter.fuel.value
number
Fuel counter
Command ID 0x01 with IO ID 18...19,
Command ID 0x01 with IO ID 20...21,
Command ID 0x44 with IO ID 18...19,
Command ID 0x44 with IO ID 20...21
crash.event
boolean
Crash event detected
Command ID 0x01 with IO ID 805,
Command ID 0x44 with IO ID 805
crash.impact.acceleration
number
g
Crash impact acceleration
Command ID 0x01 with IO ID 412,
Command ID 0x44 with IO ID 412
crash.impact.direction
number
degrees
Crash impact direction
Command ID 0x01 with IO ID 412,
Command ID 0x44 with IO ID 412
custom
any
Any custom parameter
device.configuration.id
number
Configuration profile index
Command ID 0x01 with IO ID 28,
Command ID 0x44 with IO ID 28
device.id
number
ID of device that received a message
device.name
string
Name of device that received a message
device.temperature
number
celsius
Temperature of device
Command ID 0x01 with IO ID 6,
Command ID 0x44 with IO ID 6
device.type.id
number
ID of device type of device that received a message
device.uptime
number
seconds
Time in seconds since last device power on
Command ID 0x01 with IO ID 525,
Command ID 0x44 with IO ID 525
din
number
Digital inputs bitmask
Command ID 0x01 with IO ID 2...5,
Command ID 0x44 with IO ID 2...5
din.high.event
boolean
DIN high event
Command ID 0x01 with IO ID 151,
Command ID 0x44 with IO ID 151
din.low.event
boolean
DIN low event
Command ID 0x01 with IO ID 151,
Command ID 0x44 with IO ID 151
dout
number
Digital outputs bitmask
Command ID 0x01 with IO ID 405,
Command ID 0x01 with IO ID 406,
Command ID 0x44 with IO ID 405,
Command ID 0x44 with IO ID 406
driver.registration.status
boolean
Driver registration status
Command ID 0x01 with IO ID 630,
Command ID 0x44 with IO ID 630
ds1971.driver.ibutton.code
string
DS1971 iButton internal 16B driver ID
Command ID 0x01 with IO ID 621,
Command ID 0x01 with IO ID 622,
Command ID 0x44 with IO ID 621,
Command ID 0x44 with IO ID 622
dtc.latitude
number
degrees
Latitude of diagnostic trouble code
Command ID 0x09
dtc.longitude
number
degrees
Longitude of diagnostic trouble code
Command ID 0x09
dtc.source
number
Source of diagnostic trouble code: 0xFF - OBD, 0x1 - CAN j1939, 0x02 - CAN j1708
Command ID 0x09
dtc.status
number
Status of diagnostic trouble code: 1 - current, 2 - historical
Command ID 0x09
dtc.timestamp
number
seconds
Timestamp of diagnostic trouble code
Command ID 0x09
eco.engine.braking.distance
number
km
ECO engine braking distance
Command ID 0x01 with IO ID 597,
Command ID 0x01 with IO ID 878,
Command ID 0x44 with IO ID 597,
Command ID 0x44 with IO ID 878
event.id
number
ID of event that caused record generation
Command ID 0x01,
Command ID 0x44
event.seqnum
number
Unique event sequence number
Command ID 0x01,
Command ID 0x44
external.powersource.current
number
External supply current
Command ID 0x01 with IO ID 957,
Command ID 0x44 with IO ID 957
external.powersource.voltage
number
volts
External power voltage
Command ID 0x01 with IO ID 29,
Command ID 0x44 with IO ID 29
extnav.position.altitude
number
meters
Altitude value for external receiver position
Command ID 0x01 with IO ID 419,
Command ID 0x44 with IO ID 419
fuel.consumed
number
liters
Fuel volume totally consumed by vehicle
Command ID 0x01 with IO ID 789...793,
Command ID 0x44 with IO ID 789...793
fuel.sensor.a1.temperature
number
celsius
Digital fuel level sensor A1 tempterature
Command ID 0x01 with IO ID 212,
Command ID 0x44 with IO ID 212
fuel.sensor.a1.value
number
Digital fuel level sensor A1 value expressed in normalized units (N)
Command ID 0x01 with IO ID 211,
Command ID 0x44 with IO ID 211
fuel.sensor.b1.temperature
number
celsius
Digital fuel level sensor B1 tempterature
Command ID 0x01 with IO ID 76,
Command ID 0x44 with IO ID 76
fuel.sensor.b1.value
number
Digital fuel level sensor B1 value expressed in normalized units (N)
Command ID 0x01 with IO ID 67,
Command ID 0x44 with IO ID 67
fuel.sensor.c10.temperature
number
celsius
Digital fuel level sensor C10 tempterature
Command ID 0x01 with IO ID 75,
Command ID 0x44 with IO ID 75
fuel.sensor.c10.value
number
Digital fuel level sensor C10 value expressed in normalized units (N)
Command ID 0x01 with IO ID 87,
Command ID 0x44 with IO ID 87
fuel.sensor.c1.temperature
number
celsius
Digital fuel level sensor C1 tempterature
Command ID 0x01 with IO ID 56,
Command ID 0x44 with IO ID 56
fuel.sensor.c1.value
number
Digital fuel level sensor C1 value expressed in normalized units (N)
Command ID 0x01 with IO ID 66,
Command ID 0x44 with IO ID 66
fuel.sensor.c2.temperature
number
celsius
Digital fuel level sensor C2 tempterature
Command ID 0x01 with IO ID 57,
Command ID 0x44 with IO ID 57
fuel.sensor.c2.value
number
Digital fuel level sensor C2 value expressed in normalized units (N)
Command ID 0x01 with IO ID 68,
Command ID 0x44 with IO ID 68
fuel.sensor.c3.temperature
number
celsius
Digital fuel level sensor C3 tempterature
Command ID 0x01 with IO ID 58,
Command ID 0x44 with IO ID 58
fuel.sensor.c3.value
number
Digital fuel level sensor C3 value expressed in normalized units (N)
Command ID 0x01 with IO ID 69,
Command ID 0x44 with IO ID 69
fuel.sensor.c4.temperature
number
celsius
Digital fuel level sensor C4 tempterature
Command ID 0x01 with IO ID 59,
Command ID 0x44 with IO ID 59
fuel.sensor.c4.value
number
Digital fuel level sensor C4 value expressed in normalized units (N)
Command ID 0x01 with IO ID 81,
Command ID 0x44 with IO ID 81
fuel.sensor.c5.temperature
number
celsius
Digital fuel level sensor C5 tempterature
Command ID 0x01 with IO ID 60,
Command ID 0x44 with IO ID 60
fuel.sensor.c5.value
number
Digital fuel level sensor C5 value expressed in normalized units (N)
Command ID 0x01 with IO ID 82,
Command ID 0x44 with IO ID 82
fuel.sensor.c6.temperature
number
celsius
Digital fuel level sensor C6 tempterature
Command ID 0x01 with IO ID 61,
Command ID 0x44 with IO ID 61
fuel.sensor.c6.value
number
Digital fuel level sensor C6 value expressed in normalized units (N)
Command ID 0x01 with IO ID 83,
Command ID 0x44 with IO ID 83
fuel.sensor.c7.temperature
number
celsius
Digital fuel level sensor C7 tempterature
Command ID 0x01 with IO ID 62,
Command ID 0x44 with IO ID 62
fuel.sensor.c7.value
number
Digital fuel level sensor C7 value expressed in normalized units (N)
Command ID 0x01 with IO ID 84,
Command ID 0x44 with IO ID 84
fuel.sensor.c8.temperature
number
celsius
Digital fuel level sensor C8 tempterature
Command ID 0x01 with IO ID 63,
Command ID 0x44 with IO ID 63
fuel.sensor.c8.value
number
Digital fuel level sensor C8 value expressed in normalized units (N)
Command ID 0x01 with IO ID 85,
Command ID 0x44 with IO ID 85
fuel.sensor.c9.temperature
number
celsius
Digital fuel level sensor C9 tempterature
Command ID 0x01 with IO ID 64,
Command ID 0x44 with IO ID 64
fuel.sensor.c9.value
number
Digital fuel level sensor C9 value expressed in normalized units (N)
Command ID 0x01 with IO ID 86,
Command ID 0x44 with IO ID 86
fuel.sensor.frequency
number
hz
DUT-E S7 frequency
Command ID 0x01 with IO ID 784...788,
Command ID 0x44 with IO ID 784...788
garmin.payload.hex
string
Garmin payload in hex
Command ID 0x1F
garmin.status
boolean
Garmin FMI module status
Command ID 0x1E
geofence.enetered.event
boolean
Device entered geofence event
Command ID 0x01 with IO ID 151,
Command ID 0x44 with IO ID 151
geofence.group.id
number
Geofence group ID
Command ID 0x01 with IO ID 151,
Command ID 0x44 with IO ID 151
geofence.id
number
Geofence ID
Command ID 0x01 with IO ID 151,
Command ID 0x01 with IO ID 651,
Command ID 0x44 with IO ID 151,
Command ID 0x44 with IO ID 651
geofence.left.event
boolean
Device left geofence event
Command ID 0x01 with IO ID 151,
Command ID 0x44 with IO ID 151
geofence.overspeeding.status
boolean
Geofence overspeeding status
Command ID 0x01 with IO ID 151,
Command ID 0x44 with IO ID 151
geofence.status
boolean
Geofence entered status
Command ID 0x01 with IO ID 151,
Command ID 0x01 with IO ID 651,
Command ID 0x44 with IO ID 151,
Command ID 0x44 with IO ID 651
geofence.valid
boolean
Geofence reliablity flag
Command ID 0x01 with IO ID 151,
Command ID 0x44 with IO ID 151
gnss.antenna.status
boolean
GNSS receiver antenna status
Command ID 0x01 with IO ID 415,
Command ID 0x44 with IO ID 415
gnss.antenna.type
number
GNSS antenna type: 0 - internal, 1 - external
Command ID 0x01 with IO ID 759,
Command ID 0x44 with IO ID 759
gnss.fix.duration
number
seconds
Time used to fetch device GNSS position ("Time to GPS fix")
Command ID 0x01 with IO ID 5005,
Command ID 0x44 with IO ID 5005
gnss.state.enum
number
Protocol-specific GNSS state code. May contain information about GNSS fix status, sleep status, ON/OFF, Overcurrent/protect state.
Command ID 0x07
gprs.status
boolean
GPRS mobile network status
Command ID 0x01 with IO ID 418,
Command ID 0x44 with IO ID 418
gsm.cellid
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) base station ID
Command ID 0x01 with IO ID 852,
Command ID 0x44 with IO ID 852
gsm.jamming.event
boolean
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal jamming detected
Command ID 0x01 with IO ID 88,
Command ID 0x44 with IO ID 88
gsm.lac
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) location area code
Command ID 0x01 with IO ID 851,
Command ID 0x44 with IO ID 851
gsm.mcc
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) country code
Command ID 0x01 with IO ID 150,
Command ID 0x0F,
Command ID 0x44 with IO ID 150
gsm.mnc
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) code
Command ID 0x01 with IO ID 150,
Command ID 0x0F,
Command ID 0x44 with IO ID 150
gsm.network.type
string
The type of the Mobile network the device is currently registered to
Command ID 0x01 with IO ID 762,
Command ID 0x44 with IO ID 762
gsm.operator.code
string
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) operator code, which is MCC joined with MNC
Command ID 0x01 with IO ID 150,
Command ID 0x0F,
Command ID 0x44 with IO ID 150
gsm.signal.dbm
number
dbm
Strength of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal
Command ID 0x01 with IO ID 27,
Command ID 0x44 with IO ID 27
gsm.sim.imsi
string
IMSI of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)
Command ID 0x0F
gsm.state.enum
number
Mobile network module state
Command ID 0x01 with IO ID 763,
Command ID 0x44 with IO ID 763
gsm.state.enum.description
string
Mobile network module state description
Command ID 0x01 with IO ID 763,
Command ID 0x44 with IO ID 763
gsm.troublecode.bitmask
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) trouble codes
Command ID 0x01 with IO ID 560,
Command ID 0x44 with IO ID 560
ibutton.code
string
Hexadecimal code of connected iButton
Command ID 0x01 with IO ID 34,
Command ID 0x44 with IO ID 34
ident
string
Device unique identifier like serial number, IMEI, etc
idle.status
boolean
Vehicle is in idling state
Command ID 0x01 with IO ID 169,
Command ID 0x44 with IO ID 169
idle.status.duration
number
seconds
Duration of vehicle being in the last idling state
Command ID 0x01 with IO ID 137,
Command ID 0x01 with IO ID 876,
Command ID 0x44 with IO ID 137,
Command ID 0x44 with IO ID 876
image.count
number
Indicates how many snapshots were done since last record and were stored in SD card
Command ID 0x01 with IO ID 652,
Command ID 0x01 with IO ID 653,
Command ID 0x44 with IO ID 652,
Command ID 0x44 with IO ID 653
image.status
boolean
Indicates if there is a snapshot in camera memory
Command ID 0x01 with IO ID 654,
Command ID 0x01 with IO ID 655,
Command ID 0x44 with IO ID 654,
Command ID 0x44 with IO ID 655
iqfreeze.ain
number
volts
iQFreeze voltage on the analog input
Command ID 0x01 with IO ID 698,
Command ID 0x01 with IO ID 699,
Command ID 0x01 with IO ID 700,
Command ID 0x44 with IO ID 698,
Command ID 0x44 with IO ID 699,
Command ID 0x44 with IO ID 700
iqfreeze.ain.error
number
iQFreeze analog input error
Command ID 0x01 with IO ID 705,
Command ID 0x01 with IO ID 706,
Command ID 0x01 with IO ID 707,
Command ID 0x44 with IO ID 705,
Command ID 0x44 with IO ID 706,
Command ID 0x44 with IO ID 707
iqfreeze.ambient.air.temperature
number
celsius
Ambient air temperature reported by iQFreeze
Command ID 0x01 with IO ID 664,
Command ID 0x44 with IO ID 664
iqfreeze.battery.voltage
number
volts
Battery volrage reported by iQFreeze
Command ID 0x01 with IO ID 676,
Command ID 0x44 with IO ID 676
iqfreeze.cycle.mode
number
Compressor's engine operational mode of corresponding compartment reported by iQFreeze
Command ID 0x01 with IO ID 667,
Command ID 0x44 with IO ID 667
iqfreeze.din
number
iQFreeze digital inputs
Command ID 0x01 with IO ID 695,
Command ID 0x44 with IO ID 695
iqfreeze.door.status
boolean
Status of the main door of corresponding compartment reported by iQFreeze; false - closed, true - open
Command ID 0x01 with IO ID 673,
Command ID 0x44 with IO ID 673
iqfreeze.electric.hours
number
hours
Total electric hours reported by iQFreeze
Command ID 0x01 with IO ID 678,
Command ID 0x44 with IO ID 678
iqfreeze.engine.coolant.temperature
number
celsius
Engine coolant temperature reported by iQFreeze
Command ID 0x01 with IO ID 665,
Command ID 0x44 with IO ID 665
iqfreeze.engine.hours
number
hours
Total diesel hours reported by iQFreeze
Command ID 0x01 with IO ID 679,
Command ID 0x44 with IO ID 679
iqfreeze.engine.rpm
number
rpm
RPM of the compressor's engine reported by iQFreeze
Command ID 0x01 with IO ID 666,
Command ID 0x44 with IO ID 666
iqfreeze.error
number
iQFreeze error number
Command ID 0x01 with IO ID 684,
Command ID 0x01 with IO ID 685,
Command ID 0x44 with IO ID 684,
Command ID 0x44 with IO ID 685
iqfreeze.errors.number
number
Number of active alarms at the present moment reported by iQFreeze
Command ID 0x01 with IO ID 683,
Command ID 0x44 with IO ID 683
iqfreeze.operating.mode
number
System operating mode (heating, cooling, defrosting, etc) of corresponding compartment reported by iQFreeze
Command ID 0x01 with IO ID 670,
Command ID 0x44 with IO ID 670
iqfreeze.refrigerator.enum
number
iQFreeze refrigerator type: 1 - Thermoking, 2 - Carier Supra\Maxima, 3 - Zanotti, 4 - Thermal Master, 5 - Carrier Vector (except 1350), 6 - Mitsubishi, 7 - Carrier Vector 1350, 8 - Thermoking TGVI, 9 - Carrier Xarios
Command ID 0x01 with IO ID 693,
Command ID 0x44 with IO ID 693
iqfreeze.setpoint
number
celsius
iQFreeze cargo required temperature (setpoint) in corresponding compartment
Command ID 0x01 with IO ID 661,
Command ID 0x44 with IO ID 661
iqfreeze.temperature
number
celsius
iQFreeze temperature value in corresponding compartment
Command ID 0x01 with IO ID 658,
Command ID 0x44 with IO ID 658
iqfreeze.timestamp
number
seconds
iQFreeze last record UTC timestamp
Command ID 0x01 with IO ID 715,
Command ID 0x44 with IO ID 715
iqfreeze.vehicle.hours
number
hours
Total engine hours reported by iQFreeze
Command ID 0x01 with IO ID 680,
Command ID 0x44 with IO ID 680
magnetic.card.code
string
Magnetic Card ID code
Command ID 0x01,
Command ID 0x01 with IO ID 581,
Command ID 0x01 with IO ID 582,
Command ID 0x01 with IO ID 617,
Command ID 0x44,
Command ID 0x44 with IO ID 581,
Command ID 0x44 with IO ID 582,
Command ID 0x44 with IO ID 617
max.x.acceleration
number
g
Harsh acceleration event max accelerometer value on X-axis
Command ID 0x01 with IO ID 584,
Command ID 0x44 with IO ID 584
max.y.acceleration
number
g
Harsh acceleration event max accelerometer value on Y-axis
Command ID 0x01 with IO ID 585,
Command ID 0x44 with IO ID 585
max.z.acceleration
number
g
Harsh acceleration event max accelerometer value on Z-axis
Command ID 0x01 with IO ID 586,
Command ID 0x44 with IO ID 586
media
boolean
Message contain media file
media.image
object
Image file in media storage
media.video
object
Video file in media storage
mobileye.brake.signal.status
boolean
Mobileye brake signal status, true - brake signal is on, false - brake signal is off
Command ID 0x01 with IO ID 450,
Command ID 0x44 with IO ID 450
mobileye.dusk.status
boolean
Mobileye dusk time indicator
Command ID 0x01 with IO ID 421,
Command ID 0x44 with IO ID 421
mobileye.error.code
number
Mobileye error code
Command ID 0x01 with IO ID 427,
Command ID 0x44 with IO ID 427
mobileye.error.valid.status
boolean
Mobileye error is valid status
Command ID 0x01 with IO ID 426,
Command ID 0x44 with IO ID 426
mobileye.failsafe.mode.status
boolean
Mobileye indocator of failsafe mode activation
Command ID 0x01 with IO ID 433,
Command ID 0x44 with IO ID 433
mobileye.forward.collision.warning.status
boolean
Mobileye indicator of forward collision warning event status
Command ID 0x01 with IO ID 431,
Command ID 0x44 with IO ID 431
mobileye.headway.measurement
number
seconds
Mobileye headway measurement, 0 means no closest in-path vehicle on the range
Command ID 0x01 with IO ID 425,
Command ID 0x44 with IO ID 425
mobileye.headway.valid.status
boolean
Mobileye headway valid status
Command ID 0x01 with IO ID 424,
Command ID 0x44 with IO ID 424
mobileye.headway.warning.level
number
Mobileye headway warning level
Command ID 0x01 with IO ID 439,
Command ID 0x44 with IO ID 439
mobileye.headway.warning.repeat.enabled.status
boolean
Mobileye headway warning repeat enabled status
Command ID 0x01 with IO ID 440,
Command ID 0x44 with IO ID 440
mobileye.high.beam.available.status
boolean
Mobileye high beam available status, true - high beam available, false - high beam not available
Command ID 0x01 with IO ID 458,
Command ID 0x44 with IO ID 458
mobileye.high.beam.status
boolean
Mobileye high beam status, true - high beam on, false - high beam off
Command ID 0x01 with IO ID 455,
Command ID 0x44 with IO ID 455
mobileye.internal.error.status
boolean
Mobileye indicator of internal error. See user manual for details
Command ID 0x01 with IO ID 432,
Command ID 0x44 with IO ID 432
mobileye.lane.departure.left.warning.status
boolean
Mobileye indicator of left lane departure warning event status
Command ID 0x01 with IO ID 429,
Command ID 0x44 with IO ID 429
mobileye.lane.departure.right.warning.status
boolean
Mobileye indicator of right lane departure warning event status
Command ID 0x01 with IO ID 430,
Command ID 0x44 with IO ID 430
mobileye.lane.departure.warnings.status
boolean
Mobileye lane departure warnings status, true - wanrings enabled, false - warnings disabled due to low speed or configuration
Command ID 0x01 with IO ID 428,
Command ID 0x44 with IO ID 428
mobileye.left.blink.available.status
boolean
Mobileye left blink available status, true - left blink available, false - left blink not available
Command ID 0x01 with IO ID 451,
Command ID 0x44 with IO ID 451
mobileye.low.beam.available.status
boolean
Mobileye low beam available status, true - low beam available, false - low beam not available
Command ID 0x01 with IO ID 457,
Command ID 0x44 with IO ID 457
mobileye.low.beam.status
boolean
Mobileye low beam status, true - low beam on, false - low beam off
Command ID 0x01 with IO ID 454,
Command ID 0x44 with IO ID 454
mobileye.movement.status
boolean
Mobileye host vehicle is moving status
Command ID 0x01 with IO ID 423,
Command ID 0x44 with IO ID 423
mobileye.night.status
boolean
Mobileye night time indicator
Command ID 0x01 with IO ID 422,
Command ID 0x44 with IO ID 422
mobileye.pedestrian.collision.warning.status
boolean
Mobileye indicator of pedestrians collision warning
Command ID 0x01 with IO ID 434,
Command ID 0x44 with IO ID 434
mobileye.pedestrian.danger.zone.status
boolean
Mobileye indicator of pedestrians in danger zone
Command ID 0x01 with IO ID 435,
Command ID 0x44 with IO ID 435
mobileye.right.blink.available.status
boolean
Mobileye right blink available status, true - right blink available, false - right blink not available
Command ID 0x01 with IO ID 452,
Command ID 0x44 with IO ID 452
mobileye.sound.type
number
Mobileye sound type
Command ID 0x01 with IO ID 420,
Command ID 0x44 with IO ID 420
mobileye.speed
number
km/h
Mobileye speed
Command ID 0x01 with IO ID 460,
Command ID 0x44 with IO ID 460
mobileye.speed.available.status
boolean
Mobileye speed available status, true - speed available, false - speed not available
Command ID 0x01 with IO ID 459,
Command ID 0x44 with IO ID 459
mobileye.tamper.status
boolean
Mobileye indicator of tamper alert (tamper alert is activated if there is no vehicle or lane detection for duration of 10 minutes; tamper alert is active above 15 km/h
Command ID 0x01 with IO ID 436,
Command ID 0x44 with IO ID 436
mobileye.traffic.signs.recognition.message
string
Mobileye traffic signs recognition system message, 8-byte hex string
Command ID 0x01 with IO ID 470,
Command ID 0x44 with IO ID 470
mobileye.traffic.signs.recognition.sign.type
string
Mobileye traffic signs recognition sign type, 8-byte hex string
Command ID 0x01 with IO ID 480,
Command ID 0x44 with IO ID 480
mobileye.traffic.signs.recognition.status
boolean
Mobileye traffic signs recognition enabled status
Command ID 0x01 with IO ID 437,
Command ID 0x44 with IO ID 437
mobileye.traffic.signs.speed.warning.level
number
Mobileye traffic signs recongition system's warning level
Command ID 0x01 with IO ID 438,
Command ID 0x44 with IO ID 438
mobileye.wipers.available.status
boolean
Mobileye wipers available status, true - wipers available, false - wipers not available
Command ID 0x01 with IO ID 456,
Command ID 0x44 with IO ID 456
mobileye.wipers.status
boolean
Mobileye wipers status, true - wiper passes the windshield, false - wiper is static
Command ID 0x01 with IO ID 453,
Command ID 0x44 with IO ID 453
movement.status
boolean
Current movement state
Command ID 0x01 with IO ID 173,
Command ID 0x44 with IO ID 173
obd.connected.status
boolean
OBDII device is connected to vehicle
Command ID 0x01 with IO ID 985,
Command ID 0x44 with IO ID 985
ot.din
number
OT digital input value
Command ID 0x01 with IO ID 193...196,
Command ID 0x44 with IO ID 193...196
ot.sensor.temperature
number
celsius
OT Temperature sensor value
Command ID 0x01 with IO ID 144...149,
Command ID 0x44 with IO ID 144...149
passenger.ibutton.code
string
iButton code of passenger
Command ID 0x01 with IO ID 536,
Command ID 0x44 with IO ID 536
payload.hex
string
HEX Payload received from device
Command ID 0x0E
pcb.temperature
number
celsius
PCB temperature
Command ID 0x01 with IO ID 32,
Command ID 0x44 with IO ID 32
peer
string
IP:port from which device connecting to the channel
phone.call.state.enum
number
Phone call status
Command ID 0x01 with IO ID 596,
Command ID 0x44 with IO ID 596
port.id
number
Port ID: 0 – port A, 1 – port B, 2 – port C
Command ID 0x0E
position.altitude
number
meters
Altitude value for position
Command ID 0x01,
Command ID 0x07,
Command ID 0x44
position.direction
number
degrees
Heading angle at position detection moment
Command ID 0x01,
Command ID 0x07,
Command ID 0x44
position.hdop
number
Horizontal dilution of precision
Command ID 0x01,
Command ID 0x07,
Command ID 0x44
position.latitude
number
degrees
Latitude coordinate value
Command ID 0x01,
Command ID 0x07,
Command ID 0x26,
Command ID 0x44
position.longitude
number
degrees
Longitude coordinate value
Command ID 0x01,
Command ID 0x07,
Command ID 0x26,
Command ID 0x44
position.satellites
number
Quantity of satellites used to calculate coordinates for given position information
Command ID 0x01,
Command ID 0x07,
Command ID 0x44
position.speed
number
km/h
Instant speed at position detection moment
Command ID 0x01,
Command ID 0x01 with IO ID 176,
Command ID 0x44,
Command ID 0x44 with IO ID 176
position.timestamp
number
seconds
Timestamp when coordinates where calculated
Command ID 0x07
private.status
boolean
Device is in private mode
Command ID 0x01 with IO ID 417,
Command ID 0x01 with IO ID 806,
Command ID 0x44 with IO ID 417,
Command ID 0x44 with IO ID 806
protocol.id
number
ID of protocol
refrigerator.door.open.status
boolean
Refrigerator door open status
Command ID 0x01 with IO ID 191,
Command ID 0x44 with IO ID 191
refrigerator.engine.mode
string
Refrigerator engine mode - diesel, electric
Command ID 0x01 with IO ID 192,
Command ID 0x44 with IO ID 192
refrigerator.engine.mode.enum
number
Refrigerator engine mode
Command ID 0x01 with IO ID 192,
Command ID 0x44 with IO ID 192
refrigerator.high.speed.status
boolean
Fridge high speed status
Command ID 0x01 with IO ID 190,
Command ID 0x44 with IO ID 190
refrigerator.operate.mode
string
Refrigerator operating mode - cycle sentry, continuous
Command ID 0x01 with IO ID 189,
Command ID 0x44 with IO ID 189
refrigerator.operate.mode.enum
number
Refrigerator operating mode
Command ID 0x01 with IO ID 189,
Command ID 0x44 with IO ID 189
rfid.code
string
Hexadecimal code of connected RFID
Command ID 0x01 with IO ID 171,
Command ID 0x01 with IO ID 172,
Command ID 0x44 with IO ID 171,
Command ID 0x44 with IO ID 172
rollover.alarm.status
boolean
Roll over alarm state
Command ID 0x01 with IO ID 411,
Command ID 0x44 with IO ID 411
sdcard.log.enum
number
SD card log id
Command ID 0x01 with IO ID 113,
Command ID 0x44 with IO ID 113
sdcard.log.marker.value
number
SD Log record Marker
Command ID 0x01 with IO ID 252,
Command ID 0x44 with IO ID 252
security.event.enum
number
Security information ID
Command ID 0x01 with IO ID 25,
Command ID 0x44 with IO ID 25
segment.acceleration.events
number
The number of harsh acceleration events during the last segment
Command ID 0x01 with IO ID 136,
Command ID 0x44 with IO ID 136
segment.ain.voltage
number
volts
Voltage difference between current and earlier obtained voltage reference
Command ID 0x01 with IO ID 26,
Command ID 0x01 with IO ID 33,
Command ID 0x44 with IO ID 26,
Command ID 0x44 with IO ID 33
segment.braking.distance
number
km
Distance, travelled while brake pedal was pressed since last record
Command ID 0x01 with IO ID 527,
Command ID 0x01 with IO ID 878,
Command ID 0x44 with IO ID 527,
Command ID 0x44 with IO ID 878
segment.braking.duration
number
seconds
Time period when brake pedal was pressed and vehicle speed was not 0 since last record
Command ID 0x01 with IO ID 528,
Command ID 0x44 with IO ID 528
segment.braking.events
number
The number of braking events during the last segment
Command ID 0x01 with IO ID 134,
Command ID 0x44 with IO ID 134
segment.can.fuel.consumed
number
liters
Fuel volume consumed by vehicle on the last segment using CAN data
Command ID 0x01 with IO ID 122,
Command ID 0x44 with IO ID 122
segment.cornering.events
number
The number of cornering events during the last segment
Command ID 0x01 with IO ID 143,
Command ID 0x44 with IO ID 143
segment.cruise.control.distance
number
km
Distance travelled under cruise control during the last segment
Command ID 0x01 with IO ID 142,
Command ID 0x01 with IO ID 546,
Command ID 0x01 with IO ID 881,
Command ID 0x44 with IO ID 142,
Command ID 0x44 with IO ID 546,
Command ID 0x44 with IO ID 881
segment.cruise.control.duration
number
seconds
Time period between two consecutive records when Cruise control was on
Command ID 0x01 with IO ID 885,
Command ID 0x01 with IO ID 897,
Command ID 0x44 with IO ID 885,
Command ID 0x44 with IO ID 897
segment.cruise.control.free.rolling.distance
number
km
Distance driven between two consecutive records when CC and Engine are ON, TPS = 0 and RPM is in Free-rolling range
Command ID 0x01 with IO ID 881,
Command ID 0x01 with IO ID 891,
Command ID 0x44 with IO ID 881,
Command ID 0x44 with IO ID 891
segment.cruise.control.free.rolling.fuel.used
number
liters
Fuel used between two consecutive records when CC and Engine are ON, TPS = 0 and RPM is in Free-rolling range
Command ID 0x01 with IO ID 882,
Command ID 0x01 with IO ID 892,
Command ID 0x44 with IO ID 882,
Command ID 0x44 with IO ID 892
segment.cruise.control.fuel.used
number
liters
Fuel used under cruise control during the last segment
Command ID 0x01 with IO ID 547,
Command ID 0x01 with IO ID 882,
Command ID 0x44 with IO ID 547,
Command ID 0x44 with IO ID 882
segment.cruise.control.off.free.rolling.distance
number
km
Distance driven between two consecutive records when CC is OFF, Engine is ON, TPS = 0 and RPM is in Free-rolling range
Command ID 0x01 with IO ID 881,
Command ID 0x01 with IO ID 893,
Command ID 0x44 with IO ID 881,
Command ID 0x44 with IO ID 893
segment.cruise.control.off.free.rolling.fuel.used
number
liters
Fuel used between two consecutive records when CC is OFF, Engine is ON, TPS = 0 and RPM is in Free-rolling range
Command ID 0x01 with IO ID 882,
Command ID 0x01 with IO ID 894,
Command ID 0x44 with IO ID 882,
Command ID 0x44 with IO ID 894
segment.cruise.control.off.retarder.torque.distance
number
km
Distance driven between two consecutive records when retarder torque was above zero and CC was OFF.
Command ID 0x01 with IO ID 885,
Command ID 0x01 with IO ID 896,
Command ID 0x44 with IO ID 885,
Command ID 0x44 with IO ID 896
segment.cruise.control.tps.distance
number
km
Distance driven between two consecutive records when Engine & CC states are ON and TPS is above the configured limit
Command ID 0x01 with IO ID 881,
Command ID 0x01 with IO ID 899,
Command ID 0x44 with IO ID 881,
Command ID 0x44 with IO ID 899
segment.cruise.control.tps.duration
number
seconds
Time period between two consecutive records when Engine & CC states are ON and TPS is above the configured limit
Command ID 0x01 with IO ID 885,
Command ID 0x01 with IO ID 900,
Command ID 0x44 with IO ID 885,
Command ID 0x44 with IO ID 900
segment.cruise.control.tps.fuel.used
number
liters
Fuel used between two consecutive records when Engine & CC states are ON and TPS is above the configured limit
Command ID 0x01 with IO ID 882,
Command ID 0x01 with IO ID 898,
Command ID 0x44 with IO ID 882,
Command ID 0x44 with IO ID 898
segment.engine.on.time
number
seconds
Time when engine was on during the last segment
Command ID 0x01 with IO ID 139,
Command ID 0x01 with IO ID 876,
Command ID 0x44 with IO ID 139,
Command ID 0x44 with IO ID 876
segment.engine.overload.distance
number
km
Distance travelled with overloaded engine during the last segment
Command ID 0x01 with IO ID 542,
Command ID 0x01 with IO ID 880,
Command ID 0x44 with IO ID 542,
Command ID 0x44 with IO ID 880
segment.engine.overload.fuel.used
number
liters
Fuel used while engine was overloaded during the last segment
Command ID 0x01 with IO ID 543,
Command ID 0x01 with IO ID 879,
Command ID 0x44 with IO ID 543,
Command ID 0x44 with IO ID 879
segment.extreme.braking.events
number
The number of extreme braking events during the last segment
segment.free.rolling.distance
number
km
Free rolling distance during the last segment
Command ID 0x01 with IO ID 541,
Command ID 0x01 with IO ID 880,
Command ID 0x44 with IO ID 541,
Command ID 0x44 with IO ID 880
segment.fuel.idle.used
number
liters
Fuel used while idling during the last segment
Command ID 0x01 with IO ID 540,
Command ID 0x01 with IO ID 879,
Command ID 0x44 with IO ID 540,
Command ID 0x44 with IO ID 879
segment.harsh.braking.events
number
The number of harsh braking events during the last segment
segment.highest.gear.distance
number
km
Distance travelled on highest gear during the last segment
Command ID 0x01 with IO ID 548,
Command ID 0x01 with IO ID 880,
Command ID 0x44 with IO ID 548,
Command ID 0x44 with IO ID 880
segment.highest.gear.fuel.used
number
liters
Fuel used when travelling on highest gear during the last segment
Command ID 0x01 with IO ID 549,
Command ID 0x01 with IO ID 879,
Command ID 0x44 with IO ID 549,
Command ID 0x44 with IO ID 879
segment.max.acceleration
number
g
Maximum acceleration value that occurred on the segment
Command ID 0x01 with IO ID 403,
Command ID 0x44 with IO ID 403
segment.max.braking.acceleration
number
g
Maximum braking acceleration value that occurred on the segment
Command ID 0x01 with IO ID 402,
Command ID 0x44 with IO ID 402
segment.max.cornering.acceleration
number
g
Maximum cornering acceleration value that occurred on the segment
Command ID 0x01 with IO ID 404,
Command ID 0x44 with IO ID 404
segment.max.engine.rpm
number
rpm
Maximum engine RPM on segment
Command ID 0x01 with IO ID 133,
Command ID 0x44 with IO ID 133
segment.max.speed
number
km/h
Maximum speed on the segment
Command ID 0x01 with IO ID 130,
Command ID 0x44 with IO ID 130
segment.normal.speed.distance
number
km
Mileage of the segment when vehicle had normal speed
Command ID 0x01 with IO ID 141,
Command ID 0x01 with IO ID 878,
Command ID 0x44 with IO ID 141,
Command ID 0x44 with IO ID 878
segment.overspeeding.distance
number
km
Distance travelled with overspeeding during the last segment
Command ID 0x01 with IO ID 544,
Command ID 0x01 with IO ID 880,
Command ID 0x44 with IO ID 544,
Command ID 0x44 with IO ID 880
segment.overspeeding.fuel.used
number
liters
Fuel used with overspeeding during the last segment
Command ID 0x01 with IO ID 545,
Command ID 0x01 with IO ID 879,
Command ID 0x44 with IO ID 545,
Command ID 0x44 with IO ID 879
segment.overspeeding.time
number
seconds
Time when speed was above limit during the last segment
Command ID 0x01 with IO ID 131,
Command ID 0x44 with IO ID 131
segment.retarder.torque.distance
number
km
Distance driven between two consecutive records when retarder torque was above zero.
Command ID 0x01 with IO ID 885,
Command ID 0x01 with IO ID 895,
Command ID 0x44 with IO ID 885,
Command ID 0x44 with IO ID 895
segment.rpm.green
number
seconds
Time when RPM was optimal during the last segment
Command ID 0x01 with IO ID 140,
Command ID 0x01 with IO ID 877,
Command ID 0x44 with IO ID 140,
Command ID 0x44 with IO ID 877
segment.rpm.range.distance
number
km
Distance travelled with RPM within the specified range during the last segment
Command ID 0x01 with IO ID 550,
Command ID 0x01 with IO ID 552,
Command ID 0x01 with IO ID 554,
Command ID 0x01 with IO ID 556,
Command ID 0x01 with IO ID 883,
Command ID 0x44 with IO ID 550,
Command ID 0x44 with IO ID 552,
Command ID 0x44 with IO ID 554,
Command ID 0x44 with IO ID 556,
Command ID 0x44 with IO ID 883
segment.rpm.range.fuel.used
number
liters
Fuel used when RPM was within the specified range during the last segment during the last segment
Command ID 0x01 with IO ID 551,
Command ID 0x01 with IO ID 553,
Command ID 0x01 with IO ID 555,
Command ID 0x01 with IO ID 557,
Command ID 0x01 with IO ID 884,
Command ID 0x44 with IO ID 551,
Command ID 0x44 with IO ID 553,
Command ID 0x44 with IO ID 555,
Command ID 0x44 with IO ID 557,
Command ID 0x44 with IO ID 884
segment.rpm.red
number
seconds
Time when RPM was not optimal during the last segment
Command ID 0x01 with IO ID 132,
Command ID 0x44 with IO ID 132
segment.rpm.red.distance
number
km
Distance travelled when RPM was not optimal during the last segment
Command ID 0x01 with IO ID 539,
Command ID 0x01 with IO ID 877,
Command ID 0x44 with IO ID 539,
Command ID 0x44 with IO ID 877
segment.vehicle.mileage
number
km
Segment mileage
Command ID 0x01 with IO ID 77,
Command ID 0x44 with IO ID 77
self.calibration.state
number
State of self calibration of accelerometer
Command ID 0x01 with IO ID 905,
Command ID 0x44 with IO ID 905
sensor.frequency
number
hz
Frequency sensor value
Command ID 0x01 with IO ID 507,
Command ID 0x01 with IO ID 508,
Command ID 0x44 with IO ID 507,
Command ID 0x44 with IO ID 508
sensor.humidity
number
percentage
Humidity sensor value, i.e. relative air humidity level
Command ID 0x01 with IO ID 817...820,
Command ID 0x44 with IO ID 817...820
sensor.id
string
Sensor ID
Command ID 0x01 with IO ID 70,
Command ID 0x01 with IO ID 71,
Command ID 0x01 with IO ID 72,
Command ID 0x01 with IO ID 73,
Command ID 0x44 with IO ID 70,
Command ID 0x44 with IO ID 71,
Command ID 0x44 with IO ID 72,
Command ID 0x44 with IO ID 73
sensor.state.bitmask
string
Technoton sensors configuration bitmask, represented as HEX
Command ID 0x01 with IO ID 794...798,
Command ID 0x44 with IO ID 794...798
sensor.temperature
number
celsius
Temperature sensor value
Command ID 0x01 with IO ID 74,
Command ID 0x01 with IO ID 78,
Command ID 0x01 with IO ID 79,
Command ID 0x01 with IO ID 80,
Command ID 0x44 with IO ID 74,
Command ID 0x44 with IO ID 78,
Command ID 0x44 with IO ID 79,
Command ID 0x44 with IO ID 80
sensor.temperature.error
number
Temperature sensor error code
Command ID 0x01 with IO ID 74,
Command ID 0x01 with IO ID 78,
Command ID 0x01 with IO ID 79,
Command ID 0x01 with IO ID 80,
Command ID 0x44 with IO ID 74,
Command ID 0x44 with IO ID 78,
Command ID 0x44 with IO ID 79,
Command ID 0x44 with IO ID 80
server.timestamp
number
seconds
Timestamp when server received a message
shock.duration
number
milliseconds
Duration of shock
Command ID 0x01 with IO ID 576,
Command ID 0x44 with IO ID 576
sleep.timer.wakeup.status
boolean
Device wake-up by timer event
Command ID 0x01 with IO ID 174,
Command ID 0x44 with IO ID 174
spreader.mode
number
Spreader more
Command ID 0x01 with IO ID 490,
Command ID 0x44 with IO ID 490
tacho.card.reader.status
boolean
Tacho card reader state
Command ID 0x01 with IO ID 24,
Command ID 0x44 with IO ID 24
tacho.driver.continuous_driving.duration
number
seconds
Driver continuous driving time
Command ID 0x01 with IO ID 119,
Command ID 0x44 with IO ID 119
tacho.driver.cumulative_break.duration
number
seconds
Driver cumulative break time
Command ID 0x01 with IO ID 120,
Command ID 0x44 with IO ID 120
tacho.driver.cumulative_driving.duration
number
seconds
Driver cumulative driving time
Command ID 0x01 with IO ID 117,
Command ID 0x44 with IO ID 117
tacho.driver.current.activity.duration
number
seconds
Current driver activity duration
Command ID 0x01 with IO ID 118,
Command ID 0x44 with IO ID 118
tacho.driver.daily.before.rest.duration
number
seconds
Time left until new daily rest period read from Tacho, indexed for driver number
Command ID 0x01 with IO ID 853,
Command ID 0x44 with IO ID 853
tacho.driver.next.rest.duration
number
seconds
Duration of next rest period read from Tacho, indexed for driver number
Command ID 0x01 with IO ID 864,
Command ID 0x44 with IO ID 864
tacho.driver.remaining.before.rest.duration
number
seconds
Duration remaining before next rest period read from Tacho, indexed for driver number
Command ID 0x01 with IO ID 866,
Command ID 0x44 with IO ID 866
tacho.driver.remaining.driving.time
number
seconds
Maximum remaining driving time left to next rest period, indexed for driver number
Command ID 0x01 with IO ID 859,
Command ID 0x44 with IO ID 859
tacho.driver.time.enum
number
Driver time states
Command ID 0x01 with IO ID 121,
Command ID 0x44 with IO ID 121
tacho.driver.weekly.before.rest.duration
number
seconds
Time left until new weekly rest period read from Tacho, indexed for driver number
Command ID 0x01 with IO ID 854,
Command ID 0x44 with IO ID 854
tacho.engine.rpm
number
rpm
Engine RPM reported by tacho
Command ID 0x01 with IO ID 166,
Command ID 0x44 with IO ID 166
tacho.first.driver.card.status
boolean
Tacho card of first driver presence
Command ID 0x01 with IO ID 161,
Command ID 0x44 with IO ID 161
tacho.fms.driver.id
string
Indexed Driver ID read from Tacho FMS
Command ID 0x01 with IO ID 155,
Command ID 0x01 with IO ID 156,
Command ID 0x01 with IO ID 157,
Command ID 0x01 with IO ID 158,
Command ID 0x44 with IO ID 155,
Command ID 0x44 with IO ID 156,
Command ID 0x44 with IO ID 157,
Command ID 0x44 with IO ID 158
tacho.fms.driver.status.enum
number
Indexed driver state from Tacho FMS
Command ID 0x01 with IO ID 159,
Command ID 0x01 with IO ID 160,
Command ID 0x44 with IO ID 159,
Command ID 0x44 with IO ID 160
tacho.position.speed
number
km/h
Instant speed reported by tacho
Command ID 0x01 with IO ID 165,
Command ID 0x44 with IO ID 165
tacho.registration.code
string
Tacho registration number
Command ID 0x01 with IO ID 167,
Command ID 0x01 with IO ID 168,
Command ID 0x44 with IO ID 167,
Command ID 0x44 with IO ID 168
tacho.second.driver.card.status
boolean
Tacho card of second driver presence
Command ID 0x01 with IO ID 162,
Command ID 0x44 with IO ID 162
tacho.trip.mileage
number
km
Trip mileage calculated by tacho
Command ID 0x01 with IO ID 164,
Command ID 0x44 with IO ID 164
tacho.vehicle.id
string
CAN tachograph vehicle ID
Command ID 0x01 with IO ID 152,
Command ID 0x01 with IO ID 153,
Command ID 0x01 with IO ID 154,
Command ID 0x44 with IO ID 152,
Command ID 0x44 with IO ID 153,
Command ID 0x44 with IO ID 154
tacho.vehicle.mileage
number
km
Total mileage calculated by tacho
Command ID 0x01 with IO ID 163,
Command ID 0x44 with IO ID 163
tamper.alarm
boolean
Tamper alarm event
Command ID 0x01 with IO ID 758,
Command ID 0x44 with IO ID 758
timestamp
number
seconds
Message timestamp
Command ID 0x01,
Command ID 0x05,
Command ID 0x0B,
Command ID 0x0E,
Command ID 0x26,
Command ID 0x44
timestamp.key
number
Message timestamp in seconds with message sequence number appended as the value fractional part. Used to distinguish between several messages that have the same timestamp.
Command ID 0x01,
Command ID 0x44
tire.pressure.bitmask
number
Tire pressure measurement system message
Command ID 0x01 with IO ID 256...291,
Command ID 0x44 with IO ID 256...291
total.idle.time
number
seconds
Total time that vehicle was in idling state
Command ID 0x01 with IO ID 175,
Command ID 0x01 with IO ID 876,
Command ID 0x44 with IO ID 175,
Command ID 0x44 with IO ID 876
towing.alarm.status
boolean
Towing alarm state
Command ID 0x01 with IO ID 410,
Command ID 0x44 with IO ID 410
trailer.braking.wheel.speed
number
km/h
Trailers Braking system wheel–based vehicle speed
Command ID 0x01 with IO ID 563,
Command ID 0x44 with IO ID 563
trailer.lateral.acceleration
number
m/s^2
Trailers Lateral acceleration
Command ID 0x01 with IO ID 565,
Command ID 0x44 with IO ID 565
trailer.main.axle.wheel.diff.speed
number
km/h
Trailers Wheel speed difference main axle
Command ID 0x01 with IO ID 564,
Command ID 0x44 with IO ID 564
trailer.state.bitmask
number
Trailer status
Command ID 0x01 with IO ID 561,
Command ID 0x01 with IO ID 562,
Command ID 0x44 with IO ID 561,
Command ID 0x44 with IO ID 562
trailer.vin
string
Trailer VIN
Command ID 0x01 with IO ID 614...616,
Command ID 0x44 with IO ID 614...616
trailer.wireless.id
string
Trailer wireless ID
Command ID 0x01 with IO ID 823,
Command ID 0x01 with IO ID 824,
Command ID 0x01 with IO ID 825,
Command ID 0x44 with IO ID 823,
Command ID 0x44 with IO ID 824,
Command ID 0x44 with IO ID 825
trip.state.enum
number
Trip status
Command ID 0x01 with IO ID 583,
Command ID 0x44 with IO ID 583
trip.type
string
Trip type. 0 - Private, 1 - Business, 255 - Not available
Command ID 0x01 with IO ID 806,
Command ID 0x44 with IO ID 806
ubi.process.status
boolean
UBI data saving is in process
Command ID 0x01 with IO ID 559,
Command ID 0x44 with IO ID 559
umts.enabled
boolean
UMTS enabled
Command ID 0x01 with IO ID 414,
Command ID 0x44 with IO ID 414
vehicle.mileage
number
km
Total calculated mileage
Command ID 0x01 with IO ID 65,
Command ID 0x44 with IO ID 65
vehicle.vin
string
VIN of vehicle
Command ID 0x01 with IO ID 104,
Command ID 0x01 with IO ID 105,
Command ID 0x01 with IO ID 106,
Command ID 0x01 with IO ID 939,
Command ID 0x01 with IO ID 940,
Command ID 0x01 with IO ID 941,
Command ID 0x44 with IO ID 104,
Command ID 0x44 with IO ID 105,
Command ID 0x44 with IO ID 106,
Command ID 0x44 with IO ID 939,
Command ID 0x44 with IO ID 940,
Command ID 0x44 with IO ID 941
virtual.engine.ignition.status
boolean
Virtual engine ignition status
Command ID 0x01 with IO ID 251,
Command ID 0x44 with IO ID 251
wireless.enabled
boolean
Wireless enabled
Command ID 0x01 with IO ID 413,
Command ID 0x44 with IO ID 413
wireless.pair.status
boolean
Wireless Pair
Command ID 0x01 with IO ID 416,
Command ID 0x44 with IO ID 416
x.acceleration
number
g
Accelerometer value X
Command ID 0x01 with IO ID 49,
Command ID 0x44 with IO ID 49
x.axis.angle
number
degrees
X-axis angle to horizon
Command ID 0x01 with IO ID 611,
Command ID 0x44 with IO ID 611
y.acceleration
number
g
Accelerometer value Y
Command ID 0x01 with IO ID 50,
Command ID 0x44 with IO ID 50
y.axis.angle
number
degrees
Y-axis angle to horizon
Command ID 0x01 with IO ID 612,
Command ID 0x44 with IO ID 612
z.acceleration
number
g
Accelerometer value Z
Command ID 0x01 with IO ID 51,
Command ID 0x44 with IO ID 51
z.axis.angle
number
degrees
Z-axis angle to horizon
Command ID 0x01 with IO ID 613,
Command ID 0x44 with IO ID 613
Title
Name
Description
Properties
Add Authorized ID
authid_add
Add peripheral (iButton, RFID, or magnetic card) ID, that is allowed to unblock or register
auth_id: Authorized ID
Delete Authorized ID
authid_delete
Delete peripheral (iButton, RFID, or magnetic card) ID, that is allowed to unblock or register
auth_id: Authorized ID
Connection data
connection
Connection data
apn: APN
server: Server
protocol: Protocol
secondary_server: Secondary server
Get GPS
coords
Get current GPS status and coordinates
Dynamic Identification
device_info_fm5
Device Identification information provided on every device connection
imsi: IMSI
fw_ver: Firmware Version
hw_ver: Hardware Version
cfg_tag: CFG Tag
boot_ver: Bootloader Version
dev_type: Device Type
angl_coef: Angle Coefficient
dist_coef: Distance Coefficient
time_coef: Time Coefficient
gsm_operator: GSM Operator
last_cfg_change: Last CFG Change
Reset the state of activated DOUTs
doutreset
Force device to connect to server for one time
econnect
Force device to connect (for one time) to server with custom APN, user, pass, IP, port and protocol settings. Device creates dummy record just with header part. Triggered event ID = 0.
ip: IP Address
port: Port
apn_name: APN Name
protocol: Protocol
apn_login: APN Login
apn_password: APN Password
Immobilize the vehicle
immobilizer
speed: Speed
Reset Device
reset
Reset (reboot) the device
Reset imoobilizer functionality
resetimmob
Setio
setio4
Set Dout 1 to 4 output level.
dout1: Dout 1
dout2: Dout 2
dout3: Dout 3
dout4: Dout 4
Setiotime
setiotime4
Set Dout 1 to 4 output level for temporary period.
dout1: Dout 1
dout2: Dout 2
dout3: Dout 3
dout4: Dout 4
Locking vehicle command
setlock
ath: Engine block
lock: Lock
status: Command execution status
Title
Name
Description
Properties
Custom Command
custom
Send command over GPRS
hex: Command payload is encoded as HEX string
payload: Command payload
command_id: Command ID
Send Data to Germin Device
{"hex":true,"payload":"64617461","command_id":131}
Get Status of Garmin Device
{"payload":"","command_id":130}
Request Diagnostic Trouble Codes from Device
{"hex":true,"payload":"02","command_id":109}
Set output 1 to OFF, output 2 leave unchanged, and output 3 to ON
{"payload":"setio 0,2,1","command_id":108}
Request tachograph file
request_tachograph_file
Request DDD file from tachograph
type: DDD slot
Send data over Serial port
serial_port
Send data using 114 Transparent Channel data command

More devices from Ruptela (26)

Device
Protocol
Manufacturer
Tags
Ruptela Eco5
ruptela
Ruptela
asset
battery
bluetooth
glonass
lte
trailer
vehicle
Ruptela FM-Eco3
ruptela
Ruptela
1-wire
can
glonass
rs-232
vehicle
Ruptela FM-Eco4
ruptela
Ruptela
1-wire
battery
glonass
ip67
vehicle
Ruptela FM-Eco4+ 3G E RS T
ruptela
Ruptela
1-wire
battery
rs-232
vehicle
Ruptela FM-Eco4+ 3G E T
ruptela
Ruptela
1-wire
battery
ip67
vehicle
Ruptela FM-Eco4+ 3G T
ruptela
Ruptela
1-wire
battery
ip67
vehicle
Ruptela FM-Eco4+ E T
ruptela
Ruptela
1-wire
battery
ip67
vehicle
Ruptela FM-Eco4 light
ruptela
Ruptela
1-wire
battery
glonass
vehicle
Ruptela FM-Eco4 light+ 3G RS T
ruptela
Ruptela
1-wire
battery
ip67
rs-232
vehicle
Ruptela FM-Eco4+ light 3G T
ruptela
Ruptela
1-wire
battery
vehicle
