WanWay S20 Pro

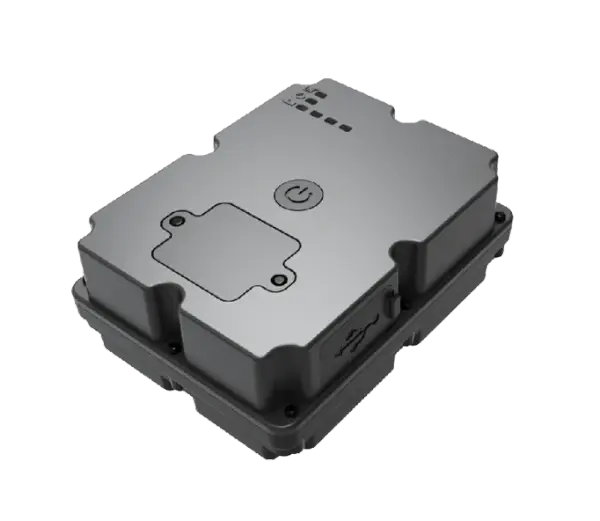

WanWayTech S20 Pro is a battery-powered 4G GPS asset tracker designed for long-standby tracking of containers, logistics cargo, valuables, personnel, and some vehicles. Manufacturer and manual sources describe a 7500mAh rechargeable battery, Type-C charging, strong magnetic mounting, real-time tracking, light/disassembly alarms, and SOS emergency triggering. Retrieved manual data lists GPS technology, ≤5 m accuracy, 95 x 72 x 35 mm dimensions, and a -20°C to 75°C operating range. Search results from manufacturer-linked materials also describe the unit as IP67 waterproof and app-managed through TrackerOne.

Protocol: wanway Manufacturer: Shanghai WanWay Digital Technology Co., Ltd. Change log: wanway

Usage specifics

Parameters (106)

Commands (1)

Here’s the like of JSON you get

{
    "ident": "352625333222111",
    "position.altitude": 273.61,
    "position.hdop": 0.7,
    "position.latitude": 49.069782,
    "position.longitude": 28.632826,
    "position.satellites": 18,
    "server.timestamp": 1650636570.426424,
    "timestamp": 1650636570.426424,
    "device.type.id": "WanWay S20 Pro",
    "channel.id": 1111,
    "protocol.id": "wanway"
    "engine.ignition.status": true
    ...
}

How to consume this nice JSON

The easiest way is to make a REST API request like this

curl -X GET  --header 'Authorization: FlespiToken XXX' 'https://flespi.io/gw/devices/<device id>/messages'

Explore REST API Show more ways to consume data How to connect my WanWay S20 Pro to flespi

How to send commands to WanWay S20 Pro?

You can send a specific command. Show all commands

You can also

Modify messages

Add or remove parameters, inject data from LBS and reverse-geocoding services, etc.

Learn what plugins can do

Aggregate data

Determine trips and stops, catch events, detect geofence ins/outs, and more.

Learn about flespi analytics capabilities

Name

Type

Unit

Description

Sources

acc.off.alarm

boolean

ACC OFF alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

acc.on.alarm

boolean

ACC ON alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

alarm.flags.bitmask

number

Alarm flags bitmask

Sub-ID 0x0089 of Extension ID 0xEB of Message ID 0x0200

alarm.sign.bitmask

number

Alarm sign bitmask

Message ID 0x0200

battery.charging.status

boolean

Battery charging status

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

battery.level

number

percentage

Internal battery level

Message ID 0x0002,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26,
Sub-ID 0x00A8 of Extension ID 0xEB of Message ID 0x0200

battery.low.alarm

boolean

Battery low alarm event

Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

beidou.satellites.status

boolean

BeiDou positioning system status

Message ID 0x0200

camera.failure.alarm

boolean

Camera failure alarm event

Message ID 0x0200

can.air.condition.status

boolean

CAN air conditioning is on

Protocol Number 0x94 with Information Type 0x05

can.central.lock.status

boolean

CAN central lock is locked

Message ID 0x0200

channel.id

number

ID of channel that received a message

crash.event

boolean

Crash event detected

Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

cumulative.driving.alarm

boolean

Cumulative driving time in one day alarm event

Message ID 0x0200

custom

any

Any custom parameter

danger.alarm

boolean

Danger alarm event

Message ID 0x0200

defense.active.status

boolean

Defense activated status

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

device.id

number

ID of device that received a message

device.imei

string

IMEI of the device

Protocol Number 0x94 with Information Type 0x0A,
Sub-ID 0x00D5 of Extension ID 0xEB of Message ID 0x0200

device.name

string

Name of device that received a message

device.type.id

number

ID of device type of device that received a message

door.alarm

boolean

Door alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

door.open.status

boolean

Door open status

Message ID 0x0200

dsm.fatigue.event

boolean

Driver fatigue event generated by Driver status monitoring system (DSM)

Message ID 0x0200

engine.blocked.status

boolean

Engine blocked status (fuel cutoff relay), true - engine is blocked, false - engine isn't blocked

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

engine.ignition.status

boolean

Engine ignition or ACC status

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26

event.enum

number

Protocol-specific event code

Message ID

event.seqnum

number

Unique event sequence number

external.battery.low.alarm

boolean

External battery low alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

external.battery.protection.low.alarm

boolean

External battery low protection alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

external.powersource.voltage

number

volts

External power voltage

Protocol Number 0x94 with Information Type 0x00,
Sub-ID 0x002D of Extension ID 0xEB of Message ID 0x0200

fuel.level.alarm

boolean

Fuel level alarm triggered

Message ID 0x0200

galileo.satellites.status

boolean

Galileo positioning system status

Message ID 0x0200

geofence.alarm

boolean

Geofence alarm event

Message ID 0x0200

geofence.status

boolean

Geofence entered status

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

glonass.satellites.status

boolean

Glonass positioning system status

Message ID 0x0200

gnss.antenna.disconnected.alarm

boolean

GNSS antenna disconnected or cut off alarm event

Message ID 0x0200

gnss.antenna.short.circuit.alarm

boolean

GNSS antenna short circuit alarm event

Message ID 0x0200

gnss.failure.alarm

boolean

GNSS receiver failure alarm event

Message ID 0x0200

gnss.realtime.status

boolean

True - GNSS realtime positioning, False - differential positioning

Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26

gnss.signal.status

boolean

True - GNSS signal is present, False - GNSS signal is lost

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

gnss.status

boolean

GNSS receiver on/off status

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

gps.satellites.status

boolean

GPS positioning system status

Message ID 0x0200

gsm.cellid

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) base station ID

Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x24,
Protocol Number 0x26,
Sub-ID 0x00D8 of Extension ID 0xEB of Message ID 0x0200

gsm.jamming.event

boolean

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal jamming detected

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

gsm.lac

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) location area code

Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x24,
Protocol Number 0x26,
Sub-ID 0x00D8 of Extension ID 0xEB of Message ID 0x0200

gsm.mcc

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) country code

Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x24,
Protocol Number 0x26,
Sub-ID 0x00D8 of Extension ID 0xEB of Message ID 0x0200

gsm.mnc

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) code

Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x24,
Protocol Number 0x26,
Sub-ID 0x00D8 of Extension ID 0xEB of Message ID 0x0200

gsm.signal.dbm

number

dbm

Strength of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal

Protocol Number 0x24

gsm.signal.level

number

percentage

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal strength level

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

gsm.signal.quality

number

The quality (bit error rate) of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal

Extension ID 0x30 of Message ID 0x0200,
Message ID 0x0002

gsm.sim.iccid

string

Integrated Circuit Card Id of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)

Protocol Number 0x94 with Information Type 0x0A,
Sub-ID 0x00B2 of Extension ID 0xEB of Message ID 0x0200

gsm.sim.imsi

string

IMSI of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)

Protocol Number 0x94 with Information Type 0x0A

gsm.timing.advance

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) timing advance

Protocol Number 0x24

harsh.acceleration.event

boolean

Harsh acceleration detected

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

harsh.braking.event

boolean

Harsh braking detected

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

harsh.cornering.event

boolean

Harsh cornering detected

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

ic.card.module.failure.alarm

boolean

IC card module failure alarm event

Message ID 0x0200

ident

string

Device unique identifier like serial number, IMEI, etc

idle.event

boolean

Idle detected

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

illegal.ignition.alarm

boolean

Illegal ignition alarm event

Message ID 0x0200

illegal.movement.alarm

boolean

Illegal movement alarm event

Message ID 0x0200

language

string

Language used on the device

Protocol Number 0x13,
Protocol Number 0x15,
Protocol Number 0x16,
Protocol Number 0x26

lcd.failure.alarm

boolean

LCD display failure alarm event

Message ID 0x0200

light.alarm

boolean

Light alarm active/not active status

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

message.buffered.status

boolean

Black box message

Protocol Number 0x22

movement.event

boolean

Movement detected

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

overspeeding.event

boolean

Overspeeding detected

Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

peer

string

IP:port from which device connecting to the channel

position.altitude

number

meters

Altitude value for position

Message ID 0x0200

position.direction

number

degrees

Heading angle at position detection moment

Message ID 0x0200,
Protocol Number 0x15

position.latitude

number

degrees

Latitude coordinate value

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x15,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26

position.longitude

number

degrees

Longitude coordinate value

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x15,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26

position.satellites

number

Quantity of satellites used to calculate coordinates for given position information

Extension ID 0x31 of Message ID 0x0200

position.source

string

Source of position.latitude and position.longitude parameters if they were received from other systems than GNSS, i.e. lbs, wifi

Sub-ID 0x00C5 of Extension ID 0xEB of Message ID 0x0200

position.speed

number

km/h

Instant speed at position detection moment

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x15,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26

position.valid

boolean

Is position information accurate and valid for given timestamp

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x26

power.cut.alarm

boolean

External power cut-off alarm event

Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

power.state.enum

number

Power state

Message ID 0x0002

power.status

boolean

True - power is ON, False - power is OFF

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

protocol.id

number

ID of protocol

protocol.number

number

Protocol number

rfid.code

string

Hexadecimal code of connected RFID

Protocol Number 0x94 with Information Type 0x1B

rollover.event

boolean

Roll over event detected

Message ID 0x0200

route.alarm

boolean

Route alarm event

Message ID 0x0200

route.deviation.alarm

boolean

Route deviation alarm event

Message ID 0x0200

route.time.alarm

boolean

Route time alarm event

Message ID 0x0200

sensor.door.status

boolean

Door opening status detected by sensor: true - opened, false - closed

Protocol Number 0x94 with Information Type 0x05

sensor.id

string

Sensor ID

Protocol Number 0x94 with Information Type 0x15

sensor.temperature

number

celsius

Temperature sensor value

Protocol Number 0x94 with Information Type 0x15

server.timestamp

number

seconds

Timestamp when server received a message

shutdown.alarm

boolean

Shutdown alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

sleep.mode.alarm

boolean

Sleep mode alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

sos.alarm

boolean

SOS alarm triggerred

Message ID 0x0200,
Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

status.bitmask

number

Status bitmask

Message ID 0x0200

tamper.alarm

boolean

Tamper alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

theft.alarm

boolean

Theft alarm

Message ID 0x0200

time.limit.alarm

boolean

Time limit expired alarm event

Message ID 0x0200

timestamp

number

seconds

Message timestamp

Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x15,
Protocol Number 0x16,
Protocol Number 0x22,
Protocol Number 0x24,
Protocol Number 0x26

tts.module.failure.alarm

boolean

Text-to-speech module failure alarm event

Message ID 0x0200

unauthorized.alarm

boolean

Unauthorized access alarm event

Message ID 0x0200

vehicle.mileage

number

Total calculated mileage

Extension ID 0x01 of Message ID 0x0200,
Protocol Number 0x12,
Protocol Number 0x22

vehicle.oil.circuit.status

boolean

Vehicle Oil circuit status

Message ID 0x0200

vehicle.rolling.alarm

boolean

Vehicle is rolling alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26

vibration.alarm

boolean

Vibration alarm event

Protocol Number 0x13,
Protocol Number 0x16,
Protocol Number 0x26,
Sub-ID 0x00C5 of Extension ID 0xEB of Message ID 0x0200

vss.failure.alarm

boolean

Vehicle security system failure alarm event

Message ID 0x0200

Title

Name

Description

Properties

Custom command Examples

custom

Send custom command to device

payload: Command payload

Cutting Oil and Electricity

{"payload":"RELAY,1#"}

Connecting Oil and Electricity

{"payload":"RELAY,0#"}

WanWay S20 Pro

Here’s the like of JSON you get

How to consume this nice JSON

How to send commands to WanWay S20 Pro?

You can also

Modify messages

Aggregate data

More devices from Shanghai WanWay Digital Technology Co., Ltd. (8)
