Trak-IoT Protocol.
flespi parses the Trak-iot protocol messages into a JSON object with the fields listed below in the Parameters tab.
Access parsed data via MQTT & REST API Send commands to configure devices Check protocol changelog
All protocols
Usage specifics Parameters (45) Devices (6) Changelog

Trak-IoT Protocol

Name
Type
Unit
Description
Sources
channel.id
number
ID of channel that received a message
device.id
number
ID of device that received a message
device.model
string
Device model ID string
Tag 0x2406 of Frame Type 0x0101,
Tag 0x2406 of Frame Type 0x0102,
Tag 0x2406 of Frame Type 0x0103,
Tag 0x2406 of Frame Type 0x0104
device.name
string
Name of device that received a message
Tag 0x2400 of Frame Type 0x0101,
Tag 0x2400 of Frame Type 0x0102,
Tag 0x2400 of Frame Type 0x0103,
Tag 0x2400 of Frame Type 0x0104,
Tag 0x2406 of Frame Type 0x0101,
Tag 0x2406 of Frame Type 0x0102,
Tag 0x2406 of Frame Type 0x0103,
Tag 0x2406 of Frame Type 0x0104
device.type.id
number
ID of device type of device that received a message
din
number
Digital inputs bitmask
Tag 0x2970 of Frame Type 0x0101,
Tag 0x2970 of Frame Type 0x0102,
Tag 0x2970 of Frame Type 0x0103,
Tag 0x2970 of Frame Type 0x0104
engine.ignition.status
boolean
Engine ignition or ACC status
Tag 0x2310 of Frame Type 0x0101,
Tag 0x2310 of Frame Type 0x0102,
Tag 0x2310 of Frame Type 0x0103,
Tag 0x2310 of Frame Type 0x0104
event.seqnum
number
Unique event sequence number
Frame serial number
external.powersource.status
boolean
External power source connection status
Tag 0x2310 of Frame Type 0x0101,
Tag 0x2310 of Frame Type 0x0102,
Tag 0x2310 of Frame Type 0x0103,
Tag 0x2310 of Frame Type 0x0104,
Tag 0x2415 of Frame Type 0x0101,
Tag 0x2415 of Frame Type 0x0102,
Tag 0x2415 of Frame Type 0x0103,
Tag 0x2415 of Frame Type 0x0104
external.powersource.voltage
number
volts
External power voltage
Tag 0x2415 of Frame Type 0x0101,
Tag 0x2415 of Frame Type 0x0102,
Tag 0x2415 of Frame Type 0x0103,
Tag 0x2415 of Frame Type 0x0104
geofence.id
number
Geofence ID
Frame Type 0x0103,
Frame Type 0x0104,
Tag 0x2160 of Frame Type 0x0101,
Tag 0x2160 of Frame Type 0x0102,
Tag 0x2184 of Frame Type 0x0101,
Tag 0x2184 of Frame Type 0x0102
geofence.in.alarm
boolean
Geofence in alarm event
Frame Type 0x0103,
Frame Type 0x0104,
Tag 0x2160 of Frame Type 0x0101,
Tag 0x2160 of Frame Type 0x0102,
Tag 0x2184 of Frame Type 0x0101,
Tag 0x2184 of Frame Type 0x0102
geofence.out.alarm
boolean
Geofence out alarm event
Frame Type 0x0103,
Frame Type 0x0104,
Tag 0x2160 of Frame Type 0x0101,
Tag 0x2160 of Frame Type 0x0102,
Tag 0x2184 of Frame Type 0x0101,
Tag 0x2184 of Frame Type 0x0102
gsm.cellid
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) base station ID
Tag 0x2130 of Frame Type 0x0101,
Tag 0x2130 of Frame Type 0x0102,
Tag 0x2130 of Frame Type 0x0103,
Tag 0x2130 of Frame Type 0x0104
gsm.lac
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) location area code
Tag 0x2130 of Frame Type 0x0101,
Tag 0x2130 of Frame Type 0x0102,
Tag 0x2130 of Frame Type 0x0103,
Tag 0x2130 of Frame Type 0x0104
gsm.mcc
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) country code
Tag 0x2130 of Frame Type 0x0101,
Tag 0x2130 of Frame Type 0x0102,
Tag 0x2130 of Frame Type 0x0103,
Tag 0x2130 of Frame Type 0x0104
gsm.mnc
number
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) code
Tag 0x2130 of Frame Type 0x0101,
Tag 0x2130 of Frame Type 0x0102,
Tag 0x2130 of Frame Type 0x0103,
Tag 0x2130 of Frame Type 0x0104
gsm.network.type
string
The type of the Mobile network the device is currently registered to
Frame Type 0x0103,
Frame Type 0x0104,
Tag 0x2415 of Frame Type 0x0101,
Tag 0x2415 of Frame Type 0x0102,
Tag 0x2460 of Frame Type 0x0101,
Tag 0x2460 of Frame Type 0x0102
gsm.signal.quality
number
The quality (bit error rate) of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal
Tag 0x2415 of Frame Type 0x0101,
Tag 0x2415 of Frame Type 0x0102,
Tag 0x2415 of Frame Type 0x0103,
Tag 0x2415 of Frame Type 0x0104
gsm.sim.iccid
string
Integrated Circuit Card Id of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)
Tag 0x2415 of Frame Type 0x0101,
Tag 0x2415 of Frame Type 0x0102,
Tag 0x2415 of Frame Type 0x0103,
Tag 0x2415 of Frame Type 0x0104
hardware.version
string
Hardware version
Tag 0x2406 of Frame Type 0x0101,
Tag 0x2406 of Frame Type 0x0102,
Tag 0x2406 of Frame Type 0x0103,
Tag 0x2406 of Frame Type 0x0104
ident
string
Device unique identifier like serial number, IMEI, etc
idle.status
boolean
Vehicle is in idling state
Tag 0x26F0 of Frame Type 0x0101,
Tag 0x26F0 of Frame Type 0x0102,
Tag 0x26F0 of Frame Type 0x0103,
Tag 0x26F0 of Frame Type 0x0104
long.idling.alarm
boolean
Overrun idling time alarm
Tag 0x2310 of Frame Type 0x0101,
Tag 0x2310 of Frame Type 0x0102,
Tag 0x2310 of Frame Type 0x0103,
Tag 0x2310 of Frame Type 0x0104
modem.firmware.version
string
Firmware version of the modem
Tag 0x2406 of Frame Type 0x0101,
Tag 0x2406 of Frame Type 0x0102,
Tag 0x2406 of Frame Type 0x0103,
Tag 0x2406 of Frame Type 0x0104
network.signal.rssi
number
dbm
Network signal strength
Tag 0x2415 of Frame Type 0x0101,
Tag 0x2415 of Frame Type 0x0102,
Tag 0x2415 of Frame Type 0x0103,
Tag 0x2415 of Frame Type 0x0104
peer
string
IP:port from which device connecting to the channel
position.accuracy
number
meters
Position data accuracy in meters
Tag 0x2095 of Frame Type 0x0101,
Tag 0x2095 of Frame Type 0x0102,
Tag 0x2095 of Frame Type 0x0103,
Tag 0x2095 of Frame Type 0x0104
position.altitude
number
meters
Altitude value for position
Tag 0x2095 of Frame Type 0x0101,
Tag 0x2095 of Frame Type 0x0102,
Tag 0x2095 of Frame Type 0x0103,
Tag 0x2095 of Frame Type 0x0104
position.direction
number
degrees
Heading angle at position detection moment
Tag 0x2095 of Frame Type 0x0101,
Tag 0x2095 of Frame Type 0x0102,
Tag 0x2095 of Frame Type 0x0103,
Tag 0x2095 of Frame Type 0x0104
position.fix.enum
number
Protocol-specific position fix type
Tag 0x2210 of Frame Type 0x0101,
Tag 0x2210 of Frame Type 0x0102,
Tag 0x2210 of Frame Type 0x0103,
Tag 0x2210 of Frame Type 0x0104
position.latitude
number
degrees
Latitude coordinate value
Tag 0x2094 of Frame Type 0x0101,
Tag 0x2094 of Frame Type 0x0102,
Tag 0x2094 of Frame Type 0x0103,
Tag 0x2094 of Frame Type 0x0104,
Tag 0x2095 of Frame Type 0x0101,
Tag 0x2095 of Frame Type 0x0102,
Tag 0x2095 of Frame Type 0x0103,
Tag 0x2095 of Frame Type 0x0104
position.longitude
number
degrees
Longitude coordinate value
Tag 0x2094 of Frame Type 0x0101,
Tag 0x2094 of Frame Type 0x0102,
Tag 0x2094 of Frame Type 0x0103,
Tag 0x2094 of Frame Type 0x0104,
Tag 0x2095 of Frame Type 0x0101,
Tag 0x2095 of Frame Type 0x0102,
Tag 0x2095 of Frame Type 0x0103,
Tag 0x2095 of Frame Type 0x0104
position.speed
number
km/h
Instant speed at position detection moment
Tag 0x2095 of Frame Type 0x0101,
Tag 0x2095 of Frame Type 0x0102,
Tag 0x2095 of Frame Type 0x0103,
Tag 0x2095 of Frame Type 0x0104
power.off.event
boolean
Device power off event
Tag 0x2310 of Frame Type 0x0101,
Tag 0x2310 of Frame Type 0x0102,
Tag 0x2310 of Frame Type 0x0103,
Tag 0x2310 of Frame Type 0x0104
protocol.id
number
ID of protocol
reference.id
number
Identifier (timestamp) of the original message this message references
Tag 0x2094 of Frame Type 0x0101,
Tag 0x2094 of Frame Type 0x0102,
Tag 0x2094 of Frame Type 0x0103,
Tag 0x2094 of Frame Type 0x0104,
Tag 0x2095 of Frame Type 0x0101,
Tag 0x2095 of Frame Type 0x0102,
Tag 0x2095 of Frame Type 0x0103,
Tag 0x2095 of Frame Type 0x0104,
Tag 0x2130 of Frame Type 0x0101,
Tag 0x2130 of Frame Type 0x0102,
Tag 0x2130 of Frame Type 0x0103,
Tag 0x2130 of Frame Type 0x0104
report.code
string
Report code
report.reason
number
Transmission reason code
Tag 0x2310 of Frame Type 0x0101,
Tag 0x2310 of Frame Type 0x0102,
Tag 0x2310 of Frame Type 0x0103,
Tag 0x2310 of Frame Type 0x0104
server.timestamp
number
seconds
Timestamp when server received a message
timestamp
number
seconds
Message timestamp
Tag 0x2095 of Frame Type 0x0101,
Tag 0x2095 of Frame Type 0x0102,
Tag 0x2095 of Frame Type 0x0103,
Tag 0x2095 of Frame Type 0x0104,
Tag 0x2130 of Frame Type 0x0101,
Tag 0x2130 of Frame Type 0x0102,
Tag 0x2130 of Frame Type 0x0103,
Tag 0x2130 of Frame Type 0x0104,
Tag 0x23A3 of Frame Type 0x0101,
Tag 0x23A3 of Frame Type 0x0102,
Tag 0x23A3 of Frame Type 0x0103,
Tag 0x23A3 of Frame Type 0x0104
towing.event
boolean
Towing event detected
Tag 0x2310 of Frame Type 0x0101,
Tag 0x2310 of Frame Type 0x0102,
Tag 0x2310 of Frame Type 0x0103,
Tag 0x2310 of Frame Type 0x0104
vehicle.collision.alarm
boolean
Ordinary vehicle collision alarm
Tag 0x2310 of Frame Type 0x0101,
Tag 0x2310 of Frame Type 0x0102,
Tag 0x2310 of Frame Type 0x0103,
Tag 0x2310 of Frame Type 0x0104
vehicle.mileage
number
km
Total calculated mileage
Tag 0x240C of Frame Type 0x0101,
Tag 0x240C of Frame Type 0x0102,
Tag 0x240C of Frame Type 0x0103,
Tag 0x240C of Frame Type 0x0104,
Tag 0x2415 of Frame Type 0x0101,
Tag 0x2415 of Frame Type 0x0102,
Tag 0x2415 of Frame Type 0x0103,
Tag 0x2415 of Frame Type 0x0104
vibration.alarm
boolean
Vibration alarm event
Tag 0x2310 of Frame Type 0x0101,
Tag 0x2310 of Frame Type 0x0102,
Tag 0x2310 of Frame Type 0x0103,
Tag 0x2310 of Frame Type 0x0104
Device
Manufacturer
Tags
Trak-IoT TC01
Trak-IoT
battery
glonass
vehicle
Trak-IoT TC02
Trak-IoT
battery
glonass
lte
vehicle
Trak-IoT TC06
Trak-IoT
battery
lte
vehicle
Trak-IoT TC10
Trak-IoT
1-wire
battery
bluetooth
glonass
ip65
lock
lte
rs-232
rs-485
sos
vehicle

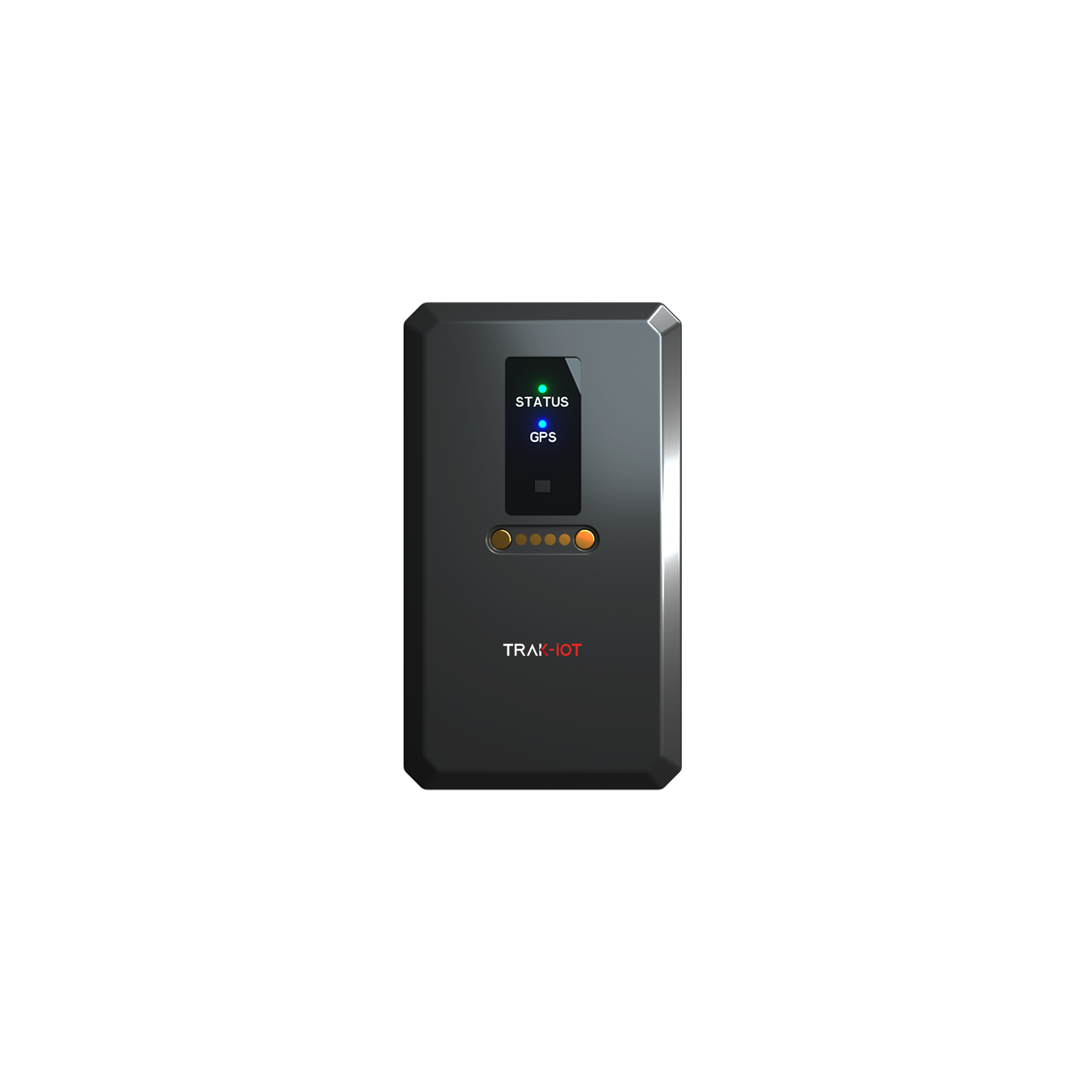

Trak-IoT TW01
Trak-IoT
asset
battery
glonass
ip67
lte
magnetic

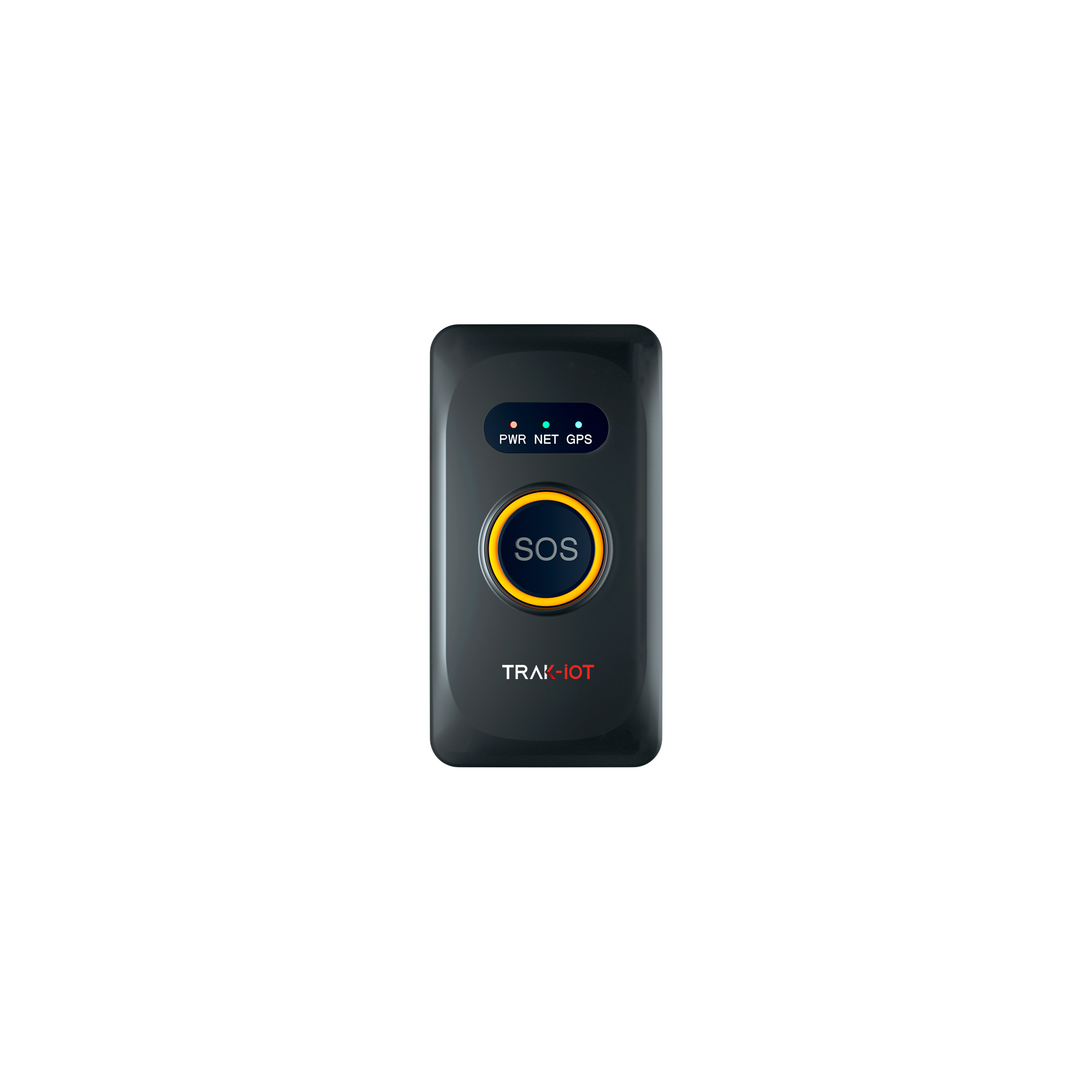

Trak-IoT TW02
Trak-IoT
asset
battery
glonass
ip66
lte
sos
