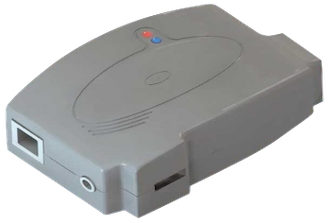

Lantrix T1700

Lantrix T1700 is a compact, professional GPS vehicle tracker for fleet management, security, and logistics. It features dual SIM connectivity, 3G/4G LTE with 2G/3G fallback, high-sensitivity GPS that works indoors, internal backup battery, and configurable rules for real-time tracking and alerts. The device offers multiple digital and analog inputs, open-collector outputs for immobilizer/locks, geofencing, overspeed and ignition detection, SOS button input, and driver ID via iButton/RFID.

Make your Lantrix T1700 devices a part of any infrastructure by connecting them via flespi telematics hub. Manage the device settings using flespi device management platform. Learn how to configure Lantrix T1700 with flespi.

Protocol: lantrix Manufacturer: Lantrix Change log: lantrix

Usage specifics

Parameters (38)

Settings (5)

Commands (1)

AI Assistant

Here’s the like of JSON you get

{
    "ident": "352625333222111",
    "position.altitude": 273.61,
    "position.hdop": 0.7,
    "position.latitude": 49.069782,
    "position.longitude": 28.632826,
    "position.satellites": 18,
    "server.timestamp": 1650636570.426424,
    "timestamp": 1650636570.426424,
    "device.type.id": "Lantrix T1700",
    "channel.id": 1111,
    "protocol.id": "lantrix"
    "engine.ignition.status": true
    ...
}

How to consume this nice JSON

The easiest way is to make a REST API request like this

curl -X GET  --header 'Authorization: FlespiToken XXX' 'https://flespi.io/gw/devices/<device id>/messages'

Explore REST API Show more ways to consume data How to connect my Lantrix T1700 to flespi

How to send commands to Lantrix T1700?

You can send a specific command. Show all commands

You can use pre-defined settings to send instructions more conveniently. Show all settings

You can also

Modify messages

Add or remove parameters, inject data from LBS and reverse-geocoding services, etc.

Learn what plugins can do

Aggregate data

Determine trips and stops, catch events, detect geofence ins/outs, and more.

Learn about flespi analytics capabilities

Name

Type

Unit

Description

Sources

alarm.code.description

string

Description of the alarm code

Report RTH

alarm.id

string

Alarm ID

Report RTH

armed.status

boolean

Armed/disarmed status

Report RTH

backup.battery.connected.status

boolean

Backup battery is connected

Report RTH

battery.connected.status

boolean

Internal battery is connected

Report RTH

battery.voltage

number

volts

Internal battery voltage

Report RTH,
Report RTT

channel.id

number

ID of channel that received a message

device.id

number

ID of device that received a message

device.name

string

Name of device that received a message

device.type.id

number

ID of device type of device that received a message

din

number

Digital inputs bitmask

Report RTT

dout

number

Digital outputs bitmask

Report RTT

engine.ignition.status

boolean

Engine ignition or ACC status

Report RTT

event.enum

number

Protocol-specific event code

Report RTT

external.powersource.status

boolean

External power source connection status

Report RTH,
Report RTT

external.powersource.voltage

number

volts

External power voltage

Report RTH,
Report RTT

gnss.antenna.status

boolean

GNSS receiver antenna status

Report RTT

gnss.state.enum

number

Protocol-specific GNSS state code. May contain information about GNSS fix status, sleep status, ON/OFF, Overcurrent/protect state.

Report RTT

gsm.signal.level

number

percentage

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal strength level

Report RTH,
Report RTT

ident

string

Device unique identifier like serial number, IMEI, etc

intrusion.alarm

boolean

Intrusion detected by alarm panel

Report RTH

malfunction.indicator.status

boolean

Malfunction indicator status: true - active, false - not active

Report RTH

panel.bus.status

boolean

Alarm panel data bus connection status

Report RTH

peer

string

IP:port from which device connecting to the channel

position.direction

number

degrees

Heading angle at position detection moment

Report RTT

position.fix.age

number

seconds

Time since the last position fix

Report RTT

position.hdop

number

Horizontal dilution of precision

Report RTT

position.latitude

number

degrees

Latitude coordinate value

Report RTT

position.longitude

number

degrees

Longitude coordinate value

Report RTT

position.satellites

number

Quantity of satellites used to calculate coordinates for given position information

Report RTT

position.satellites.visible

number

The number of visible GPS satellites at the time the location was received

Report RTT

position.speed

number

km/h

Instant speed at position detection moment

Report RTT

protocol.id

number

ID of protocol

record.seqnum

number

Registered record sequence number

report.code

string

Report code

Report RTH,
Report RTT

server.timestamp

number

seconds

Timestamp when server received a message

siren.status

boolean

Siren activation status

Report RTH

timestamp

number

seconds

Message timestamp

Report RTH,
Report RTT

Title

Name

Description

Properties

Factory Reset

factory_reset

Reset device to factory defaults and erase pending events

Output Control

output_control

Control digital outputs (motor, buzzer, or auxiliary)

action: Action

output: Output

Query Extended Status

query_extended_status

Request extended status including batteries, GSM signal, and outputs (QTT command). Device responds with RTT data packet.

Query Position

query_position

Request current position from device (QPF command). Device responds with RPF data packet.

Restart Device

restart_device

Restart the device without losing settings

Title

Name

Description

Properties

Custom command Examples

custom

Send custom command to device

text: Command payload

Activate motor (T1700)

{"text":"!L0S341"}

Query position (T1700)

{"text":"QPF"}

Query status (TH100/TH200)

{"text":"QTH"}

Query extended status (T1700)

{"text":"QTT"}

Lantrix T1700

Here’s the like of JSON you get

How to consume this nice JSON

How to send commands to Lantrix T1700?

You can also

Modify messages

Aggregate data

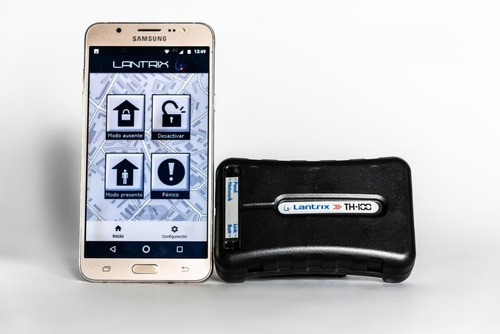

More devices from Lantrix (2)
