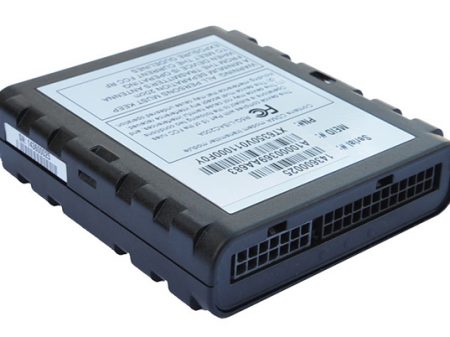

Xirgo XT-6300

The Xirgo XT-6300 is a versatile GPS vehicle tracker supporting LTE and 2G networks, designed for a wide range of vehicles. It features an integrated high-precision GPS engine, 3-axis accelerometer, motion detection, optional OBDII and CAN BUS interface, and a 1-Wire bus interface. Ideal for fleet management, it offers enhanced control and monitoring capabilities, with optional Bluetooth connectivity and an embedded cellular antenna for robust communication.

Usage specifics
Parameters (116)
Commands (1)
Xirgo XT-6300
Flespi parses telemetry data from your Xirgo XT-6300 into a standardized JSON and lets you send commands to Xirgo XT-6300 via API.

Here’s the like of JSON you get

{
    "ident": "352625333222111",
    "position.altitude": 273.61,
    "position.hdop": 0.7,
    "position.latitude": 49.069782,
    "position.longitude": 28.632826,
    "position.satellites": 18,
    "server.timestamp": 1650636570.426424,
    "timestamp": 1650636570.426424,
    "device.type.id": "Xirgo XT-6300",
    "channel.id": 1111,
    "protocol.id": "xirgo"
    "engine.ignition.status": true
    ...
}

How to consume this nice JSON

The easiest way is to make a REST API request like this
curl -X GET  --header 'Authorization: FlespiToken XXX' 'https://flespi.io/gw/devices/<device id>/messages'

How to send commands to Xirgo XT-6300?

You can send a specific command. Show all commands

You can also

Modify messages

Add or remove parameters, inject data from LBS and reverse-geocoding services, etc.
Learn what plugins can do

Aggregate data

Determine trips and stops, catch events, detect geofence ins/outs, and more.
Learn about flespi analytics capabilities
absolute.acceleration
number
g
Module of accelerometer vector
Event 4001,
Event 4001...4005,
Event 4002,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6090...6093,
Event 6092,
Event 6093
absolute.deceleration
number
g
Module of deceleration value from accelerometer
Event 4001,
Event 4001...4005,
Event 4002,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6090...6093,
Event 6092,
Event 6093
acceleration.end.direction
number
Acceleration end direction
Param ID 0x24 (Binary protocol)
acceleration.end.latitude
number
Latitude point at which the acceleration ended
Param ID 0x21 (Binary protocol)
acceleration.end.longitude
number
Longitude point at which the acceleration ended
Param ID 0x22 (Binary protocol)
acceleration.end.speed
number
Acceleration end speed
Param ID 0x23 (Binary protocol)
acceleration.end.timestamp
number
Acceleration end time
Param ID 0x20 (Binary protocol)
acceleration.start.direction
number
Acceleration start direction
Param ID 0x1D (Binary protocol)
acceleration.start.latitude
number
Latitude point from which acceleration began
Param ID 0x1A (Binary protocol)
acceleration.start.longitude
number
Longitude point from which acceleration began
Param ID 0x1B (Binary protocol)
acceleration.start.speed
number
Acceleration start speed
Param ID 0x1C (Binary protocol)
acceleration.start.timestamp
number
Acceleration start time
Param ID 0x19 (Binary protocol)
ain
number
volts
Voltage on the analog input
Event 4001,
Event 4002,
Event 4006,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6030...6032,
Event 6037...6043,
Param ID 0x66 (Binary protocol),
Param ID 0xc9 (Binary protocol)
average.fuel.consumption
number
liters/100km
Average fuel consumption
Event 4001,
Event 4001...4005,
Event 4002,
Event 4006,
Event 4012,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6005...6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6071,
Event 6073,
Event 6076,
Event 6090...6093,
Param ID 0x7D (Binary protocol)
backup.battery.voltage
number
volts
Backup battery voltage
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6020,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6079,
Event 6084,
Event 6085,
Event 6092,
Event 6093
battery.voltage
number
volts
Internal battery voltage
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x16 (Binary protocol),
Param ID 0xc8 (Binary protocol)
bluetooth.connected.status
boolean
Bluetooth connection status
Param ID 0x52 (Binary protocol)
can.accelerator.pedal.position
number
percentage
Accelerator pedal position read from CAN, index 1 - sensor D, index 2 - sensor E, etc
Param ID 0x7E (Binary protocol)
can.drive.gear.status
boolean
CAN drive gear is on
Param ID 0x79 (Binary protocol)
can.dtc
array
Diagnostic trouble code array read from CAN
Event 6044,
Event 6045
can.engine.coolant.level
number
percentage
Engine coolant level read from CAN
Event 4001,
Event 4002,
Event 4006,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6030...6032,
Event 6037...6043,
Param ID 0x86 (Binary protocol)
can.engine.coolant.pressure
number
kPa
Engine coolant pressure
Event 4001,
Event 4002,
Event 4006,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6030...6032,
Event 6037...6043,
Param ID 0x83 (Binary protocol)
can.engine.coolant.temperature
number
celsius
Engine coolant temperature read from CAN
Event 4001,
Event 4002,
Event 4006,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6030...6032,
Event 6037...6043,
Param ID 0x59 (Binary protocol)
can.engine.ignition.status
boolean
CAN engine ignition status
Param ID 0x2C (Binary protocol),
Param ID 0xd7 (Binary protocol)
can.engine.load.level
number
percentage
Calculated engine load level read from CAN
Event 4001,
Event 4002,
Event 4006,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6030...6032,
Event 6037...6043,
Param ID 0x7F (Binary protocol)
can.engine.motorhours
number
hours
Total engine motorhours (engine work time) read from CAN
Event 4001,
Event 4002,
Event 4006,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6030...6032,
Event 6037...6043,
Param ID 0x56 (Binary protocol),
Param ID 0xd6 (Binary protocol)
can.engine.oil.level
number
percentage
Engine oil level read from CAN
Event 4001,
Event 4002,
Event 4006,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6030...6032,
Event 6037...6043,
Param ID 0x81 (Binary protocol)
can.engine.oil.pressure
number
kPa
CAN Engine oil pressure
Param ID 0x82 (Binary protocol)
can.engine.oil.temperature
number
celsius
Engine oil temperature read from CAN
Event 4001,
Event 4001...4005,
Event 4002,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005...6008,
Event 6005...6014,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6079,
Event 6092,
Event 6093,
Param ID 0x7B (Binary protocol)
can.engine.rpm
number
rpm
Engine RPM read from CAN
Param ID 0x58 (Binary protocol)
can.engine.status
boolean
Engine is running status, read from CAN
Param ID 0x2C (Binary protocol)
can.engine.torque.level
number
percentage
Engine torque level read from CAN
Param ID 0x80 (Binary protocol)
can.fuel.consumed
number
liters
Fuel volume totally consumed by vehicle read from CAN
Param ID 0x55 (Binary protocol),
Param ID 0x5E (Binary protocol)
can.fuel.level
number
percentage
Fuel level in tank read from CAN
Param ID 0x5A (Binary protocol)
can.fuel.temperature
number
celsius
Fuel temperature read from CAN
Param ID 0x7A (Binary protocol)
can.gear
number
Current gear read from CAN. Numeric negative values are reverse gears, positive values are forward gears, zero is neutral
Param ID 0x79 (Binary protocol)
can.intake.air.temperature
number
celsius
Intake air temperature
Param ID 0x84 (Binary protocol)
can.intake.manifold.temperature
number
celsius
Intake manifold temperature
Param ID 0x85 (Binary protocol)
can.mil.status
boolean
Malfunction indicator lamp status read from CAN
Event 6045
can.neutral.gear.status
boolean
CAN neutral gear is on
Param ID 0x79 (Binary protocol)
can.park.gear.status
boolean
CAN park gear is on
Param ID 0x79 (Binary protocol)
can.powesource.takeof.duration
number
hours
PTO total duration read from CAN
Param ID 0x71 (Binary protocol)
can.pto.status
boolean
Power take-off status, read from CAN
Param ID 0x2C (Binary protocol)
can.reverse.gear.status
boolean
CAN reverse gear is on
Param ID 0x79 (Binary protocol)
can.seatbelt.status
boolean
Seatbelt status read from CAN, false - the belt is not buckled, true - the belt is buckled
Param ID 0xc7 (Binary protocol)
can.throttle.position
number
percentage
Absolute throttle position for corresponding throttle position sensor read from CAN
Param ID 0x7C (Binary protocol)
can.total.cruise.control.time
number
hours
Total driving time when cruise control is ON, read from CAN
Param ID 0x5C (Binary protocol)
can.total.driving.time
number
hours
Engine run time read from CAN
Param ID 0x5B (Binary protocol),
Param ID 0xD5 (Binary protocol)
can.total.engine.idle.time
number
hours
Time of engine running in idling status (vehicle stopped) since vehicle manufacture, read from CAN
Param ID 0x5D (Binary protocol)
can.vehicle.harsh.acceleration
number
km/h
Read from CAN. Acceleration of a vehicle
Param ID 0x93 (Binary protocol)
can.vehicle.harsh.braking
number
km/h
Read from CAN. Braking of a vehicle
Param ID 0x94 (Binary protocol)
can.vehicle.speed
number
km/h
Vehicle speed read from CAN
Param ID 0x57 (Binary protocol)
channel.id
number
ID of channel that received a message
device.firmware.version
string
Firmware revision
Param ID 0x73 (Binary protocol)
device.id
number
ID of device that received a message
device.imei
string
IMEI of the device
Param ID 0x95 (Binary protocol)
device.name
string
Name of device that received a message
device.type.id
number
ID of device type of device that received a message
din
number
Digital inputs bitmask
Event 4001,
Event 4001...4005,
Event 4002,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005...6008,
Event 6005...6014,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6079,
Event 6092,
Event 6093,
Param ID 0x0C (Binary protocol),
Param ID 0x53 (Binary protocol),
Param ID 0xd7 (Binary protocol)
dout
number
Digital outputs bitmask
Event 4001,
Event 4002,
Event 4006,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6030...6032,
Event 6037...6043,
Param ID 0x0D (Binary protocol)
driver.id
string
Driver identification card id
Param ID 0x0E (Binary protocol),
Param ID 0x0F (Binary protocol)
engine.ignition.status
boolean
Engine ignition or ACC status
Event 4001...4005,
Event 4006,
Event 4012,
Event 6001,
Event 6002,
Event 6005...6014,
Event 6015,
Event 6016...6020,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6079,
Event 6092,
Event 6093
engine.motorhours
number
hours
Total calculated engine motorhours
Event 4001,
Event 4002,
Event 4003,
Event 4004,
Event 6011,
Event 6012,
Event 6013,
Event 6014
engine.oil.pressure
number
Engine oil pressure
Event 4001,
Event 4002,
Event 4006,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6011,
Event 6012,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6030...6032,
Event 6037...6043
engine.rpm
number
rpm
Engine RPM read
Event 4001,
Event 4001...4005,
Event 4002,
Event 4006,
Event 4012,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6005...6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6071,
Event 6073,
Event 6076,
Event 6090...6093
event.enum
number
Protocol-specific event code
Param ID 0x04 (Binary protocol)
external.powersource.voltage
number
volts
External power voltage
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6020,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6079,
Event 6084,
Event 6085,
Event 6092,
Event 6093
external.powersource.voltage.status
boolean
Voltage of external supply is normal (true - inside the predefined range) or abnormal (false - outside of the predefined range)
Param ID 0x53 (Binary protocol)
fuel.level
number
percentage
Fuel level percentage
Event 4001,
Event 4001...4005,
Event 4002,
Event 4006,
Event 4012,
Event 6001...6003,
Event 6004,
Event 6005...6008,
Event 6005...6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6015,
Event 6016...6018,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6071,
Event 6073,
Event 6076,
Event 6090...6093
garmin.status
boolean
Garmin FMI module status
Param ID 0x52 (Binary protocol)
geofences.ids.bitmask
number
Geofences ids bitmask
Param ID 0xcc (Binary protocol),
Param ID 0xcd (Binary protocol)
gnss.fix.status
boolean
GNSS fix status
Param ID 0x52 (Binary protocol)
gnss.state.enum
number
Protocol-specific GNSS state code. May contain information about GNSS fix status, sleep status, ON/OFF, Overcurrent/protect state.
Event 4001,
Event 4001...4005,
Event 4002,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6090...6093,
Event 6092,
Event 6093
gnss.status
boolean
GNSS receiver on/off status
Param ID 0x52 (Binary protocol)
gps.state.enum
number
GPS state
Event 4001,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 6001,
Event 6002,
Event 6004,
Event 6005,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6020,
Event 6027,
Event 6030...6032,
Event 6035,
Event 6045,
Event 6048,
Event 6049,
Event 6070...6079,
Event 6084,
Event 6085
gsm.module.status
boolean
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) module is ON
Param ID 0x52 (Binary protocol)
gsm.network.type
string
The type of the Mobile network the device is currently registered to
Param ID 0xd4 (Binary protocol)
gsm.signal.level
number
percentage
Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal strength level
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093
gsm.signal.quality
number
The quality (bit error rate) of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal
Param ID 0x14 (Binary protocol)
harsh.acceleration.duration
number
seconds
Harsh acceleration event duration
Param ID 0x1F (Binary protocol)
ident
string
Device unique identifier like serial number, IMEI, etc
ignition.alarm
boolean
Ignition alarm
Param ID 0x53 (Binary protocol)
main.powersource.status
boolean
Main power supply connection status
Param ID 0x52 (Binary protocol),
Param ID 0xd7 (Binary protocol)
max.acceleration
number
g
Maximum accelerometer value
Param ID 0x1E (Binary protocol)
movement.status
boolean
Current movement state
Param ID 0x2C (Binary protocol),
Param ID 0x52 (Binary protocol),
Param ID 0xd7 (Binary protocol)
obd.state.enum
number
OBD communication status
Param ID 0x2D (Binary protocol)
peer
string
IP:port from which device connecting to the channel
position.altitude
number
meters
Altitude value for position
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6045,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x09 (Binary protocol)
position.direction
number
degrees
Heading angle at position detection moment
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x0A (Binary protocol)
position.fix.age
number
seconds
Time since the last position fix
Event 4001,
Event 4001...4005,
Event 4002,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6044,
Event 6045,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6090...6093,
Event 6092,
Event 6093
position.hdop
number
Horizontal dilution of precision
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6045,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x12 (Binary protocol)
position.latitude
number
degrees
Latitude coordinate value
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6045,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x07 (Binary protocol)
position.longitude
number
degrees
Longitude coordinate value
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6045,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x08 (Binary protocol)
position.satellites
number
Quantity of satellites used to calculate coordinates for given position information
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6045,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x13 (Binary protocol)
position.speed
number
km/h
Instant speed at position detection moment
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x0B (Binary protocol)
protocol.id
number
ID of protocol
record.seqnum
number
Registered record sequence number
Param ID 0x05 (Binary protocol)
report.code
string
Report code
sensor.int16.value
number
User-defined 2 bytes sensor signed value stored as int16, indexed parameter
Param ID 0x42...0x49 (Binary protocol),
Param ID 0xB3...0xBA (Binary protocol)
sensor.int32.value
number
User-defined 4 bytes sensor signed value stored as int32, indexed parameter
Param ID 0x4A...0x51 (Binary protocol),
Param ID 0xBB...0xC2 (Binary protocol)
sensor.int8.value
number
User-defined 1 byte sensor signed value stored as int8, indexed parameter
Param ID 0x32...0x41 (Binary protocol),
Param ID 0xA3...0xB2 (Binary protocol)
sensor.temperature
number
celsius
Temperature sensor value
Param ID 0x30 (Binary protocol),
Param ID 0x31 (Binary protocol)
server.timestamp
number
seconds
Timestamp when server received a message
sleep.mode.status
boolean
Device is in sleep mode
Param ID 0x53 (Binary protocol)
timestamp
number
seconds
Message timestamp
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6045,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x06 (Binary protocol)
total.mileage
number
km
Total mileage
Param ID 0x54 (Binary protocol)
trip.mileage
number
km
Distance driven since engine start
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6008,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6023...6025,
Event 6027,
Event 6030...6032,
Event 6034,
Event 6035,
Event 6036,
Event 6037...6043,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093,
Param ID 0x10 (Binary protocol),
Param ID 0x2E (Binary protocol),
Param ID 0x88 (Binary protocol)
vehicle.battery.voltage
number
Vehicle battery voltage
Param ID 0x17 (Binary protocol)
vehicle.mileage
number
km
Total calculated mileage
Param ID 0x18 (Binary protocol)
vehicle.state.bitmask
number
Vehicle state flags bitmask
Param ID 0x52 (Binary protocol)
vehicle.vin
string
VIN of vehicle
Event 4006,
Event 6015,
Param ID 0x65 (Binary protocol)
vibration.alarm
boolean
Vibration alarm event
Param ID 0x53 (Binary protocol)
wake.reason
number
Wake reason
Param ID 0x53 (Binary protocol)
x.acceleration
number
g
Accelerometer value X
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6027,
Event 6030...6032,
Event 6035,
Event 6036,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093
y.acceleration
number
g
Accelerometer value Y
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6027,
Event 6030...6032,
Event 6035,
Event 6036,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093
z.acceleration
number
g
Accelerometer value Z
Event 4001,
Event 4001...4005,
Event 4002,
Event 4003,
Event 4004,
Event 4005,
Event 4006,
Event 4012,
Event 6001,
Event 6001...6003,
Event 6002,
Event 6004,
Event 6005,
Event 6005...6010,
Event 6005...6014,
Event 6009,
Event 6010,
Event 6011,
Event 6012,
Event 6012...6014,
Event 6013,
Event 6014,
Event 6015,
Event 6016...6018,
Event 6016...6020,
Event 6027,
Event 6030...6032,
Event 6035,
Event 6036,
Event 6044,
Event 6048,
Event 6049,
Event 6070...6076,
Event 6070...6079,
Event 6071,
Event 6073,
Event 6076,
Event 6079,
Event 6084,
Event 6085,
Event 6090...6093,
Event 6092,
Event 6093
Properties
Custom SMS command
custom_sms
Send custom command to device via SMS
command: Command in text
Query device info
{"command":":qdi"}
Query GPS device info
{"command":":qdi gps"}

More devices from Xirgo Technologies (13)
