Segway Ninebot ZK601LE

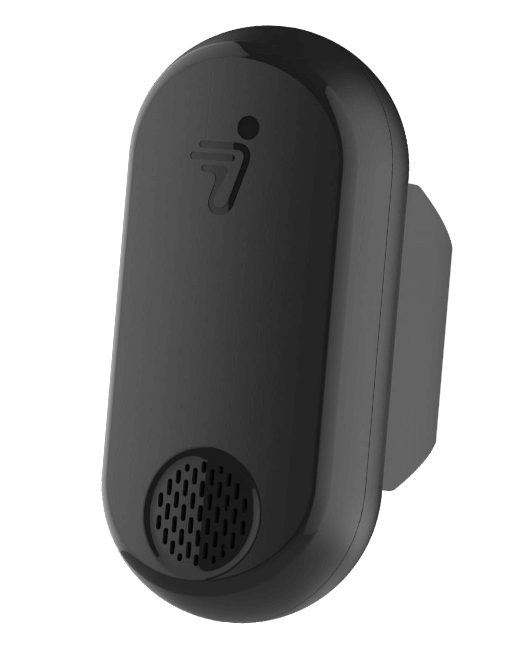

Segway Ninebot ZK601LE is an IoT device for shared scooter management. The device allows to lock/unlock, power on /off, turn on/off the throttle, and switch between different riding modes, etc. You can also monitor the state of the scooter through its communications with the server, such as sending alarms, firmware version information, battery temperatures, etc. It also has auxiliary features like prompt voice, superior waterproof design (IP67), and a built-in 1000 mAh battery.

Make your Segway Ninebot ZK601LE devices a part of any infrastructure by connecting them via flespi telematics hub. Manage the device settings using flespi device management platform. Learn how to configure Segway Ninebot ZK601LE with flespi.

Protocol: segway-ninebot Manufacturer: Segway-Ninebot Change log: segway-ninebot

Usage specifics

Parameters (55)

Settings (16)

Commands (1)

Here’s the like of JSON you get

{
    "ident": "352625333222111",
    "position.altitude": 273.61,
    "position.hdop": 0.7,
    "position.latitude": 49.069782,
    "position.longitude": 28.632826,
    "position.satellites": 18,
    "server.timestamp": 1650636570.426424,
    "timestamp": 1650636570.426424,
    "device.type.id": "Segway Ninebot ZK601LE",
    "channel.id": 1111,
    "protocol.id": "segway-ninebot"
    "engine.ignition.status": true
    ...
}

How to consume this nice JSON

The easiest way is to make a REST API request like this

curl -X GET  --header 'Authorization: FlespiToken XXX' 'https://flespi.io/gw/devices/<device id>/messages'

Explore REST API Show more ways to consume data How to connect my Segway Ninebot ZK601LE to flespi

How to send commands to Segway Ninebot ZK601LE?

You can send a specific command. Show all commands

You can use pre-defined settings to send instructions more conveniently. Show all settings

You can also

Modify messages

Add or remove parameters, inject data from LBS and reverse-geocoding services, etc.

Learn what plugins can do

Aggregate data

Determine trips and stops, catch events, detect geofence ins/outs, and more.

Learn about flespi analytics capabilities

Name

Type

Unit

Description

Sources

backup.battery.voltage.status

boolean

Backup battery voltage if normal (true - inside the predefined range) or abnormal (false - outside of the predefined range)

battery.charging.cycles

number

Number of charges/discharges of the battery

battery.charging.status

boolean

Battery charging status

battery.connected.status

boolean

Internal battery is connected

battery.level

number

percentage

Internal battery level

battery.lock.status

boolean

Battery lock locked/unlocked status

battery.temperature

number

celsius

Battery temperature

battery.voltage

number

volts

Internal battery voltage

bluetooth.mac.address

string

Bluetooth MAC address

bms.serial.number

string

BMS (Battery Management System) serial number

cable.lock.status

boolean

Peripherial device cable lock status

channel.id

number

ID of channel that received a message

controller.voltage

number

volts

Driving voltage of the controller

device.id

number

ID of device that received a message

device.name

string

Name of device that received a message

device.serial.number

string

Device serial number

device.type.id

number

ID of device type of device that received a message

disassemble.alarm

boolean

Disassemble alarm event

ecu.error.code

string

ECU error code

event.enum

number

Protocol-specific event code

external.battery.temperature

number

celsius

Indexed temperature of external battery

fall.alarm.status

boolean

Fall alarm status

firmware.update.code

number

Firmware update confirmation code

gsm.mcc

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) country code

gsm.mnc

number

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) code

gsm.operator.code

string

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) operator code, which is MCC joined with MNC

gsm.signal.level

number

percentage

Mobile network (GSM, 3G, 4G, LTE, 5G, ...) signal strength level

gsm.sim.iccid

string

Integrated Circuit Card Id of SIM card of the Mobile network (GSM, 3G, 4G, LTE, 5G, ...)

ident

string

Device unique identifier like serial number, IMEI, etc

illegal.movement.alarm

boolean

Illegal movement alarm event

indication.mode

string

Position indication mode: A - autonomous, D - differential, E - estimate, N - invalid data

left.turm.lamp.status

boolean

Left turn lamp status - true - on, false - off

lock.status

boolean

Lock status

message.type

string

Message type

peer

string

IP:port from which device connecting to the channel

position.altitude

number

meters

Altitude value for position

position.hdop

number

Horizontal dilution of precision

position.latitude

number

degrees

Latitude coordinate value

position.longitude

number

degrees

Longitude coordinate value

position.satellites

number

Quantity of satellites used to calculate coordinates for given position information

position.speed

number

km/h

Instant speed at position detection moment

position.valid

boolean

Is position information accurate and valid for given timestamp

protocol.id

number

ID of protocol

reboot.event

boolean

Device reboot event

remaining.range

number

Current remaining range

right.turm.lamp.status

boolean

Right turn lamp status - true - on, false - off

scooter.battery.level

number

percentage

Scooter battery level

server.timestamp

number

seconds

Timestamp when server received a message

software.version

string

Software version string

speed.mode

number

Current mode of scooter 1:low speed 2:medium speed 3:high speed

timestamp

number

seconds

Message timestamp

trip.driving.time

number

seconds

Single riding time

trip.duration

number

seconds

Trip duration

trip.mileage

number

Distance driven since engine start

vendor.code

string

Vendor identification string code

Title

Name

Description

Properties

C0 Unlock the Battery Cover

c0_zk601le

action: Action

C5 Ambient light control

c5_zk601le

mode: Ambient light work mode

color: Ambient light color

D1 Location tracking command

d1_zk601le

lock_interval: Lock status upload interval

unlock_interval: Unlock status upload interval

I0 Acquire SIM card ICCID number

L5 State of Peripheral Device

operation: Operation

R0 Unlocking/Lock operation request command

r0_zk601le

Send R0 command (timestamp appended automatically). After device response L0 or L1 command will be sent by server automatically.

lock: Lock/Unlock

user_id: User ID

key_time: Key effective time

S10 IoT Device Setting 3

s10

left_adc_threshold: Left brake ADC value jump threshold

right_adc_threshold: Right brake ADC value jump threshold

brake_anomaly_detection: Brake & accelerator ADC value anomaly detection

accelerator_adc_threshold: Accelerator ADC value jump threshold

left_adc_fallback_threshold: Left brake ADC value fall back to normal threshold

right_adc_fallback_threshold: Right brake ADC value fall back to normal threshold

accelerator_adc_fallback_threshold: Accelerator ADC value fall back to normal threshold

S2 Turn on/off control of scooter

enable: Enable

S4 Scooter setting

s4_zk601le

cruise_control: Cruise control setting

low_speed_limit: Low speed mode speed limit value

high_speed_limit: High speed mode speed limit value

inch_speed_display: Inch speed display

medium_speed_limit: Medium speed mode speed limit value

S5 IoT device settings

s5_zk601le

acc_sens: Accelerometer sensitivity

upload_s6: Status for upload scooter info (S6)

heartbeat_interval: Heartbeat upload interval

s6_upload_interval: Scooter information (S6) upload interval

S6 Obtain scooter information

Send S6 command: ask scooter for telemetry inforamtion.

S7 Scooter setting

s7_zk601le

mode: Mode setting

headlight_switch: Headlight switch

taillight_control: Tail light control

throttle_response: Throttle response

headlight_flashing: Head lights flashing

S8 Obtain scooter information

S9 IoT Device Setting 2

on_wait_time: Time to turn modem on

show_battery: Show the battery volume

wait_timeout: Wait timeout for lock response

turn_off_modem: Turn off modem

emm_codes_filter: EMM cause codes carrier filter

lock_while_riding: Enable lock while riding

long_offline_lock: To lock due to long time offline

show_battery_in_locked: Show the battery volume in locked

invalid_continuous_movement_alarm: Invalid continuous movement alarm report interval

V0 Voice Broadcast Command

content: Content

V1 Device Audio Configuration

v1_zk601le

mode: Audio Work Mode

normal_volume: Normal volume

abnormal_volume: Abnormal volume

Title

Name

Description

Properties

Custom command Examples

custom

Send custom command to device. Format for R0 and L0 commands : 0xFFFF*SCOS,OM,{ident},{instruction_type},{payload},# Format for other commands with payload: 0xFFFF*SCOS,OM,{ident},{instruction_type},{payload}# Format for commands with no payload: 0xFFFF*SCOS,OM,{ident},{instruction_type}# Note: The following settings are saved after power down.

payload: Comma separated list of parameters to send as payload

instruction_type: 2 letter instruction type

R0 Unlocking/Lock operation request command

{"payload":"0,20,1234","instruction_type":"R0"}

L0 Unlocking command, e.g. 255 value received as key in R0 command

{"payload":"255,1234","instruction_type":"L0"}
